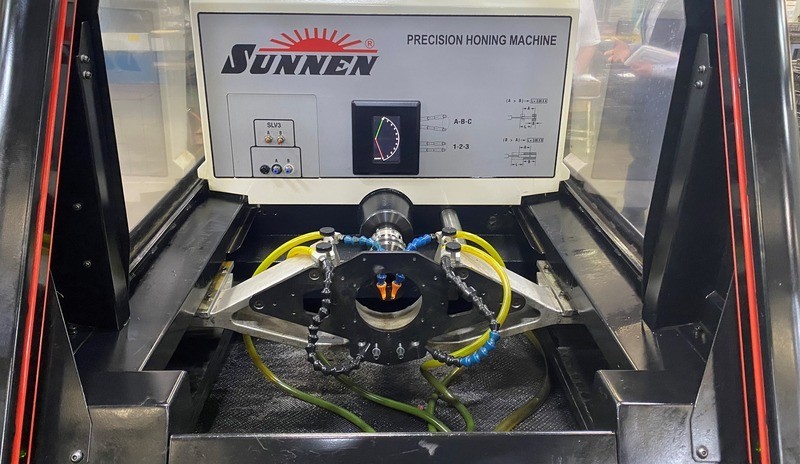

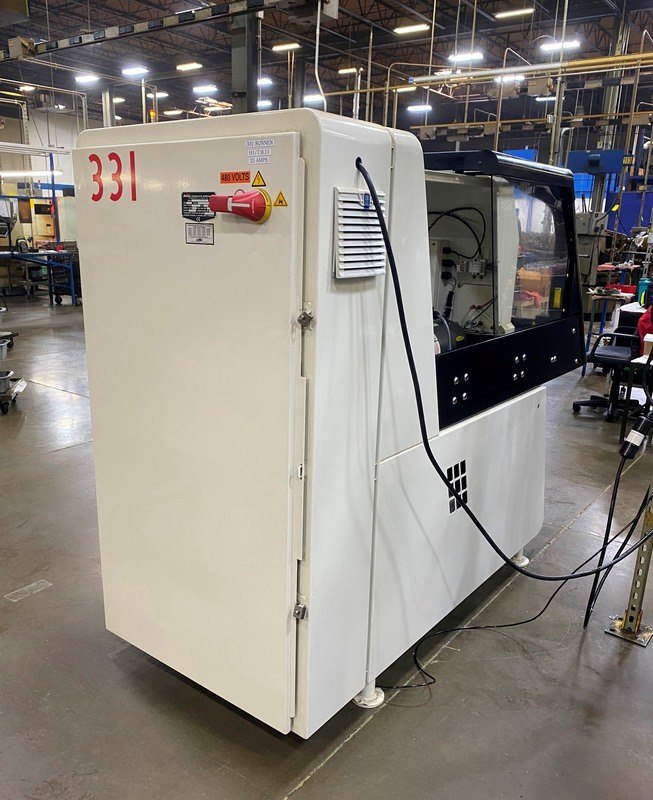

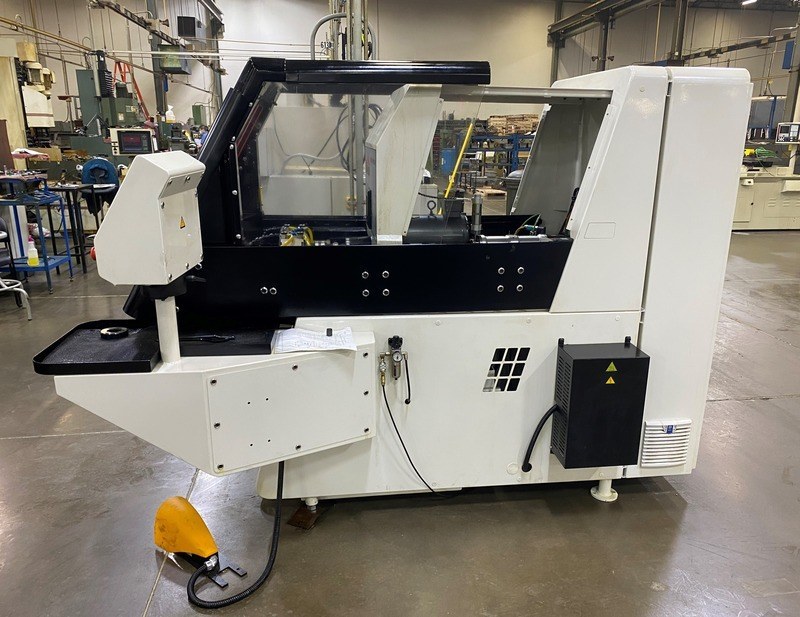

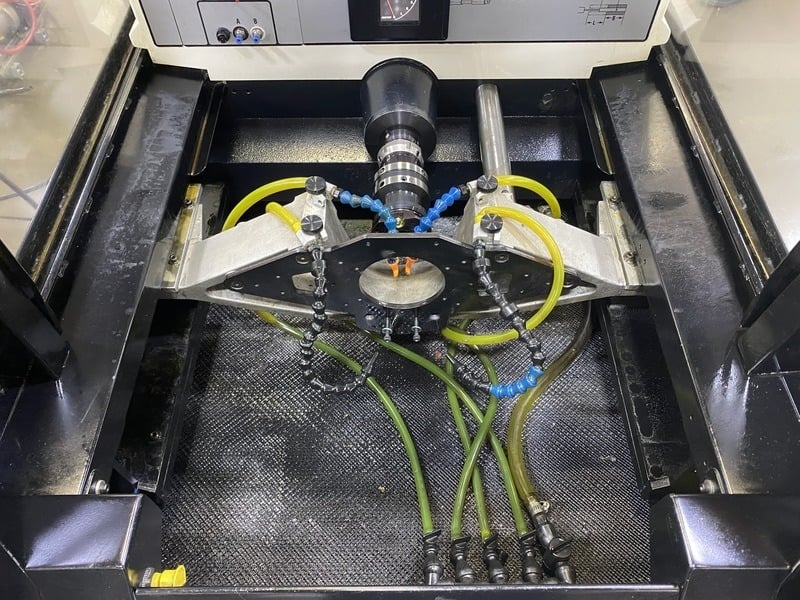

Sunnen SH 4000
New – 2018
Hours – 24.9
SPECIFICATIONS:
Diameter Range (ID)…………0.060″ – 6.5″
Stroker Carriage Travel…………0.24″ – 15.43″
Spindle:
– Speed…………200 – 3,000 RPM
– Power…………4.1 kW (5.5 hp)

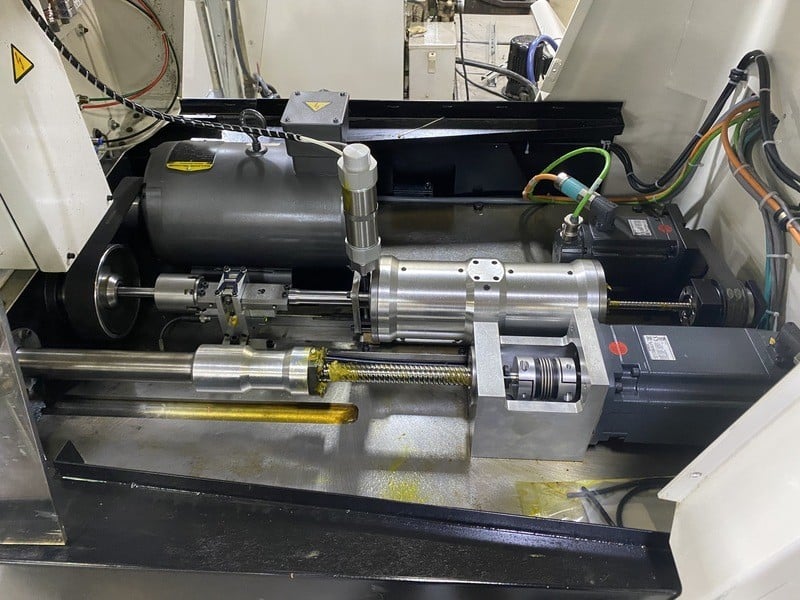

Stroker:
– Rate – Length Dependant…………10 – 550 SPM
– Power – Maximum…………2.5 kW servo (3.4 hp)
Voltages…………460 VAC/60 Hz/3 Phase: FLA 18.2
Machine Dimensions – Catalog…………129.6″ (L) x 82.4″ (W)
Machine Weight (Including Coolant Cart) – Catalog…………2,500 Lbs.
Sunnen SH 4000 EQUIPPED WITH:

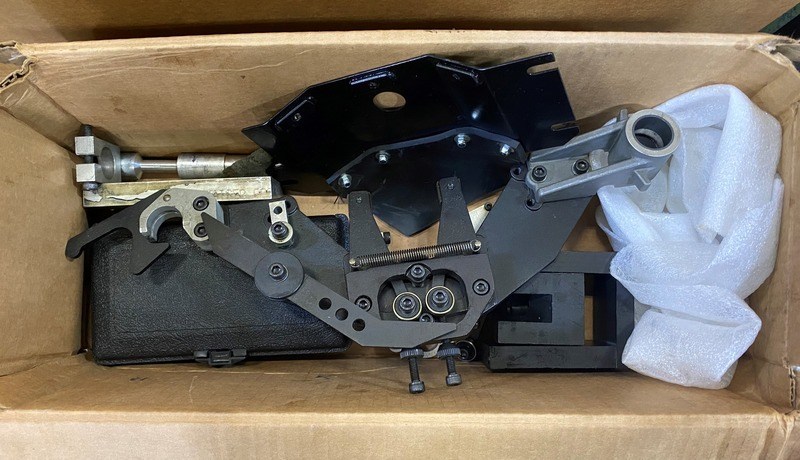

CGT Tooling Package (Kross Grind Honing Package – Paid $11,000)

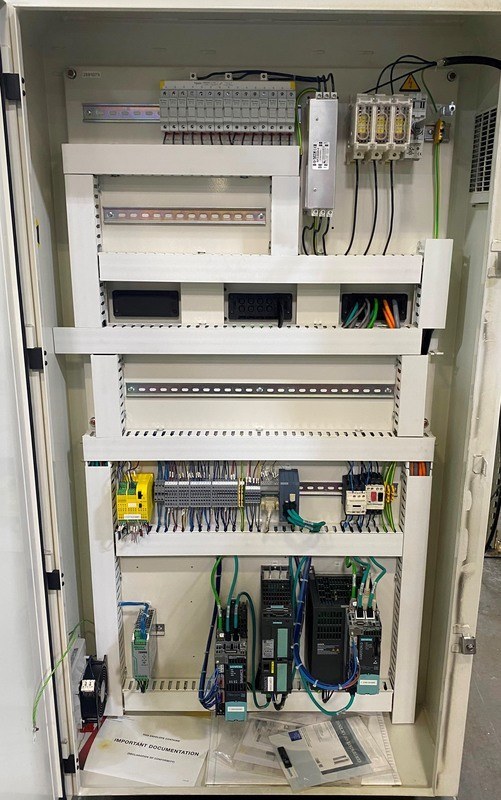

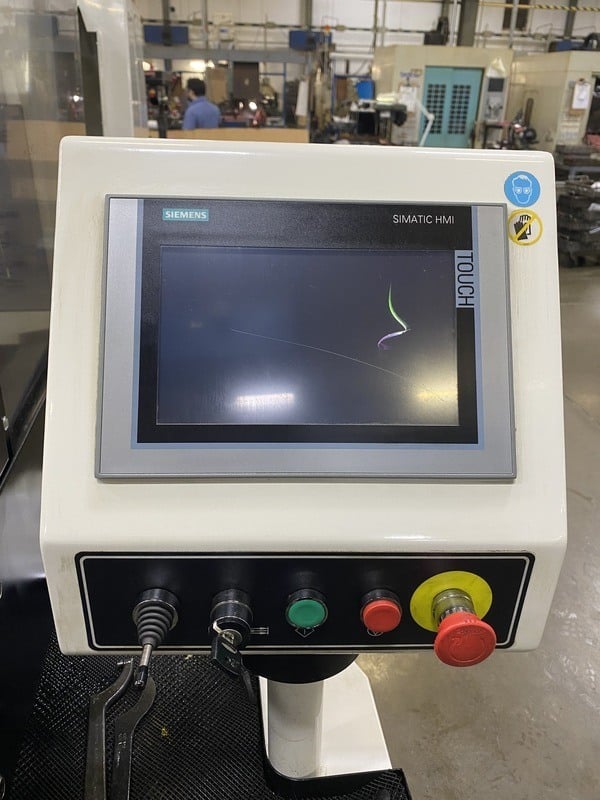

Siemens PLC w/Large Color HMI (All Machine Settings Done through HMI – Set-Up Program Storage)
Programmable Servo Feed Force (Two Feed Force Settings for Each Set-Up)
USB Port (For Downloading Machine Programs)
55 Gal. Capacity Rollout Coolant Cart, Pressurized Cartridge Filtration
Catalog Specifications Subject to Verification*
Metal honing on a Sunnen SH 4000 is a precision machining process used to improve the surface finish and dimensional accuracy of metal parts. It involves the use of abrasive stones or diamond tools to remove small amounts of material from the surface, resulting in a smoother and more refined finish.
The metal honing process begins with securing the workpiece, which can be a variety of metal components such as cylinders, bores, gears, or tubes. The honing tool, mounted on a spindle, is then passed back and forth along the surface of the workpiece while rotating or reciprocating. The abrasive stones or diamond tools mounted on the honing tool on a Sunnen SH 4000 remove material through a combination of cutting and grinding action.
Metal honing offers several benefits in manufacturing and metalworking industries. Firstly, it improves the surface finish by eliminating roughness, machining marks, or imperfections. This enhances the aesthetic appeal of the part and can also improve functionality by reducing friction and wear.
Secondly, metal honing can achieve tight tolerances and precise dimensions. The honing process on a Sunnen SH 4000 allows for fine control over the amount of material removed, ensuring that the final dimensions of the part meet the desired specifications. This is particularly important for parts that require a high level of accuracy, such as engine cylinders or hydraulic components.
