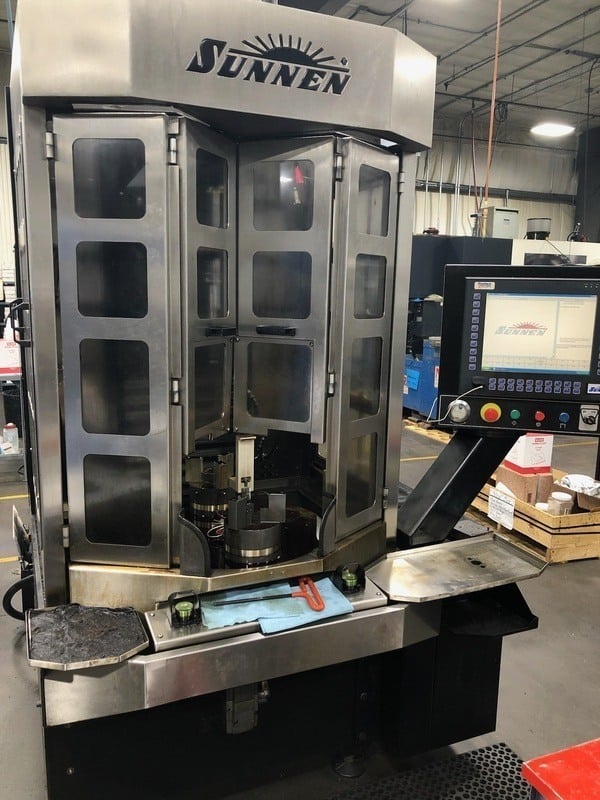

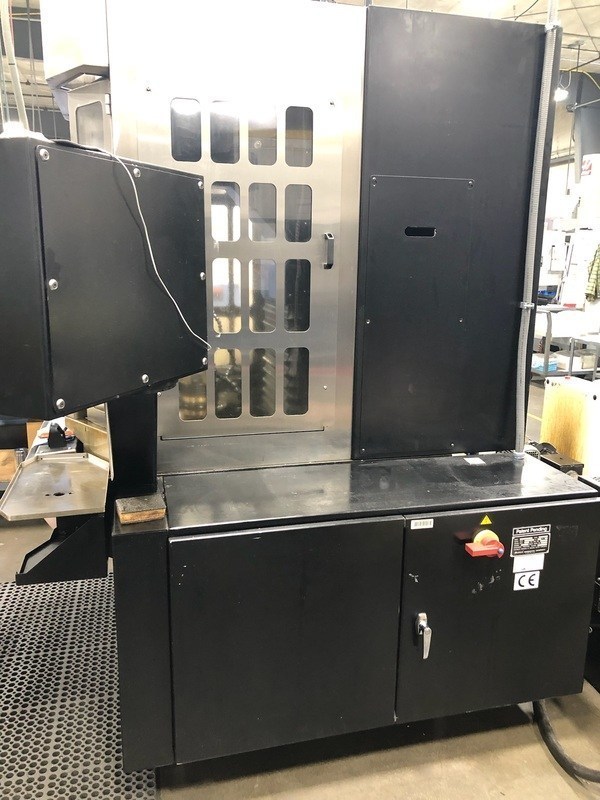

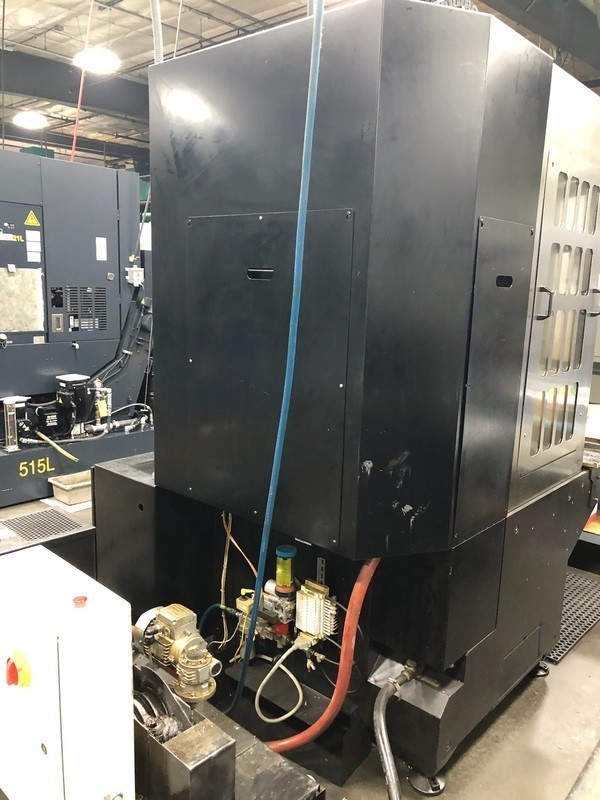

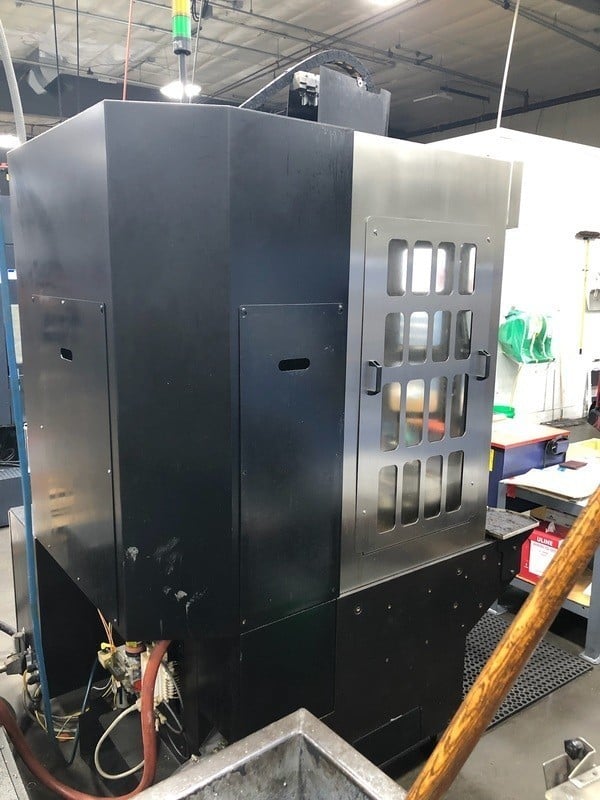

Sunnen SV 1015-S1
New – 2008
S/N – 1F1-1003
SPECIFICATIONS:
Diameter Range – (I.D.)…………0.120 – 2.560″ (3 – 65 mm)
Rotary Table – Diameter…………18″ (457 mm)
Workpiece Weight – Maximum…………250 Lbs. (115 Kg)
Workpiece Length – Maximum…………9.8″ (250 mm)
Carriage Travel…………24.8″ (630 mm)
Carriage Speed…………2 – 2,000 ipm (.001 – .85 mps)
Reciprocation Speed – Stroke…………30 – 400 spm
Rotary Air Union – Positions…………12
Column Motor…………10 HP (7.5 Kw)
Spindle Speeds………..100 – 4000 RPM
Spindle Motor…………7.5 HP (5.5 Kw)
Electrics…………460V / 3Ph / 60Hz
Dimensions – Actual…………83″ (L-R) x 86″ (F-B) x 114″ (H)
Weight – Approximate…………5,000 Lbs.
Sunnen SV 1015-S1 EQUIPPED WITH:
Infinitely Variable Servo Driven Bi-Directional Indexer
Sunnen Windows Based PC (HMI) Industrial Touch Screen Control Panel

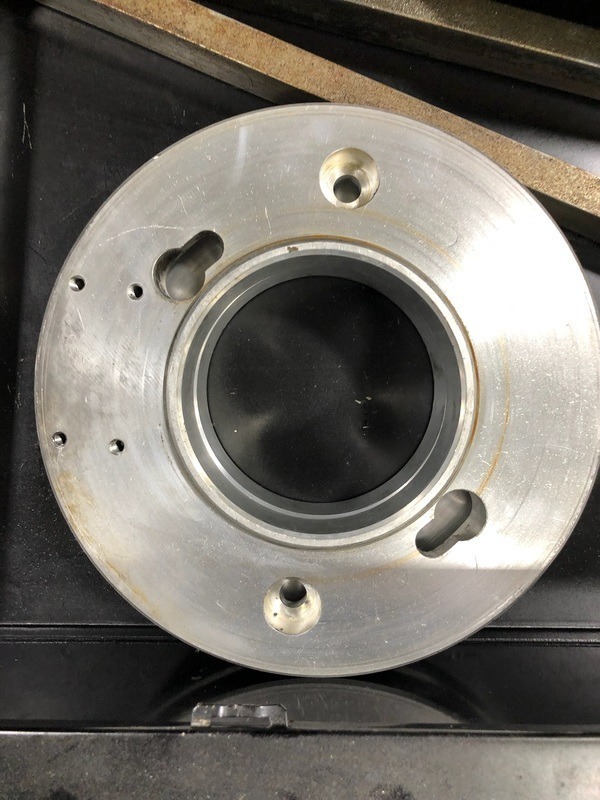

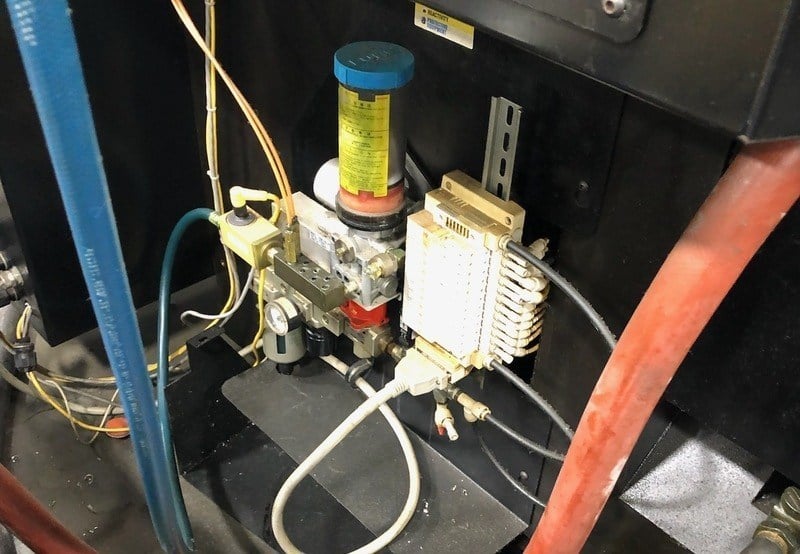

Northfield Pneumatic Work-holding System

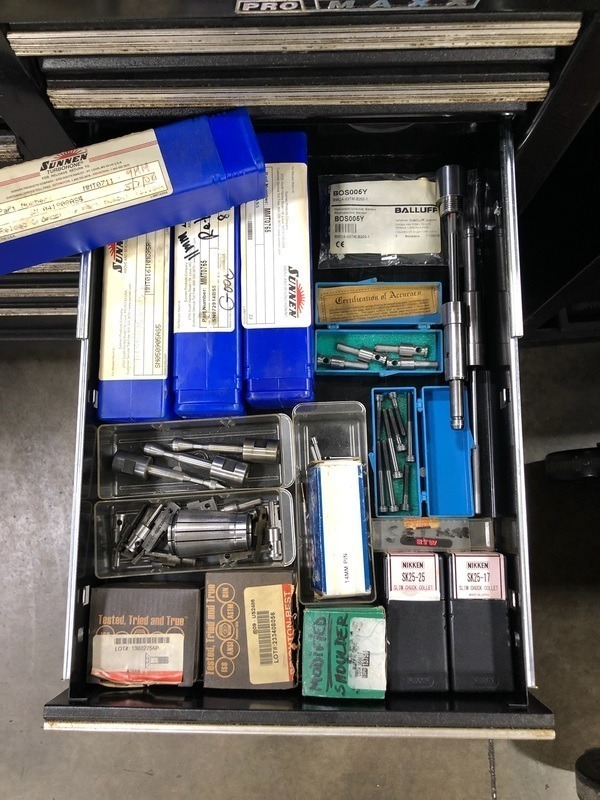

Sunnen MMT Mandrels

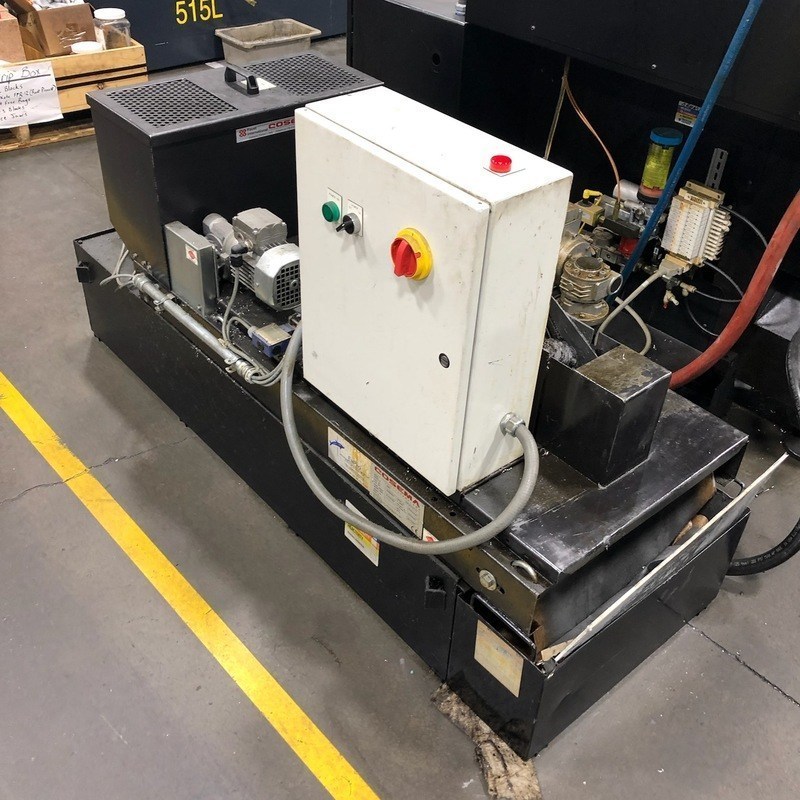

Facet International Cosema Model FB1, Coolant Filtration System W/ Paper Media
and Magnetic Drum
Dual Palm Button Control
*Preliminary Specifications, Subject to Verification.
CNC vertical honing with a Sunnen SV is a specialized machining process used to achieve precise surface finishes and dimensions in cylindrical workpieces. This honing method is specifically performed on vertical honing machines that are equipped with CNC (Computer Numerical Control) technology, providing automated control and precision.

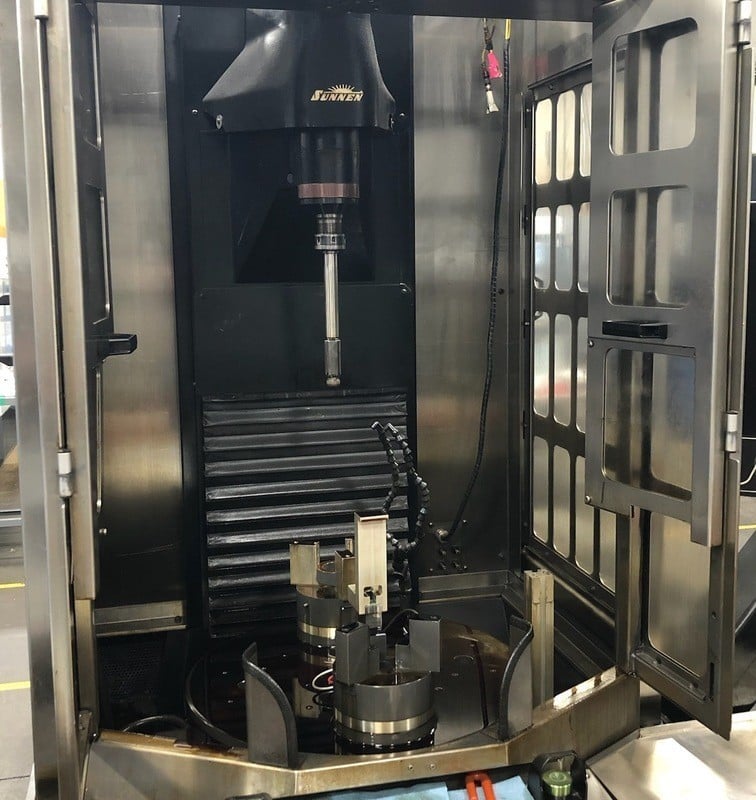

During CNC vertical honing, the workpiece, typically a cylinder or bore, is secured vertically and held in place on the Sunnen SV. The honing tool, attached to the vertical spindle, is then programmed to move in a controlled manner along the length of the workpiece. The tool’s movement, speed, and pressure are precisely regulated by the CNC system.
The CNC vertical honing process with a Sunnen SV offers several advantages. Firstly, it ensures consistent and repeatable results, as the honing parameters can be programmed and replicated accurately. This eliminates human error and enhances the overall quality and uniformity of the honed surfaces.
Secondly, CNC vertical honing with a Sunnen SV allows for improved efficiency and productivity. The automation provided by the CNC technology reduces manual intervention, speeds up the honing process, and allows for simultaneous honing of multiple workpieces.
