Superabrasives EX50 (Max Engineering) Diamond/CBN Wheel Profile Dresser & Balancer - #49977

Liberty Machine # 49977 Category Tags ,

Superabrasives EX50 (Max Engineering EX50) Diamond/CBN Grinding Wheel Optical
profile dresser and balancing system. Easily generates concave or convex
radii up to 4" (larger possible via coordinate grinding). Travel capability
of the grinding spindle eliminates the pluge/redress plunge/redress cycle by
allowing a straight wheel to do the work maintaining a straight, flat form.

New - 1998
Serial No. 0698-0019

SPECIFICATIONS:
Grinding Wheel Capacity for Dressing & Balancing:
- OD..............................................................Up To 16"
- Width............................................................Up To 4"
Travels:
- Dressing Unit Swivel Range.......................................200 Deg.
- T-Axis (Oscillating)...................................................4"
Spindle Speeds - Infinitely Variable:
- Grind.....................................................Up To 3,600 RPM
- Work......................................................Up To 1,800 RPM
Spindle Motors:
- Work.................................................................1 HP
- Grind................................................................1 HP
Dimensions - Approximate:
- Machine................................................60" x 62" x 64"(H)

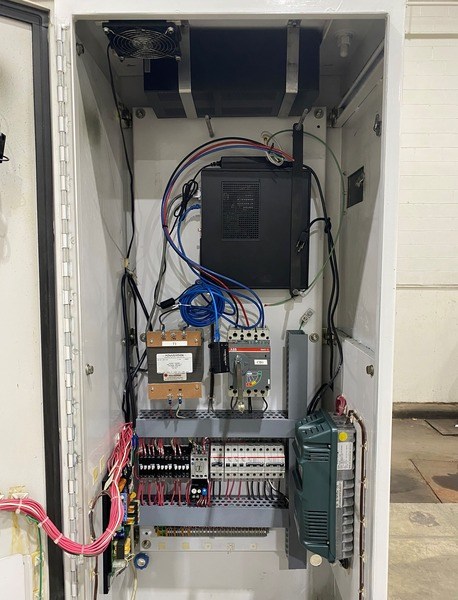

- Electrical Cabinet.....................................21" x 24" x 72"(H)
Weight - Approximate.............................................3,000 Lbs.

EQUIPPED WITH:

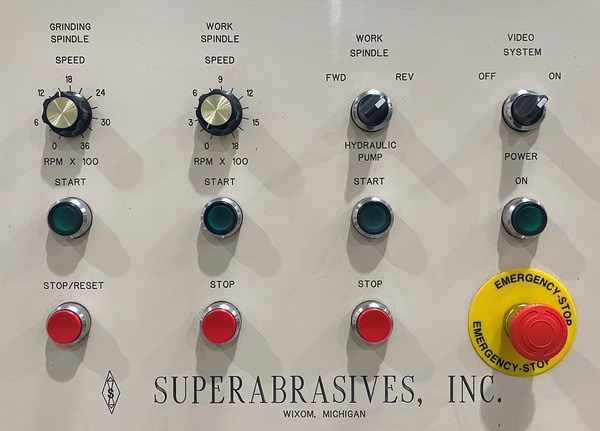

Superabrasives Control

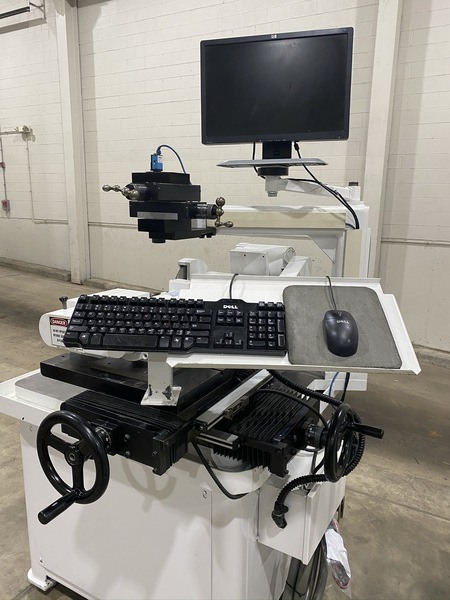

Vision System

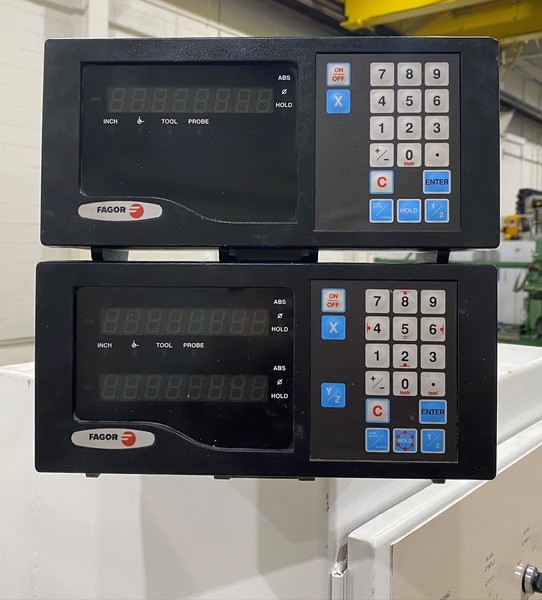

(2) Fagor DROs'
X-Axis Fine Feed Assembly
Locking Y-Axis
Slide Covers for Dust Protection
Thru-Hole in Radial Arm for Dust Collection (Dust Collector Not Included)
Large Pre-loaded Precision Ground Bearings for Radial Arm Assembly
Hydraulic Disc Brake for Locking Radial Arm Assembly
Operators Manual

*Preliminary Specifications Subject to Verification
