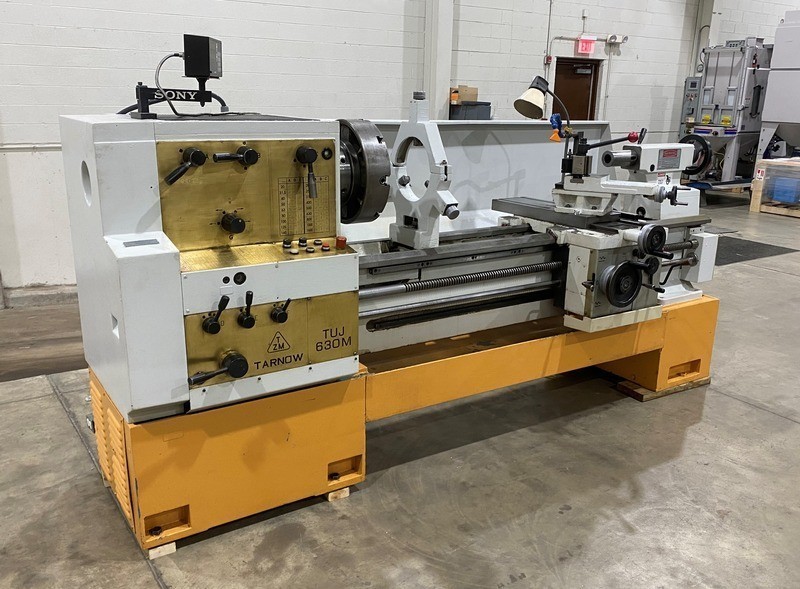

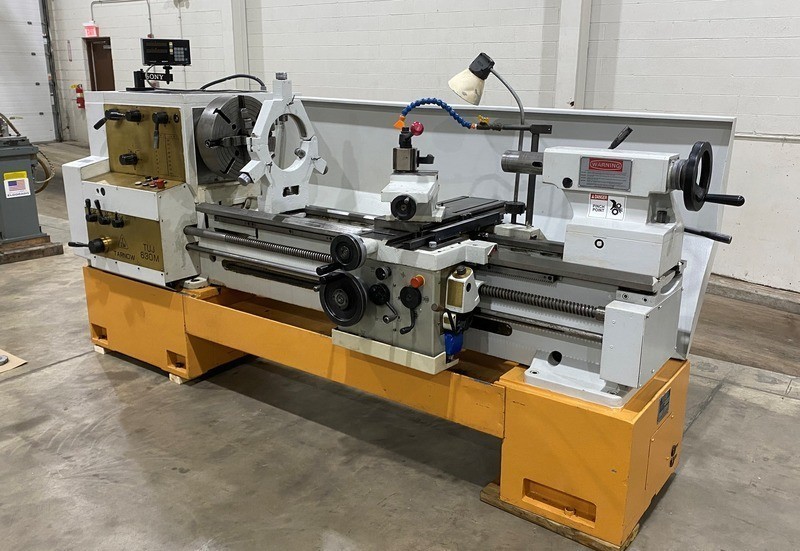

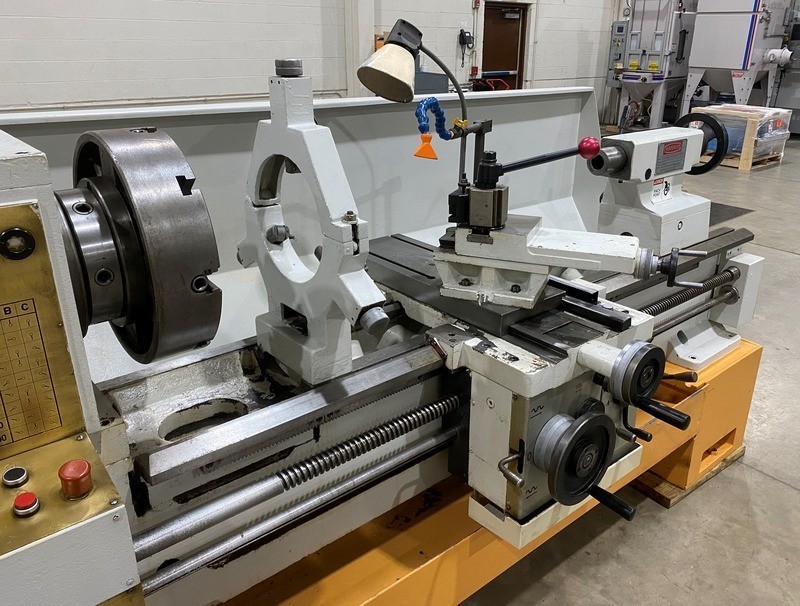

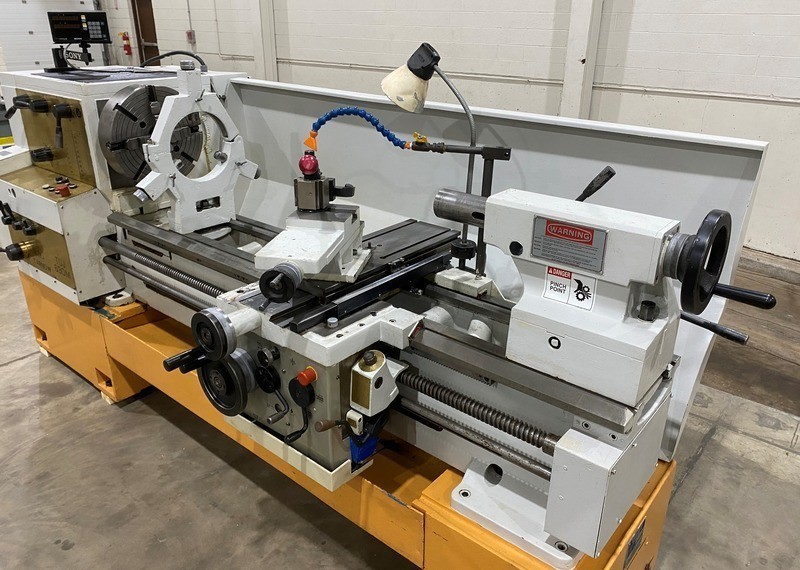

Tarnow Lathe Model TUJ 630 M

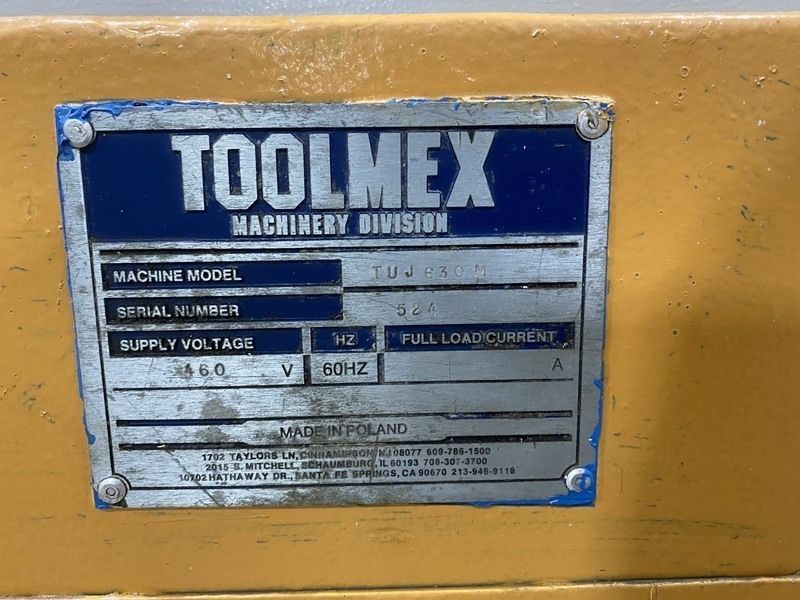

Serial No. 524
New – 2004
SPECIFICATIONS:
Working Area:
– Distance Between Centers…………56″
– Turning Length – Maximum…………53″
– Swing Over Bed…………25″
– Swing Over Cross Slide…………17″
– Swing In Gap…………34″
– Length Of Gap In Front of Driver Plate…………10″
– Weight Of Part In Centers – Maximum…………660 Lbs.
– Weight Of Part Fixed In Chuck And Supported By Steady Rest – Maximum…………1,320 Lbs.
– Weight Of Part Fixed In Chuck And Supported By Steady Rest…………1,760 Lbs.

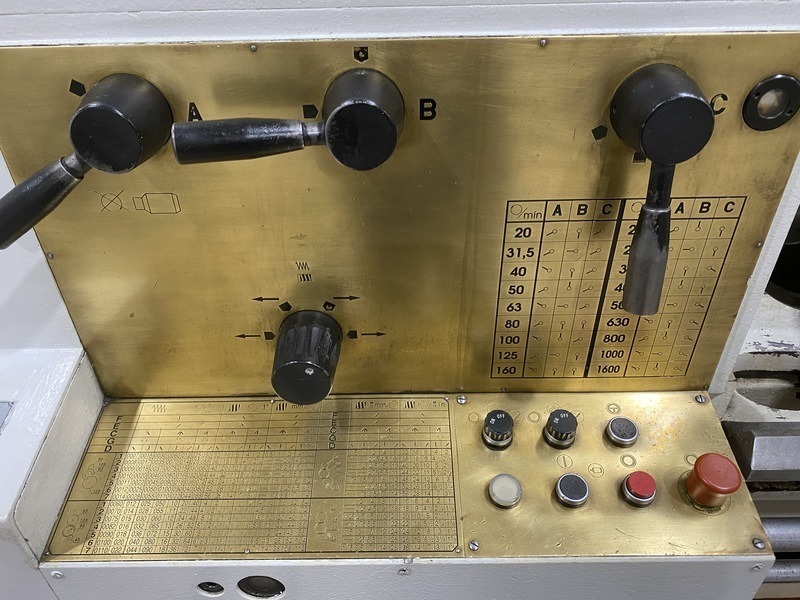

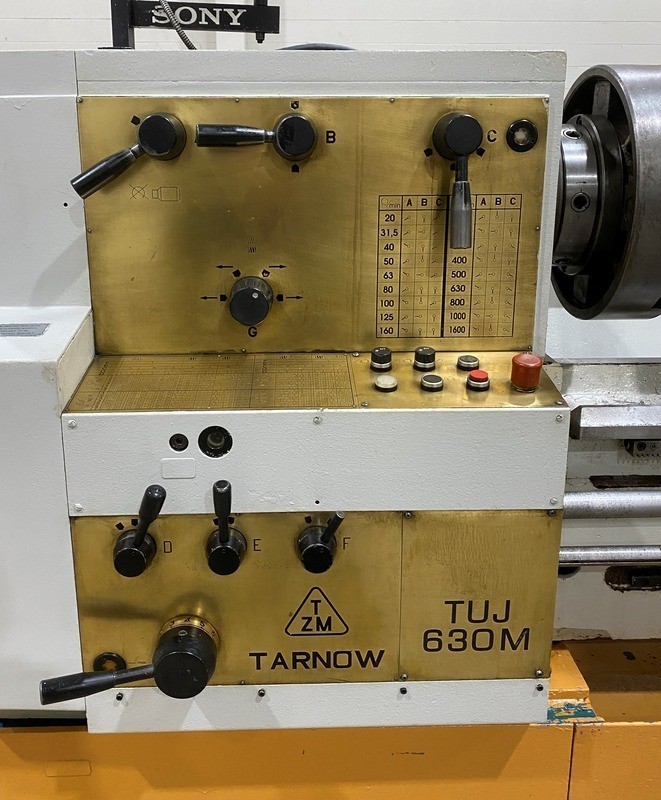

Tarnow Lathe TUJ630M Headstock:
– Spindle Bore…………3.5″
– Spindle Speed Range (18)…………20 – 1600 RPM
– Main Drive Motor…………15 HP
Tailstock:
– Ouill Travel…………7″
– Quil Inner Tapper…………#5
Feeds:
– Range Of Longitudinal Feed Rates…………0.0015 – 0.17 in/rot
– Range of Transversal Feed Rates…………0.00075 – 0.085 in/rot
Threading Range
– Metric………..0, 25 – 28 mm
– Standard…………112 – 1 t.p.i.
Dimensions – Catalog…………129″ x 60″ x 55″H
Weight – Catalog…………8,900 Lbs.
Equipped With:

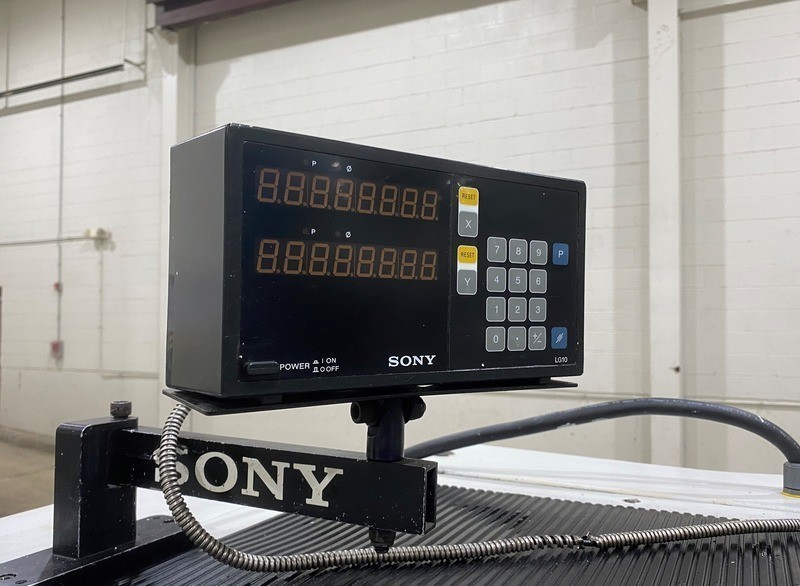

Sony LG10, 2-Axis Digital Read-Out

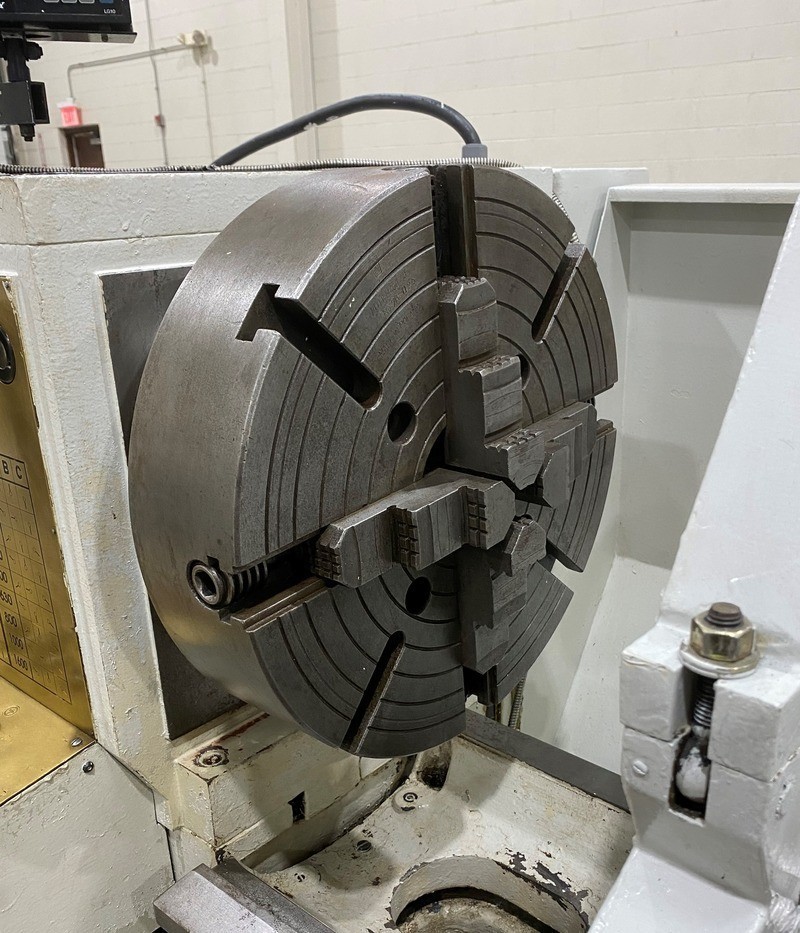

15″ 4-Jaw Chuck with Wrench
3-Point Steady Rest
Aloris Tool Post

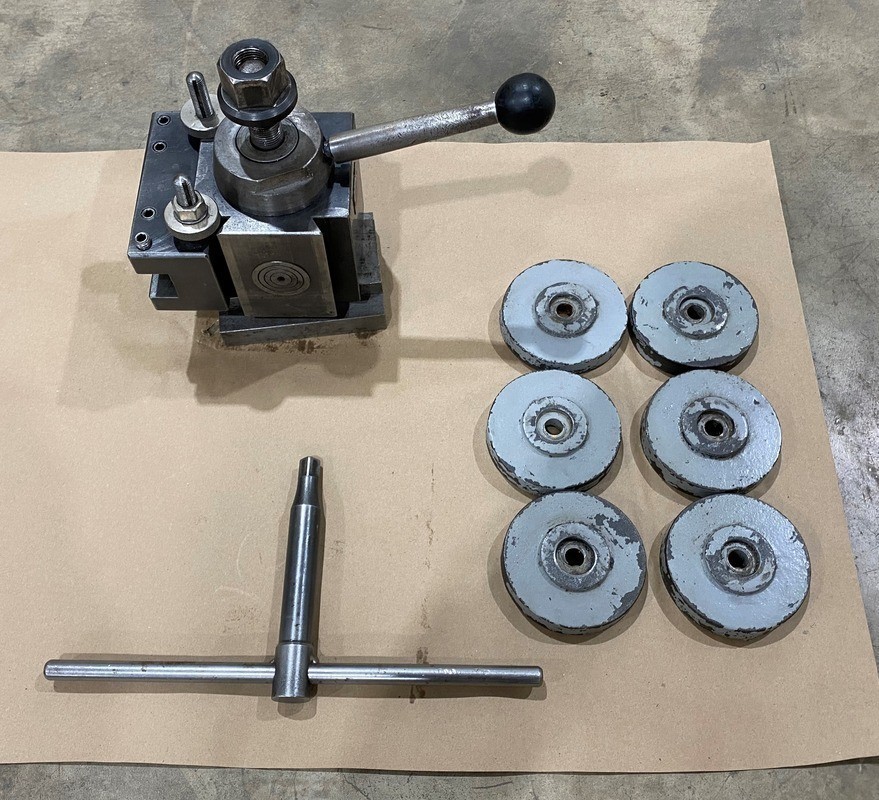

Dorian QITPN Tool Post

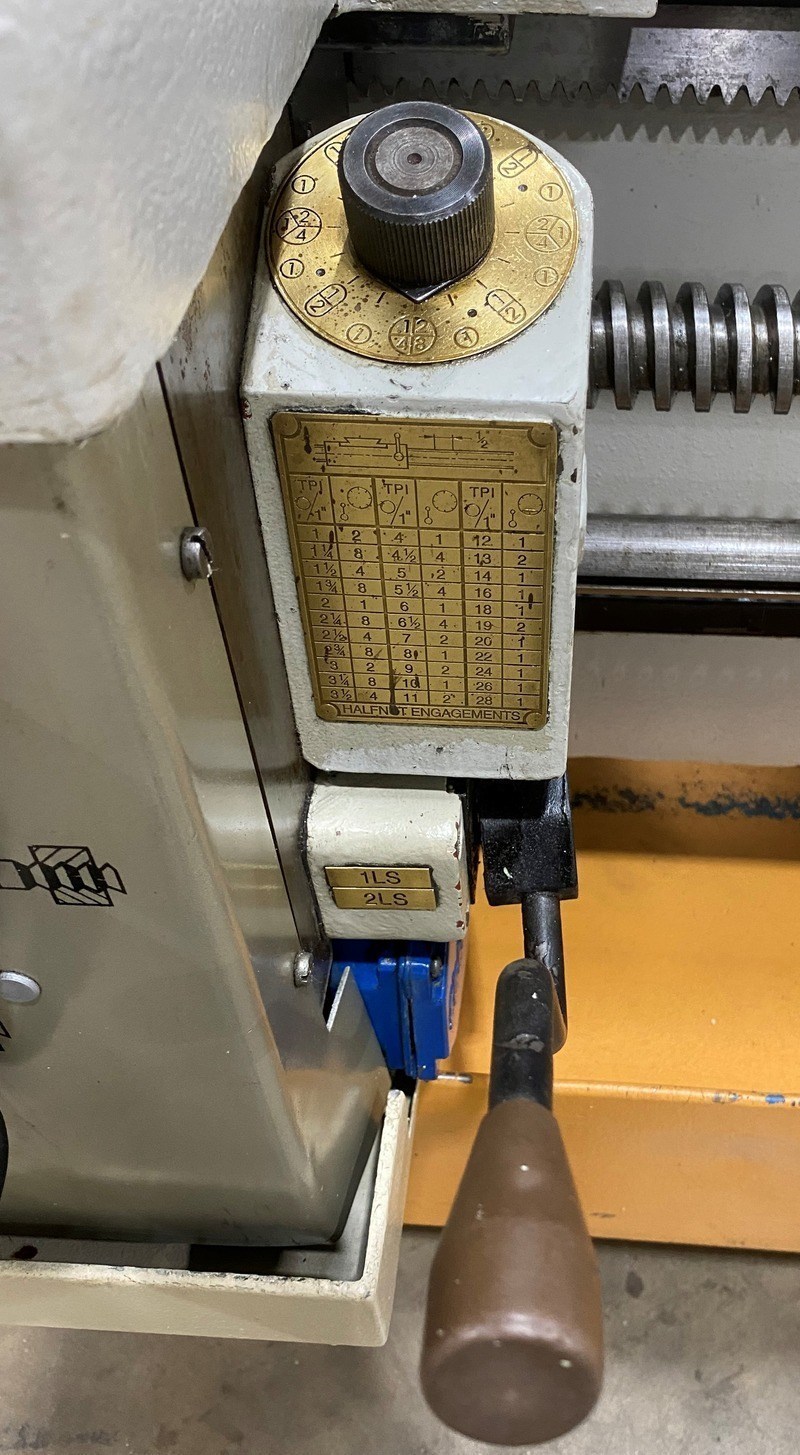

Threading Chasing Dial
Integrated Coolant Pump
Chip Guard & Chip Pan Base
*Preliminary Specifications for Tarnow Lathe TUJ630M Subject to Verification
Engine lathes are versatile and widely used machines in the field of metalworking. They are designed to perform a range of operations such as turning, facing, threading, and drilling on cylindrical workpieces. Engine lathes are commonly found in workshops, manufacturing facilities, and tool rooms.
Tarnow lathe machines consist of a horizontal bed, a headstock containing the main spindle, a tailstock, and a carriage that moves along the bed. The main spindle is driven by an electric motor, allowing the workpiece to rotate at different speeds. The carriage holds the cutting tool and can be manually or automatically controlled to move along the length of the bed.
Engine lathes are known for their robust construction, accuracy, and flexibility. They can handle a wide variety of materials, from metals to plastics, and are capable of producing intricate shapes and threads. Tarnow lathe machines are widely used for tasks like machining shafts, bushings, and other cylindrical components.
