TRAK Lathe TRL 1845SX | 18"Sw, 45"Cc, 8-Sta. Turret, SLX Ctrl, 2013 - 50572

Liberty Machine # 50572 Category Make

TRAK Lathe TRL 1845SX w/8-Station Tool Turret
New - 2013

SPECIFICATIONS:
Swing:
- Over Bed............18.1"
- Over Saddle Wings............17"
- Over Cross Slide............9.13"
Distance Between Centers............45"
Cross Slide Travel............10.6"
Rapid Feeds:
- X - Maximum............100 IPM
- Z - Maximum............250 IPM
Spindle:

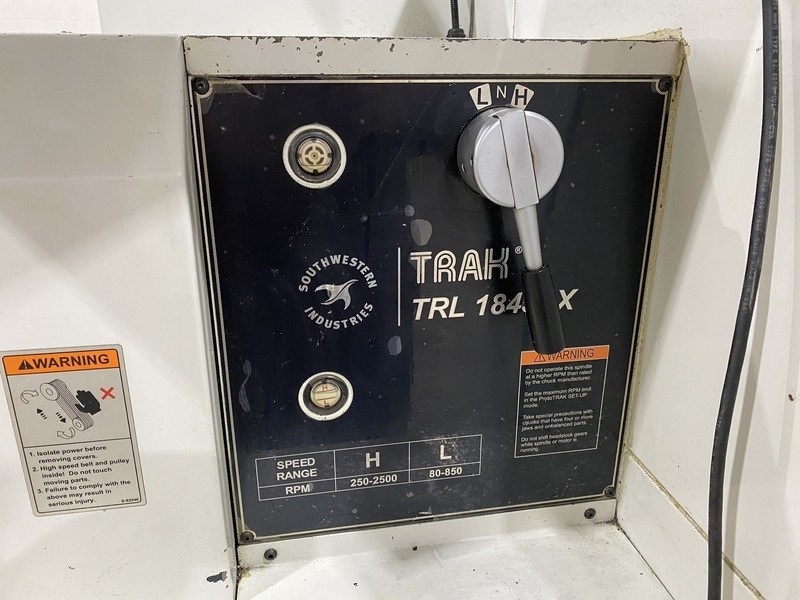

- Speed Range (low, high)............80-850, 250-2500 RPM

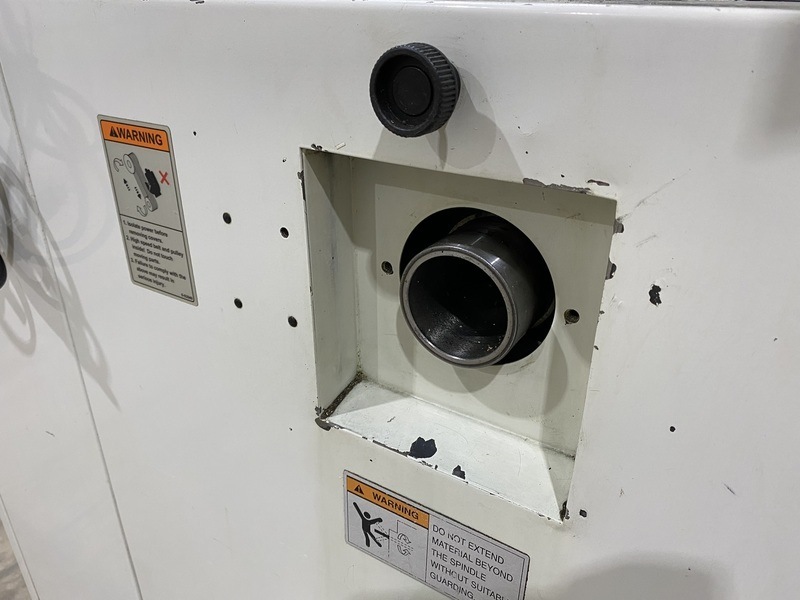

- Through Hole............2.36"
- Nose............D1-6 Camlock
- Motor............10 HP
- Brake............Dynamic
Tailstock Quill:
- Travel............6"
- Diameter............2.56"
- Taper Hole............MT#4
Coolant:
- Tank Capacity............13 Gal.
- Pump Motor............1/8 HP
Power Requirements:
- Control............110V;1P;10A
- Machine............220V;3P;60Hz
- Amps Full Load Current............33
Dimensions - Actual............89"(L-R) x 46"(F-B) x 73"(H)
Weight - Catalog............3,285 Lbs.

EQUIPPED WITH:

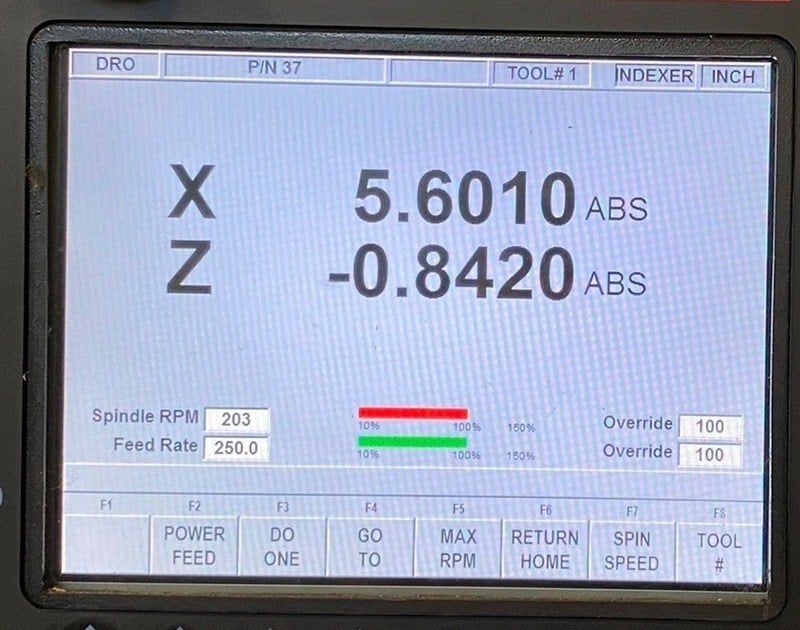

ProtoTRAK SLX Control (Version 5.11)

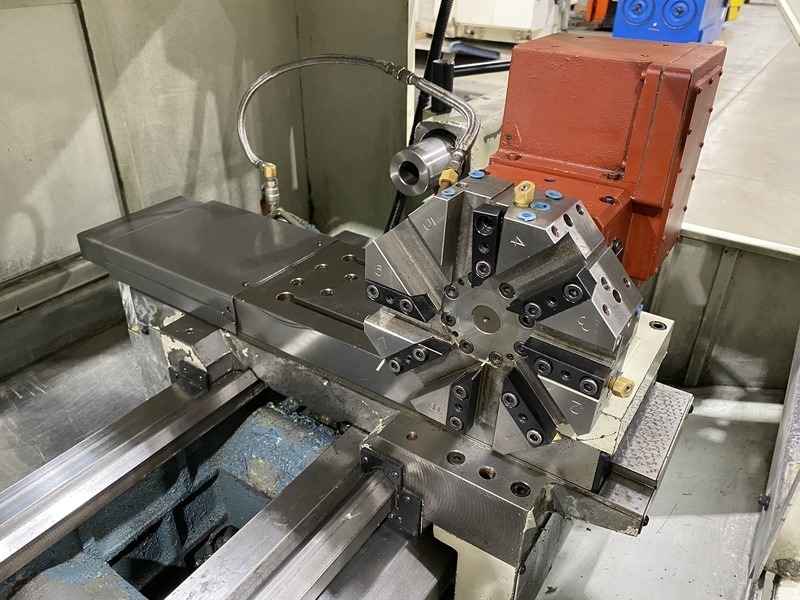

8-Station tool turret

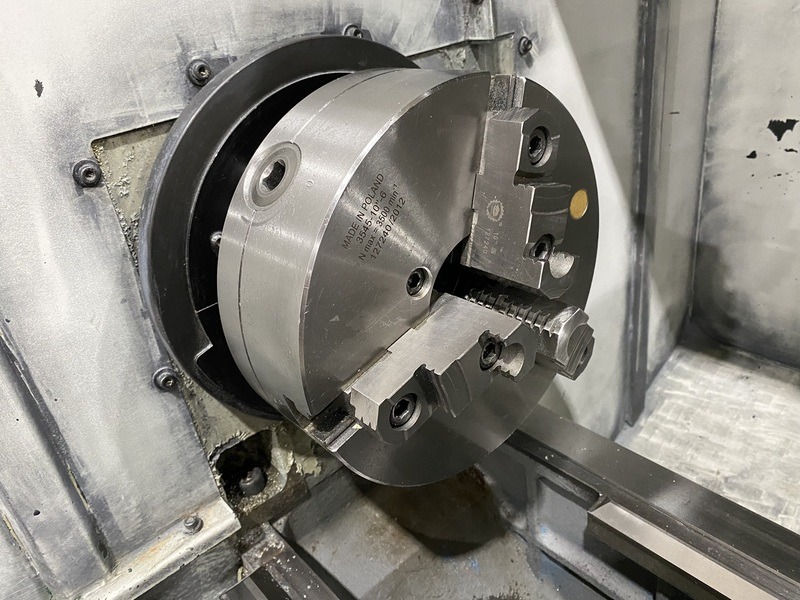

Chuck
Coolant System
Remote Stop/Go Switch
Heavy ribbed Meehanite cast monolithic base
Hardened & Ground Bedways
Sliding Surfaces Turcite Coated
Dovetails on Cross Slide, V Ways on Saddle
Adjustable Saddle Gibs

*Catalog specifications, subject to verification.
