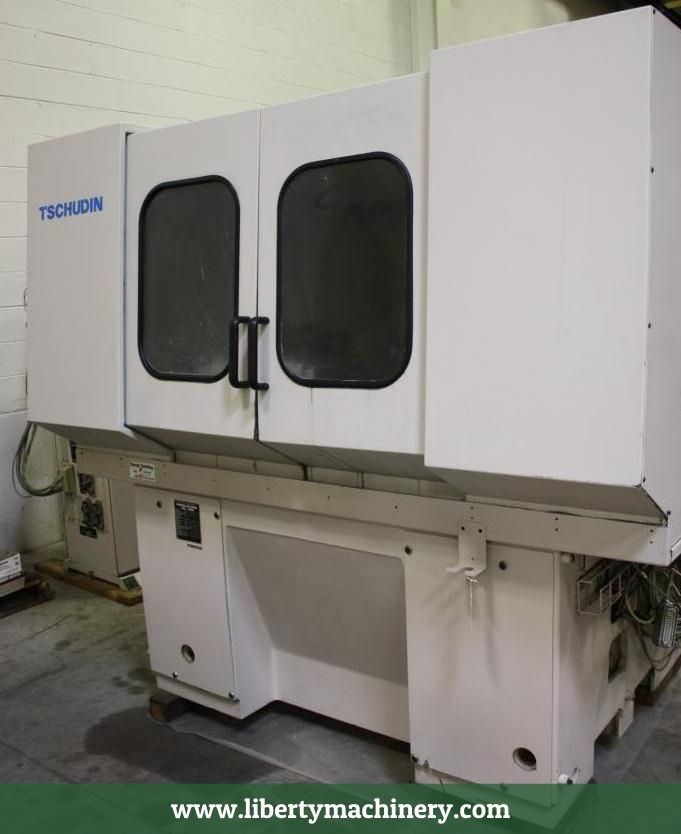

Serial No. 590434 New – 1994
SPECIFICATIONS:
Distance Between Centers…………16.9″ (430mm)
Center Height…………3.9″ (100mm)
Grinding Length…………15.7″ (400mm)
Grinding Diameter – Maximum…………7.7″ (198mm)
Grinding Diameter – Minimum…………0.03″ (1mm)
Workpiece Weight Between Centers…………220 Lbs. (100 kg)
Rotation – Including Clamping Device…………59 ft.lbs. (80 Nm)
Grinding Wheel Size…………19.70″ (500mm)
Grinding Wheel Width…………3.1″ (80mm)
Travel of Wheelhead Slide…………13.3″ (340mm)
Travel Speed of Wheelhead…………314.9 in/min. (8000mm/min.)
Resolution…………0.0001mm
Wheelhead Motor…………10 HP (7.5kW)
Workhead Spindle Taper…………Morse #5
Workhead Swivel Range…………+30/-45 Degrees
Spindle Torque…………15 ft.lbs. (20Nm)
Speed Range…………20 – 1000 RPM
Tailstock…………Morse #3
Tailstock Barrel Travel…………0.78″ (20mm)
Table Slide Travel…………18.9″ (480mm)
Table Slide Travel Speed…………314.9 in./min (8000mm/min)
Table Slide Swivel Range…………+/-9 Degrees
Coolant Capacity…………67.4 Gallons (255L)
Electrics…………440V / 3 Phase / 60Hz
Approximate Dimensions…………130″L X 126″W X 78″H
Approximate Weight…………10,000 Lbs.
EQUIPPED WITH:
Marposs 9034 Control
Siemens Simodrive 611 Servo Driver
Rittal SK3280 Chiller
Bandfilterautomat No. HTG-RWS-180 Paper Media/Drag-Out Filtration System
Grinding Cycles: Single Plunge, Traverse, Multi-Plunge, Plunge w/ Table
Oscillation, Shoulder, Shoulder w/ Z-Axis Zeroing & Contouring
Dressing Cycles: Front, Front w/ Lateral Undercutting, Contour, Combination
Cycles & Shaping
Automatic Lubricator
*Preliminary Specifications Subject to Verifications.
