New – 2018

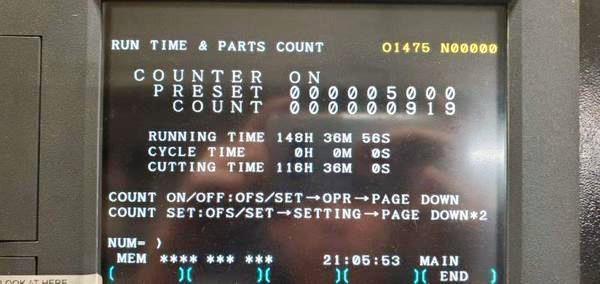

Approximate Cut Hours – 1,500
Approximate Power On Hours – 6,800
SPECIFICATIONS:
Control………………………………………………….Fanuc 0i-TDF
Number of Controlled Axes……………………………………………5
X1, Y1, Z1, X2, Z2, C1
Barstock Working Range………………………………………..3 – 20mm
Machining Length/stroke – Maximum……………..210 w/ Rotary Guide Bushing
45mm Non-Guide Bushing
Main Spindle Drilling Diameter – Maximum……………………………10mm
Main Spindle Tapping Diameter – Maximum……………………………..M10
Back Spindle Drilling Diamter – Maximum……………………………..8mm
Back Spindle Tapping Diameter – Maximum………………………………M8
Cross Drilling Diameter – Maximum…………………………………..6mm
Cross Tapping Diameter – Maximum……………………………….M5 x 0.8
Back Drilling Diameter – Maximum……………………………………6mm
Back Tapping Diameter – Maximum……………………………………..M5
Main Spindle Speed…………………………………….200 – 10,000 RPM
Back Spindle Speed…………………………………….200 – 10,000 RPM
Main Spindle Indexing…………………………………………..Full C
Back Spindle Indexing…………………………………………1 Degree
Tool Storage Capacity…………………………………………21 Tools
4 Live
4 ID/ 4BW
5 OD
4 BW
Tool Size…………………………………………..12mm x 12mm x 85mm
Main Spindle Motor………………………………………..2.2 / 3.7 kW
Back Spindle Motor………………………………………..1.5 / 2.2 kW
X1, X2, Y1, Z1, Z2 Axes Motors…………………………………..0.5 kW
Cross Drill Motor……………………………………………..0.18 kW
Lubricating Oil Pump Motor…………………………………………3 W
Power Source Requirement…………………………………………11KVA
Machine Dimensions – Approximate………………………65″ x 43″ x 67″(H)
Machine Weight – Approximate…………………………………3,800 Lbs.
EQUIPPED WITH:

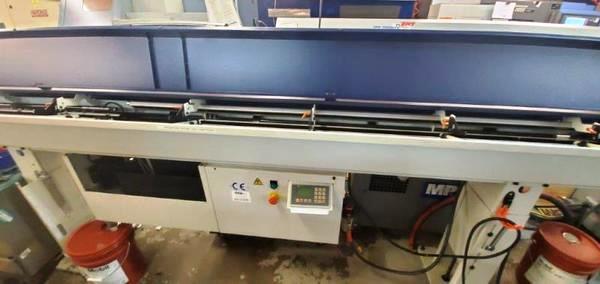

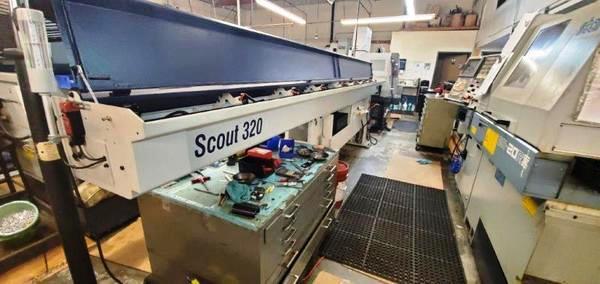

LNS Alpha ST320 S2 Magazine Bar Feed with 16, 20 & 25mm Channels
LNS Turbo Chip Conveyor
*Catalog Specifications Subject to Verification
