New – 1993
Serial No. STTPS-M5-486
CATALOG SPECIFICATIONS:
Tube Capacity…………3/16″ – 1-1/8″
Cut Length:
– Standard – Minimum…………3/4″
– Using Pull A-part – Minimum…………4-1/2″
Hitch Feed:
– Stroke Length – Maximum…………36″
– Strokes…………Multiple
Rolls:
– Straightening…………14
– Sizing…………4
Pull Apart Clamp Jaws…………0.500″
Runout Table…………8′
Two Plane Straightener with Sizing:
– Straighteners per Plane…………7
– Sizers/Plane…………2
– Adjustable Rolls per Plane…………4
Coil Stand Reels…………2
Electrics…………220/440/3Ph/60Hz
Actual Shipping Dimensions- Machine…………144” L x 40” W x 53” H @ 6,000 Lbs.
– Double End Real…………72” L x 64” W x 84” H @ 500 Lbs.
– Take-Off Table…………98” L x 18” W x 58” H @ 500 Lbs.
– Crate of Tooling…………50” L x 50” W x 36” H @ 2,000 Lbs.
EQUIPPED WITH:

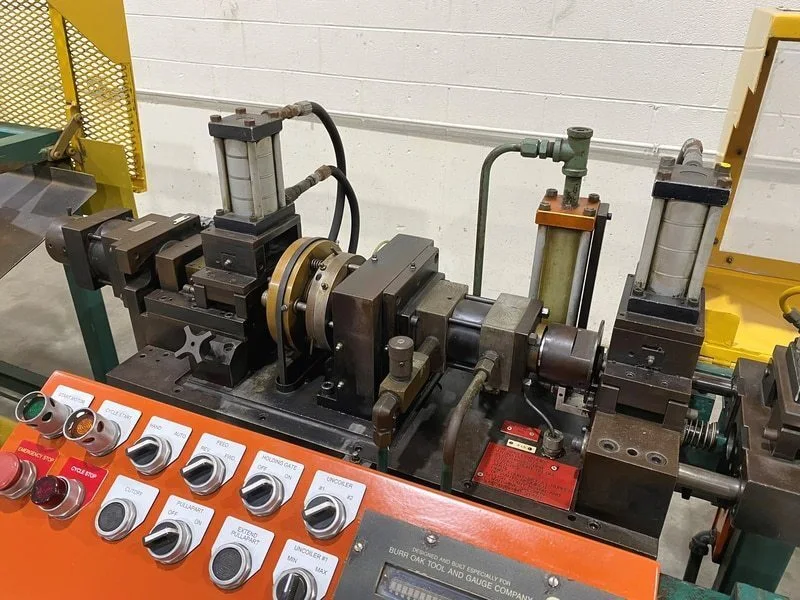

STCO M5 – Right Hand Tube Cut-Off

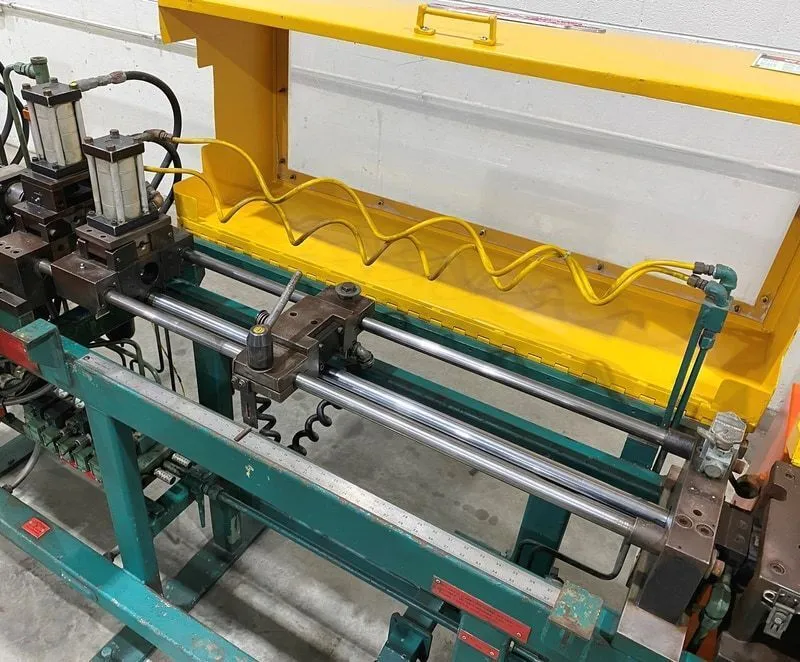

STHF M5 – Right Hand 36″ Long Hitch Feed w/4-Stage Feed Clamp

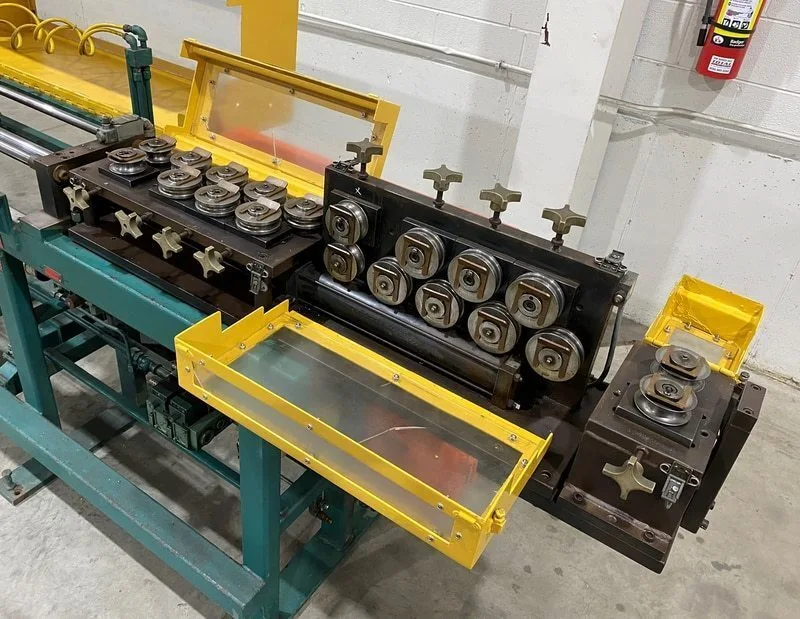

STPPS-M5 – Right Hand Two Plane Straightener w/Reverse Plane Sizing Station

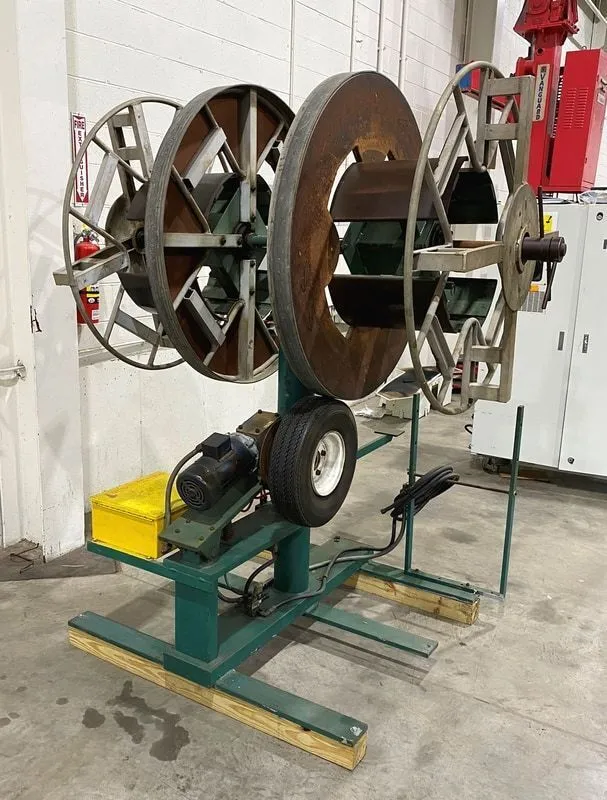

Double Wheel Coil Payoff w/Brake

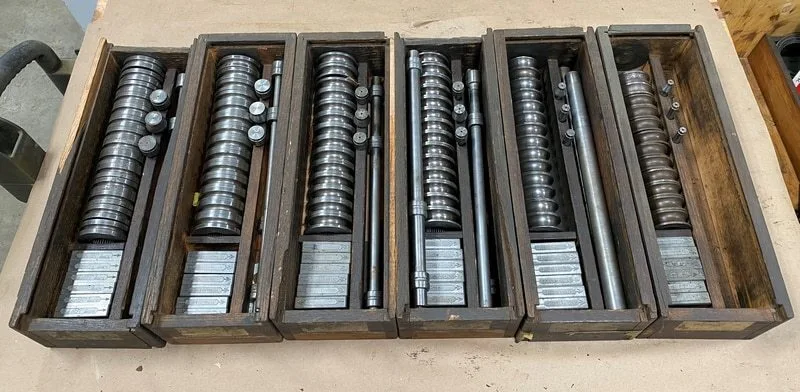

Straightening Dies: 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 7/8″, 1″

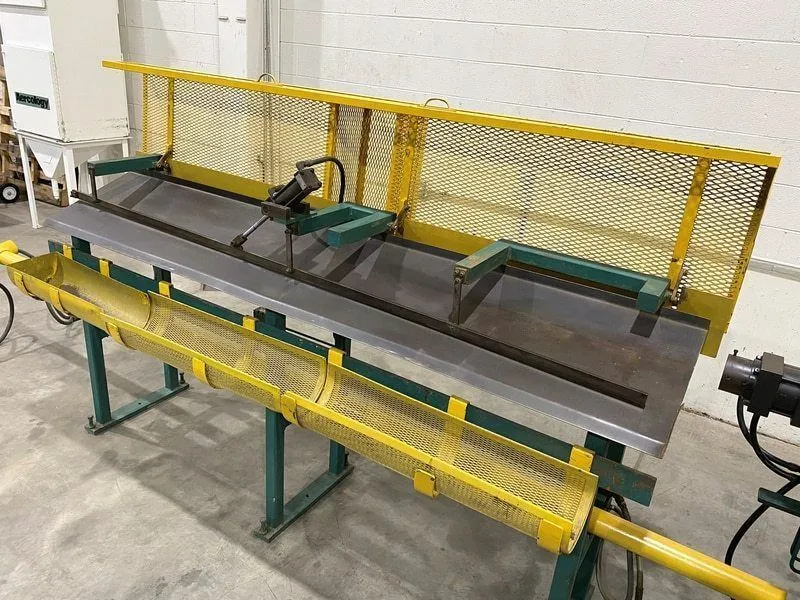

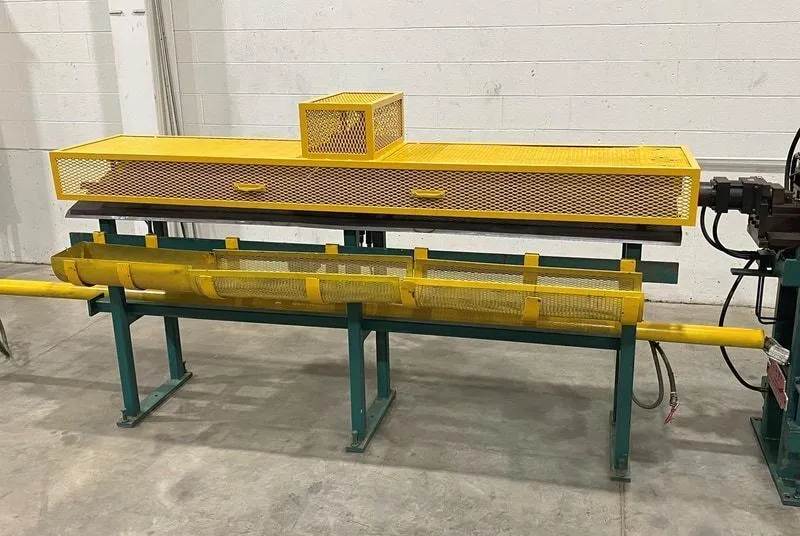

Right Hand 8′ Long Tube Runout

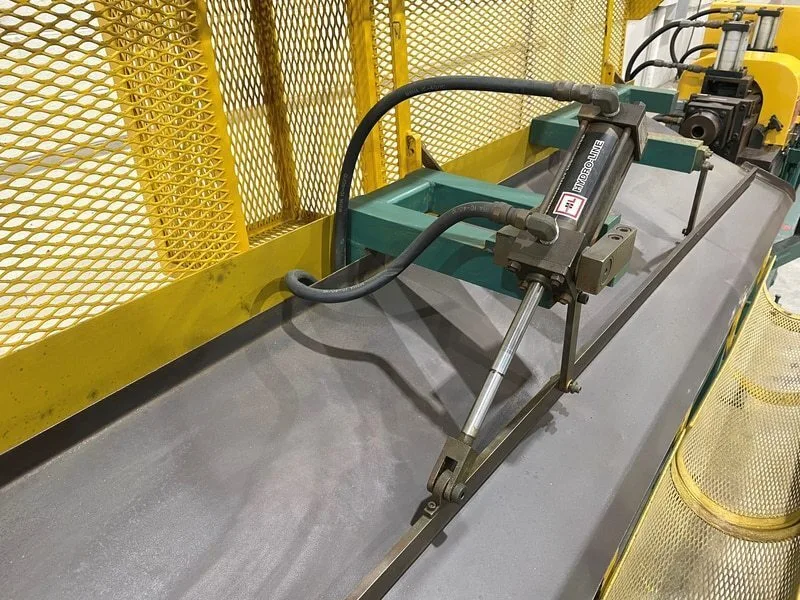

Right Hand Pull Apart Unit
Chipless Tube Cut-Off
Dayton SCR Control Model 5×412
Power assist conventional coil stand

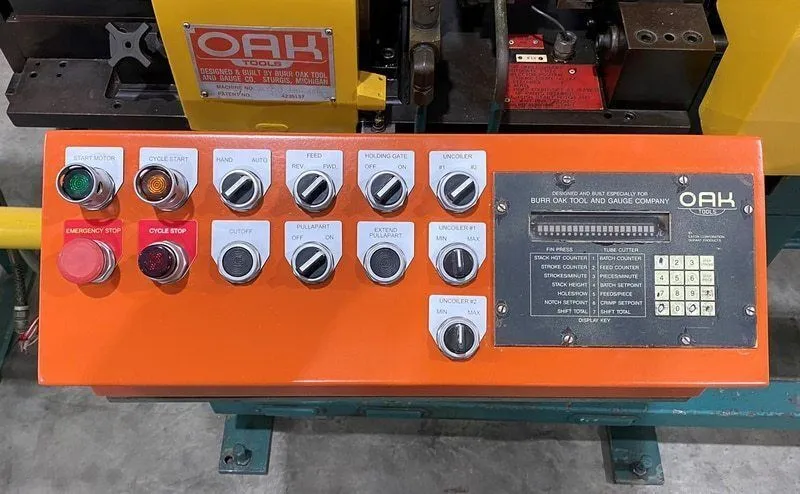

Pushbutton Master Control Station
V.S. Drive Controller
Books, Manuals and Drawings
*Preliminary Specifications, Pending Confirmation

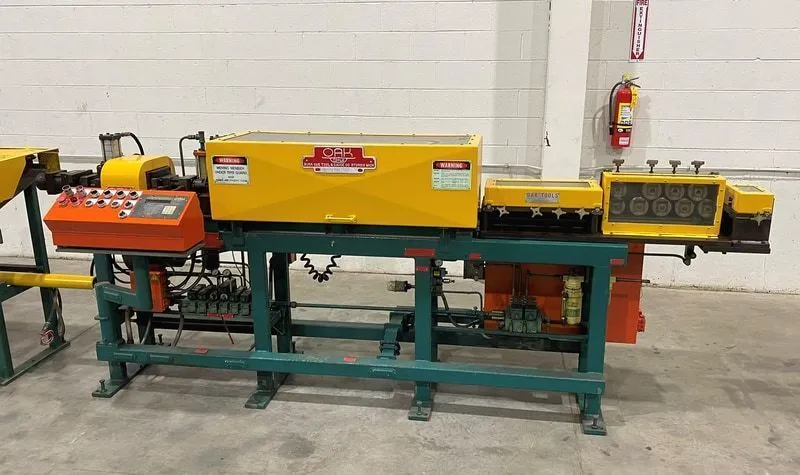

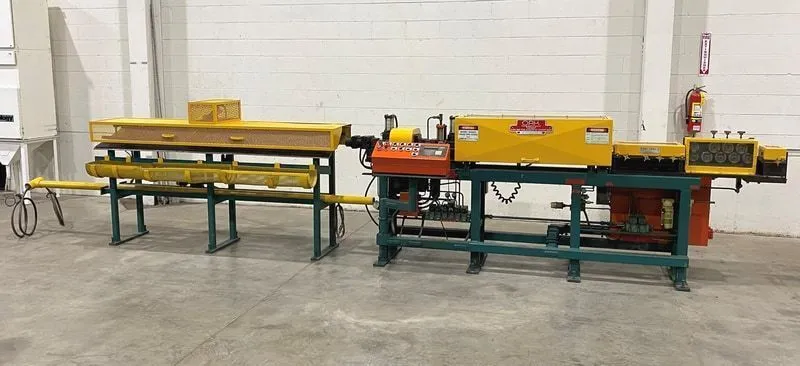

1-1/8″ Burr Oak STCOS M5, R. Hand, 36″ Hitch Feed, Cut-off, Pull-apart, Sizing, Tooling, ’93
