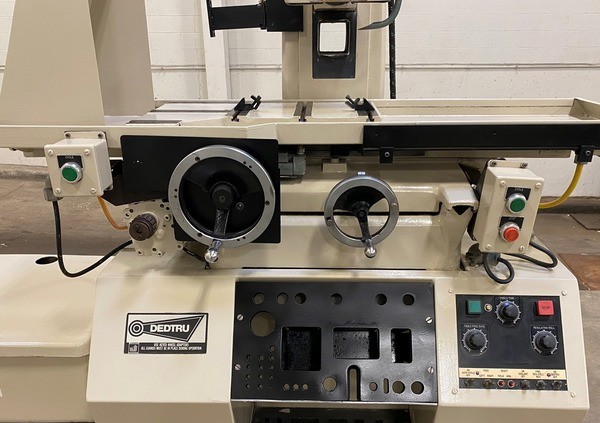

Unison DedTru No. 287-0000 Centerless Grinder | 1/4" - 1-1/4" Cap. - #48612

Liberty Machine # 48612 Category Make

Model 287-000 Serial No. 6259
Model C Unit Serial No. 3352
Model PFG Unit Serial No. 380

SPECIFICATIONS:
Vertical Working Height (Center of Spindle) Above Regulating Roll.......10"
Cross Feed Travel....................................................6-3/4"
Longitudinal Travel.....................................................18"
Table Size.........................................................6" x 18"
Hole Through Column..................................................2-3/4"
Workpiece Size:
- OD w/Basic Equipment........................................1/4" - 1-1/4"
- OD w/Standard Optional Accessories............................0.031" - 5"
- ID - Maximum w/Optional Accessories....................................5"
Wheel Size:
- Diameter - Maximum.....................................................8"
- Length - Maximum.......................................................3"
Regulating Rolls:
- Model C....................................................4-1/4" x 4"(W)
- Model PGF......................................................5" x 2"(W)
Electrics.....................................................480V/3Ph/60Hz
Dimensions - Actual......................................56" x 41" x 71"(H)
Weight - Approximate.............................................1,500 Lbs.

EQUIPPED WITH:
Model C DedTru Centerless Grinding Unit
Model PGF DedTru Centerless Grinding Unit
Dual Sine Base
Acu-Rite Quikcount II 2-Axis DRO (In/mm)
Auto-Cycle, Dwell, and Fine Feed
Hole Through Column for Longer Parts
FilTru Coolant System with Settling Tank, Filter Assembly, and Pump
Large Splash Shield and other Splash Guards
Extension Arm & Roller Support Assembly
Outboard Roller Support
Various Work Pressure Rolls and Blades
Various Wheel Hubs and Grind Wheels

*Catalog Specifications Subject to Verification
