Tru-Tech TT-8000 | 3"Dia x 6"L Part Cap, 2HP, 3-Axis CNC, 2005 - #50676

Liberty Machine # 50676 Category Make

The Tru Tech TT-8000 makes easy work of Ultra-Precision Centerless Profile Grinding projects making it ideal for carbide blank preparation. Integrated into the machine is Tru Tech's patented PP-8000 precision grinding unit which holds concentricity within 30 millionths. Intuitive Pick-N-Place software allows easy profile programming in minutes and grinds most profiles with a standard 1A1 wheel. Capable of plunge, peel, in-feed, and thru-feed grinding.

Serial No. TTS-10221C
Year Built - 2005

SPECIFICATIONS:
Grind:
- Length - maximum............6"
- Diameter - maximum.............3"
Travel:
- X-Axis............18"
- Y-Axis............10.75"
- Z-Axis............6"
Grind Wheel:
- Size - standard............0.75" W x 8" Diameter
- Horsepower............2
Regulating Wheel:
- Size............3" W x 4.125" Diameter
- Horsepower............1/4
Velocity:
- Y-Axis - maximum............15"/Min.
- Z-Axis - maximum............15"/Min.
Input increment............0.000010"
Accuracy............+/- 0.00010"
Repeatability............+/- 0.000050"
Weight - catalog............2,500 Lbs.

EQUIPPED WITH:
3-Axis CNC Grinding Capabilities

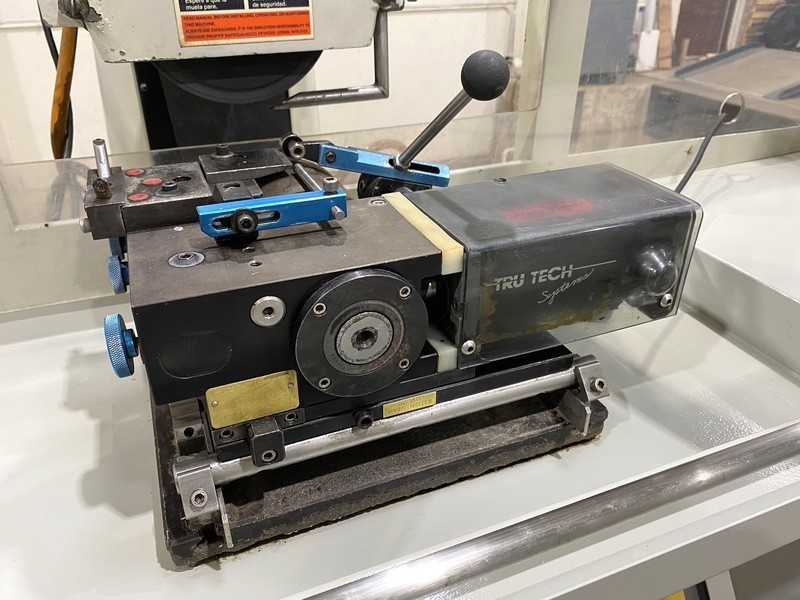

Tru Tech PP-8000 Grinding Fixture (Thru-Feed or In-Feed Grinding Capabilities)
Blade Thickness: Workpiece Diameter:
1/4" .25" - 2.00"
1/8" .12" - .250"
1/16 .06" - .120"
1/32" .03" - .060"
Tru Tech Pick-N-Place software
Coolant system

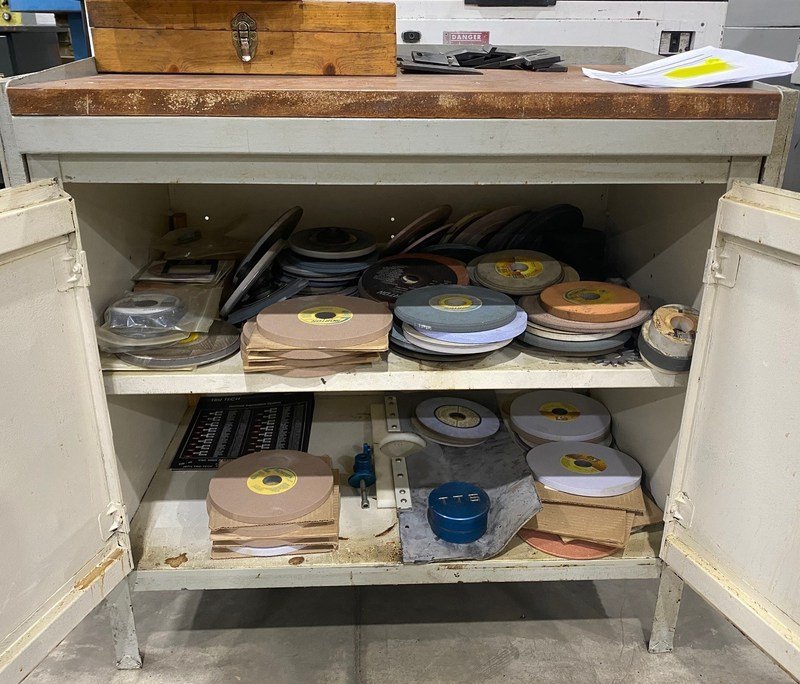

Tooling cabinet & misc. fixturing, hubs, wheels etc.
Machine & Control Documentation

*Preliminary specifications, subject to verification.
