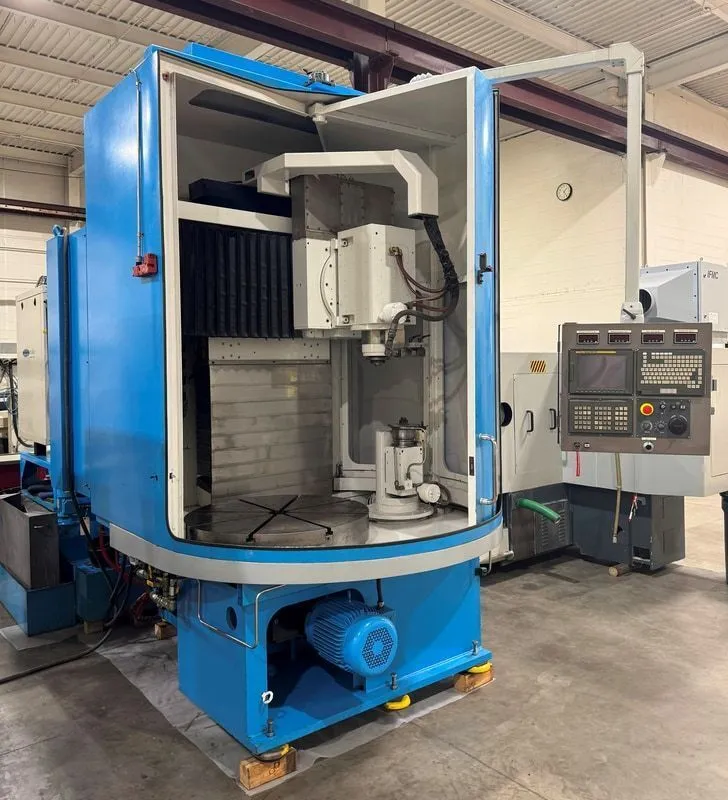

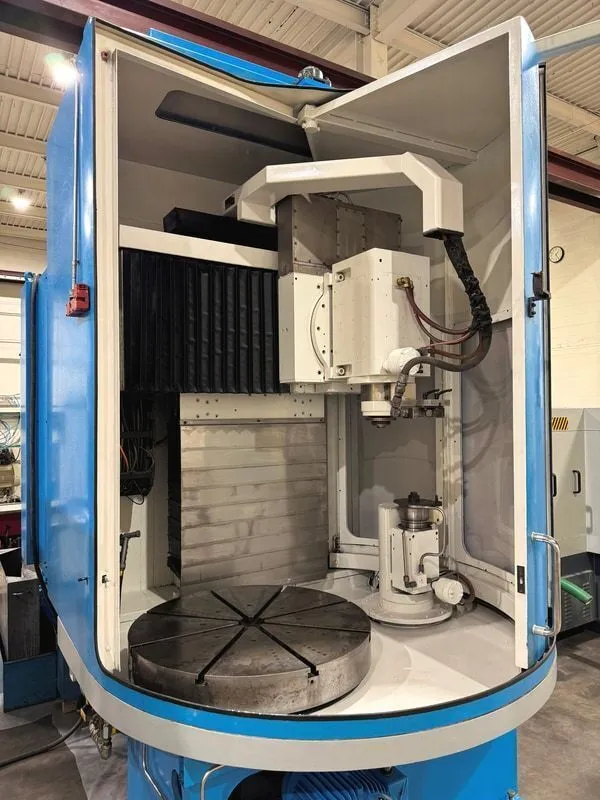

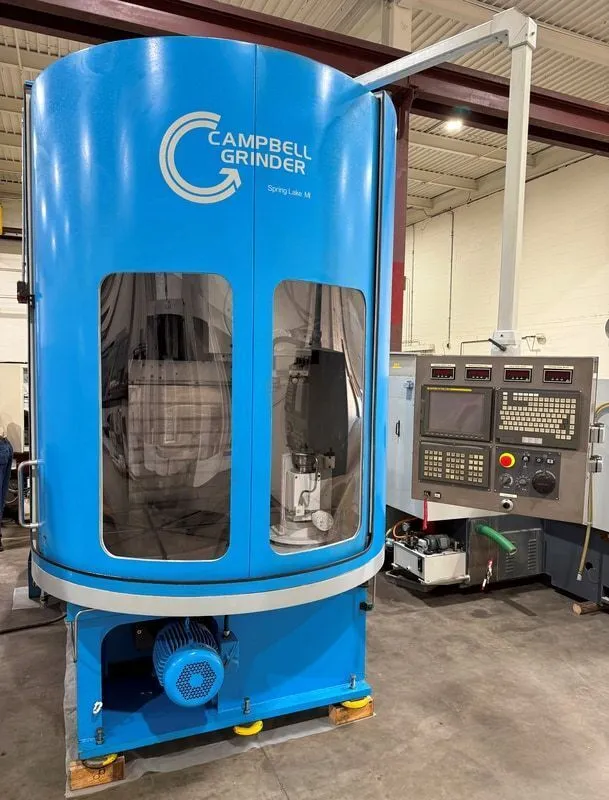

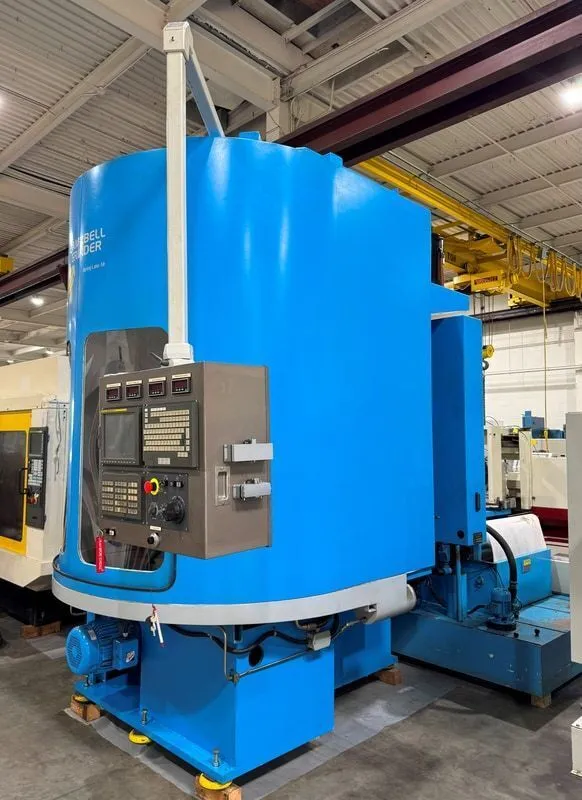

New – 2008
SPECIFICATIONS:
Table Diameter – Maximum…………30″
Swing Diameter – Maximum…………30″
Part Height – Maximum…………24″ (Arbor Dependent) and Approach Dependent, Angular or Straight Approach
X-Axis…………36″
Z-Axis…………36″
Main Grinding Spindle (Setco)…………30 HP / 7200 RPM
Spindle Speeds…………1,500 to 7,200 RPM
Spindle Taper…………HSK-80
B-Axis (Spindle Swivel)…………+/- 180 Degrees
Table Drive Motor (A.C. Digital Servo “Whisper Drive”)…………7.5 HP
C-Axis Table Drive…………0 – 150 RPM
Table Run-Out, Radial & Axial…………0.0001″
Rotary Dresser Spindle Motor…………1.0 HP / 3600 RPM

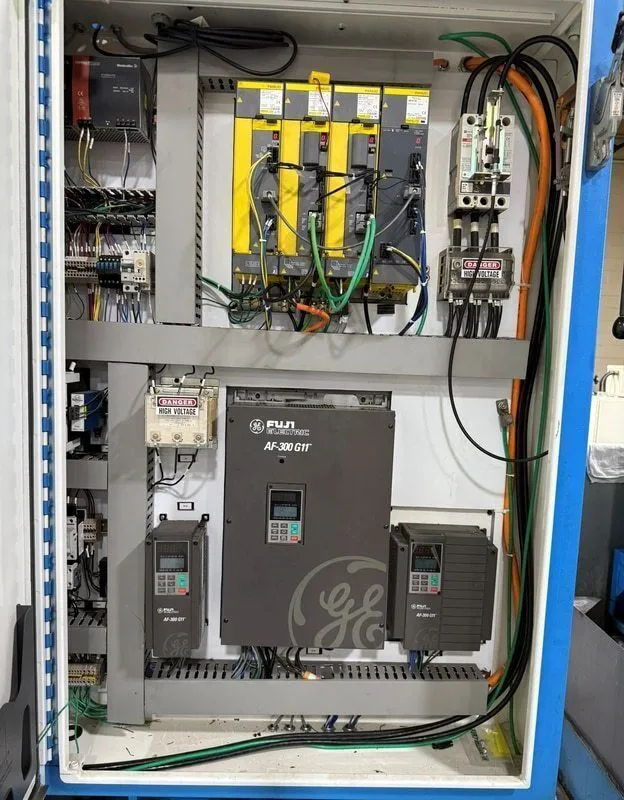

Electrics…………480/3/60 (114 FLA)
Floor Space Required…………161″ F-B x 142″ L-R x 141″ H
Weight – approximate…………21,000 Lbs.
EQUIPPED WITH:

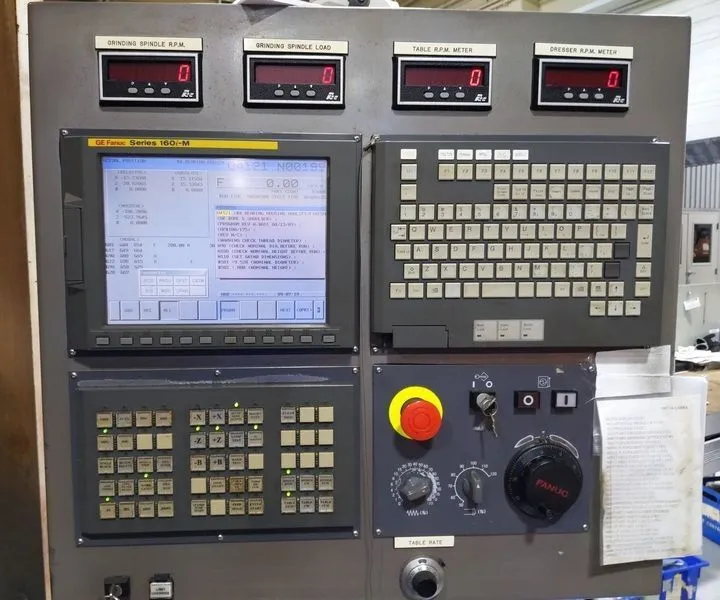

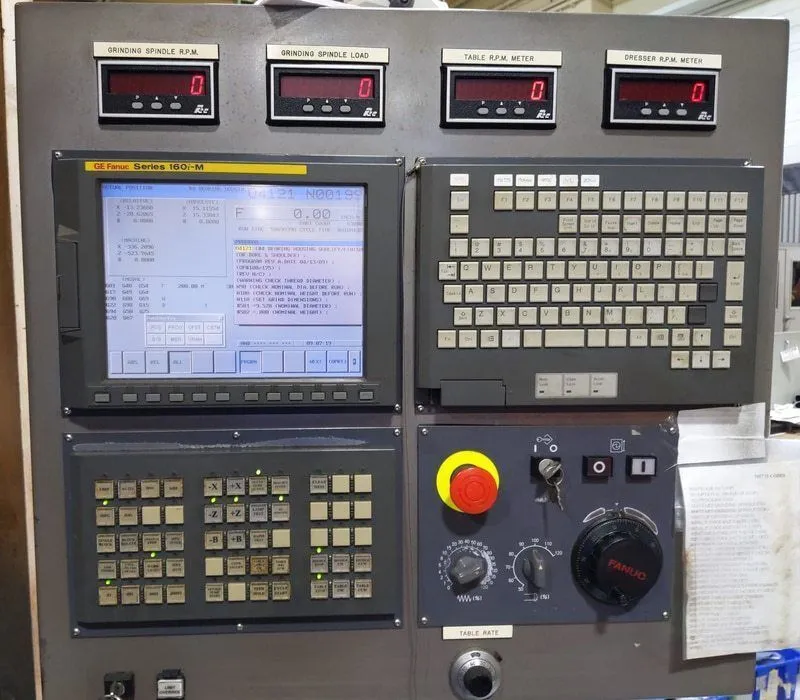

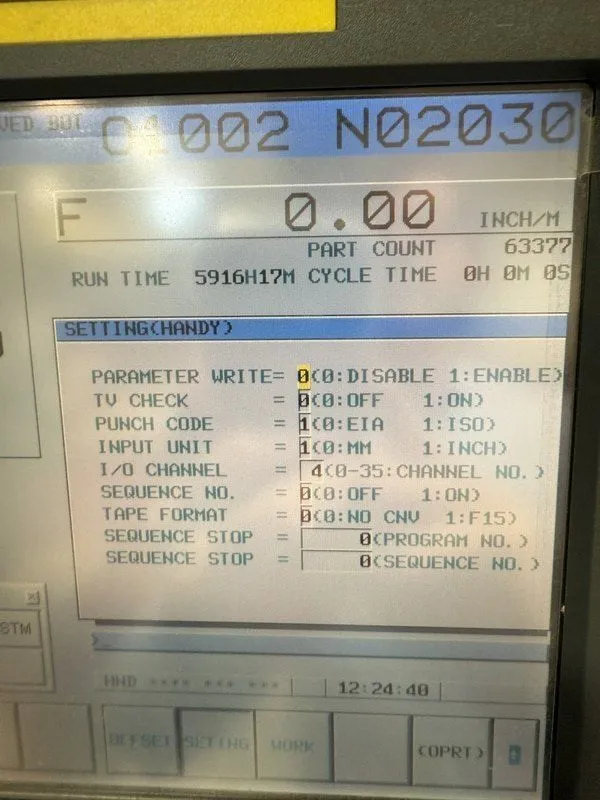

Fanuc 160i-M CNC controller

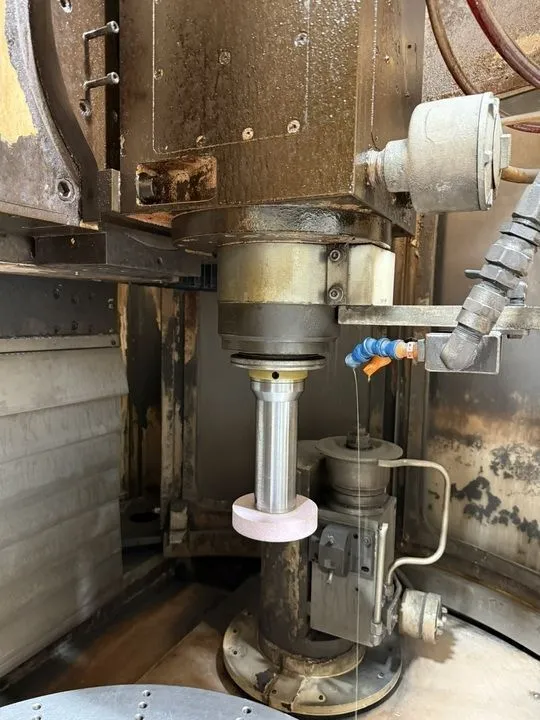

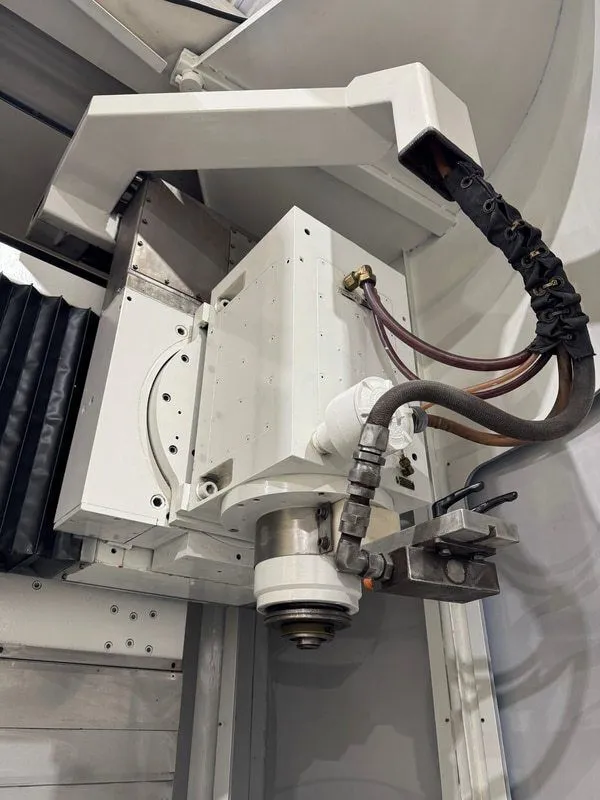

Setco U30HP7200SM80.55772R liquid cooled spindle w/auto draw bar

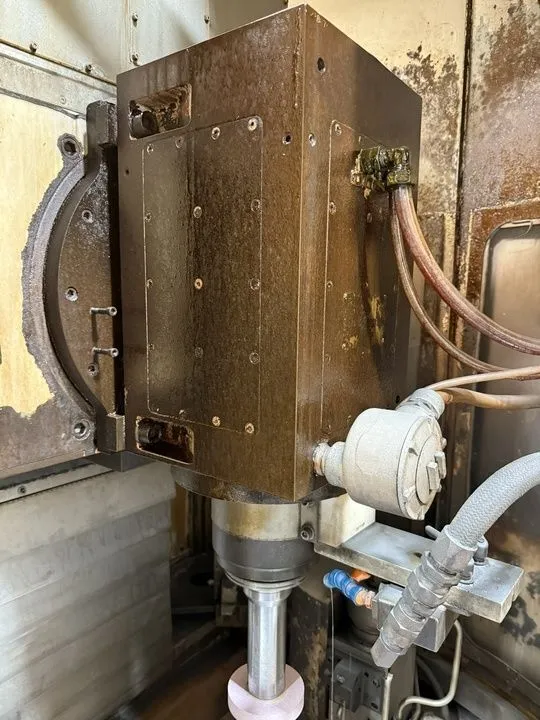

Servo driven rotary axis for spindle swivel up to 180° allowing for light turning as well as grinding

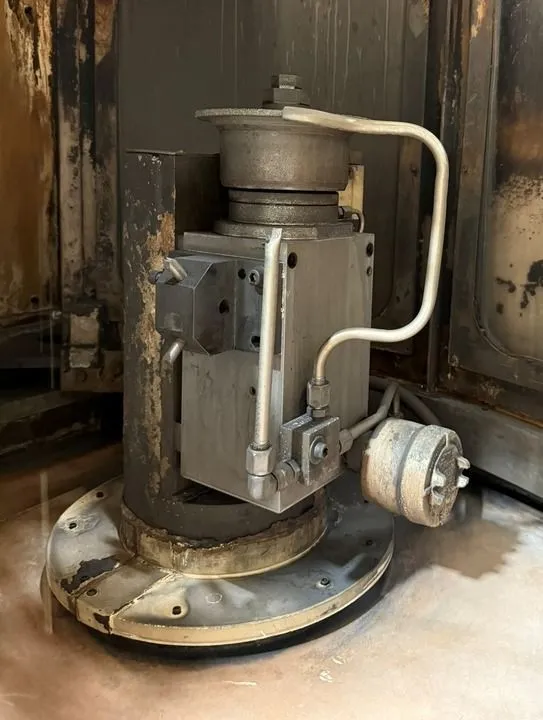

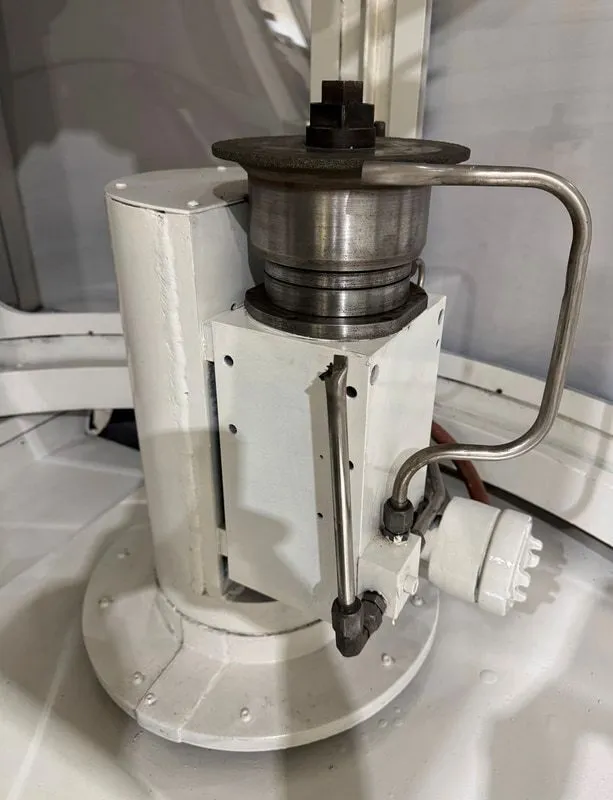

Rotary dresser
Single point dresser

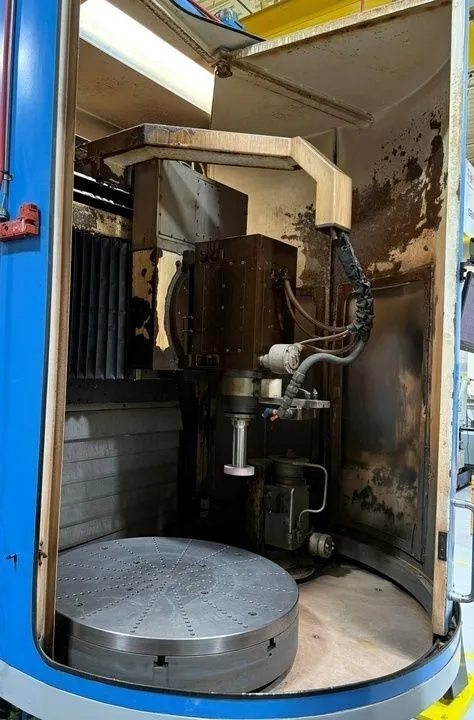

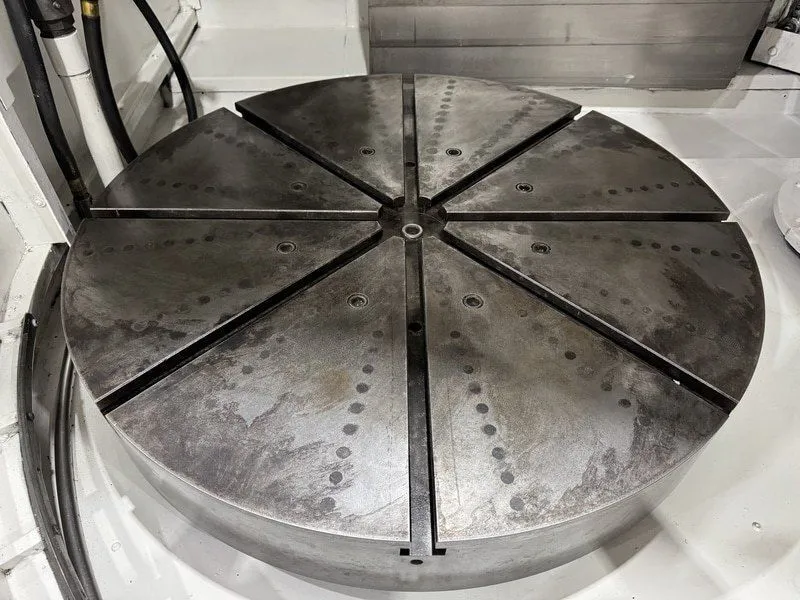

36″ T-Slotted rotary table
28″ Hydraulic chuck w/draw bar and large quantity top jaws
X, Z, B Axes equipped w/Absolute Position Feedback Scales (Linear Glass)
Precision roller ways – all axes
Renishaw probe w/extension and styli

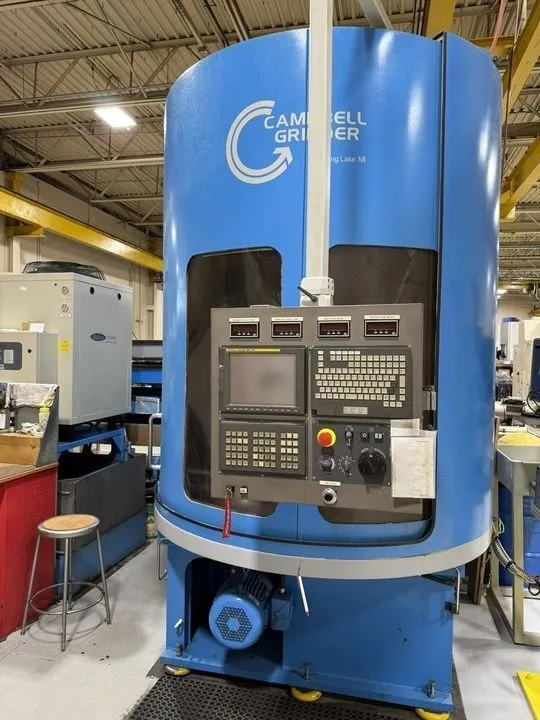

Full machine enclosure

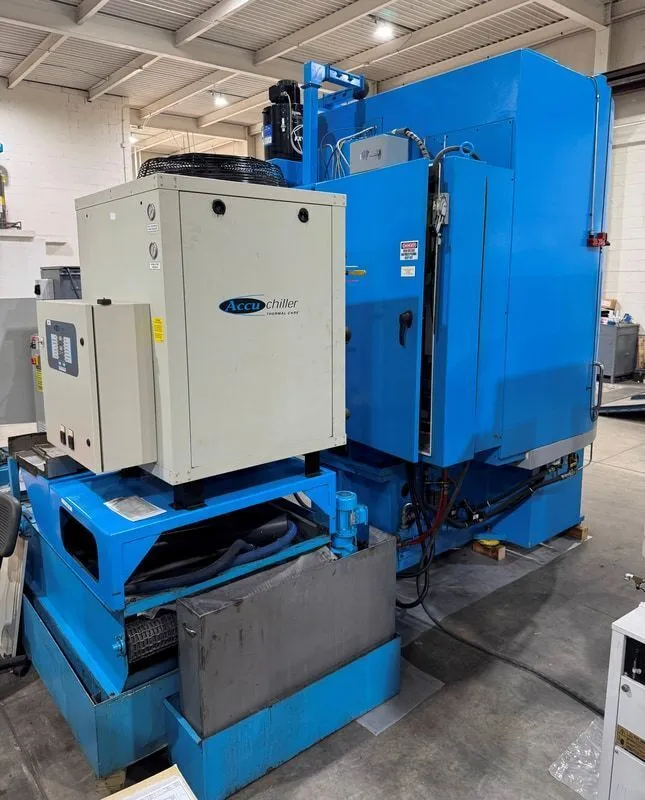

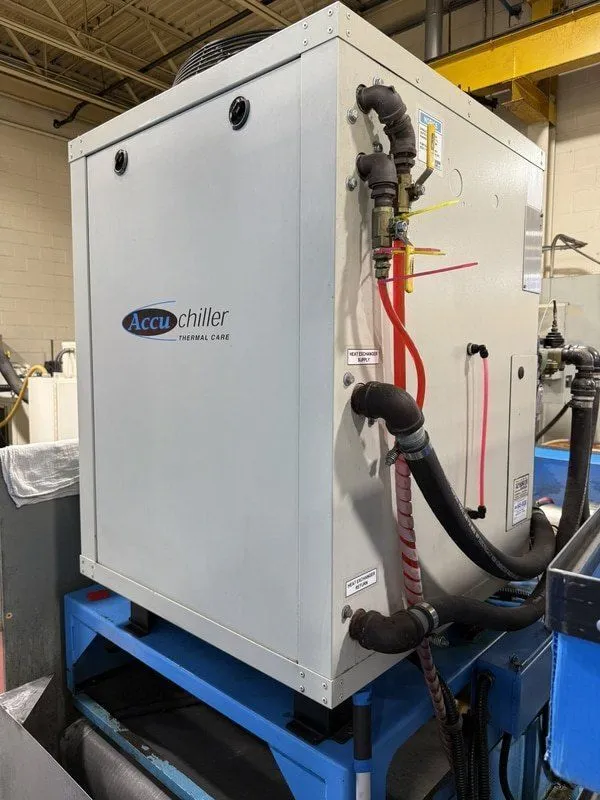

Thermal Care Accu-Chiller

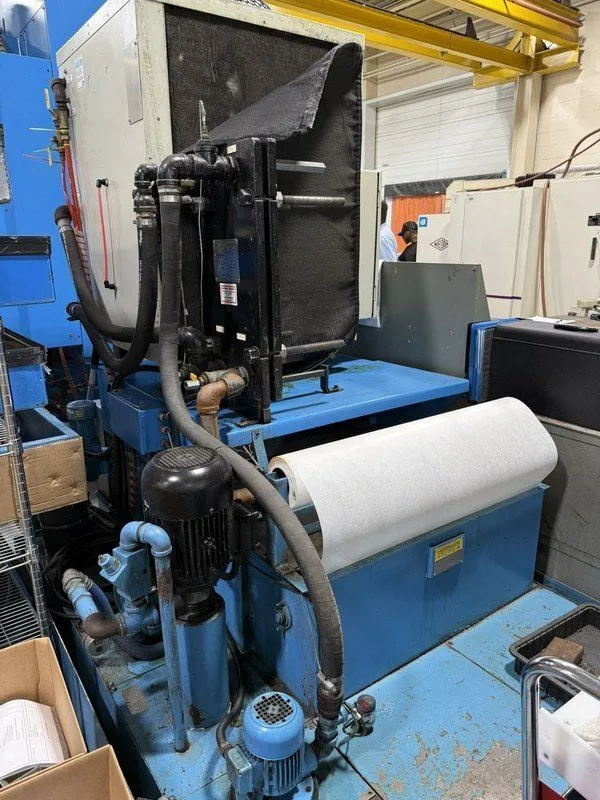

Gravity bed coolant filtration system w/disposable media filter
Royal mist collector
*Preliminary specifications, pending confirmation.
