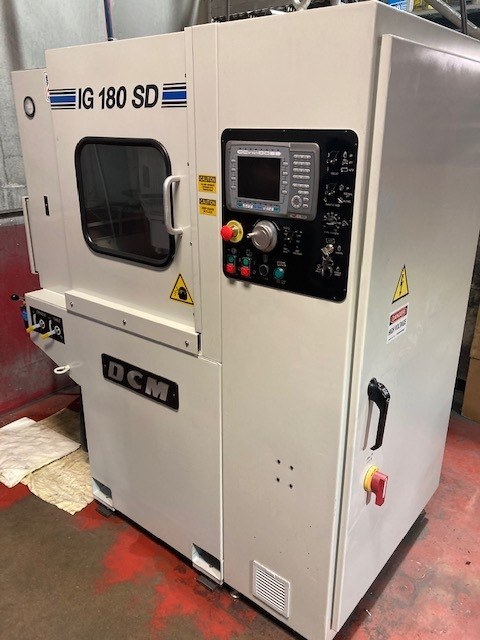

Vertical Spindle Rotary Table Surface Grinder DCM IG 180 SD
New – 2018
SPECIFICATIONS:
Swing – maximum…………24″
Part height – maximum (w/6A2 wheel)…………7″
Resolution…………0.0001″
Grinding Wheel:
– Diameter…………8″
– Power…………10 HP
– Speeds…………200 – 3,520 RPM
– Feedrate – variable…………0.0006 – 0.1000 IPM
Table:
– Diameter…………18″
– Type…………Electromagnetic
– Power…………1 HP
– Speeds…………5 – 70 RPM
Electrics…………230V/3Ph/60Hz
Weight – catalog…………3,300 Lbs.
Dimensions – catalog…………64″(L-R) x 44″(F-B) x 73″(H)
EQUIPPED WITH:
CNC Controller
Servo driven Z-axis w/precision ballscrew & encoder

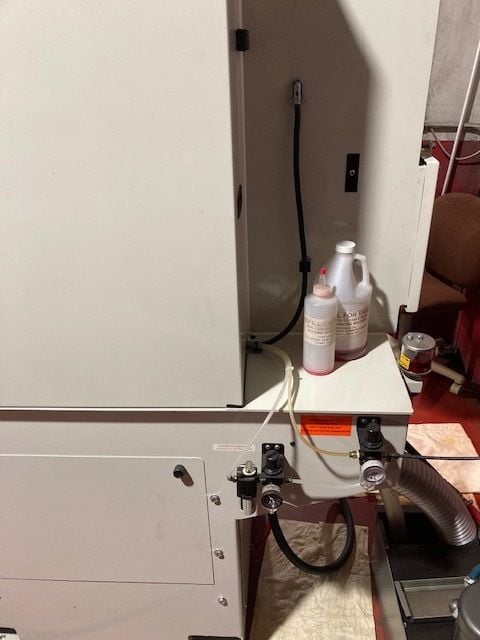

Coolant filtration system
Full enclosure
*Catalog specification, subject to verification.
Vertical spindle rotary table surface grinders, also known as vertical rotary grinders, are specialized grinding machines used for precision surface grinding operations. These grinders combine the advantages of vertical spindle and rotary table configurations, enabling efficient and precise grinding of large workpieces with a high degree of accuracy.

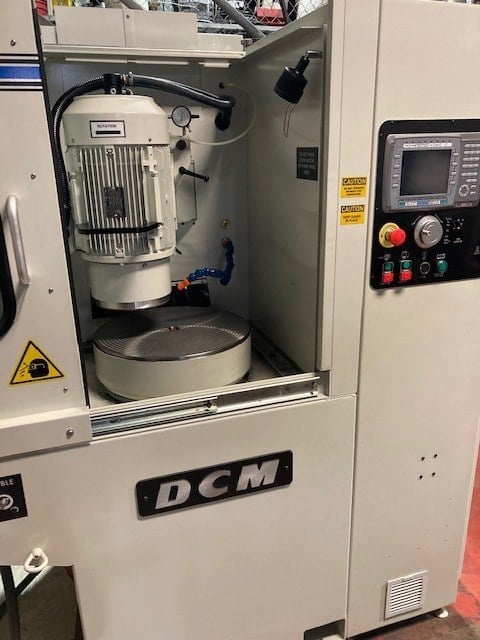

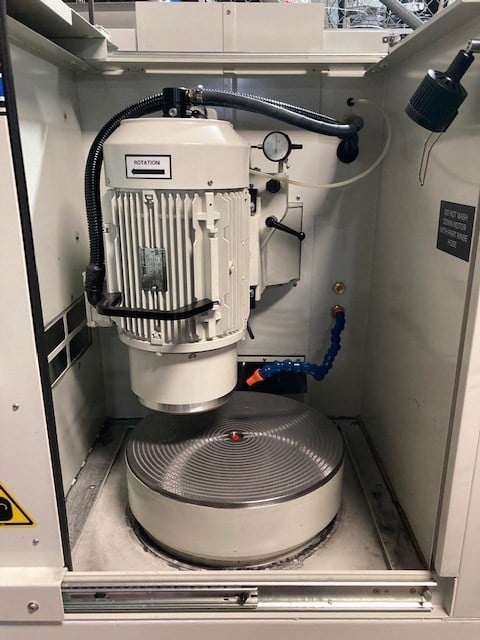

Rotary table surface grinders consist of a vertically mounted grinding wheel that rotates at high speed and a rotary table positioned horizontally beneath the grinding wheel. The workpiece is mounted on the rotary table, which can be indexed or continuously rotated, allowing for even and consistent grinding across the entire surface.
One of the key advantages of Rotary table surface grinders is their ability to grind large workpieces and achieve flatness and parallelism within tight tolerances. The combination of the vertical spindle and rotary table provides excellent stability, ensuring consistent contact between the grinding wheel and the workpiece.
These grinders offer versatility in terms of the materials they can handle. They can grind various materials, including metals, ceramics, and composites, allowing for a wide range of applications across different industries.
Vertical spindle rotary table surface grinders also provide flexibility in terms of the grinding processes they can perform. They can perform surface grinding, plunge grinding, and even creep feed grinding, depending on the specific requirements of the workpiece.
To read more about rotary table surface grinding machines click HERE and HERE.
