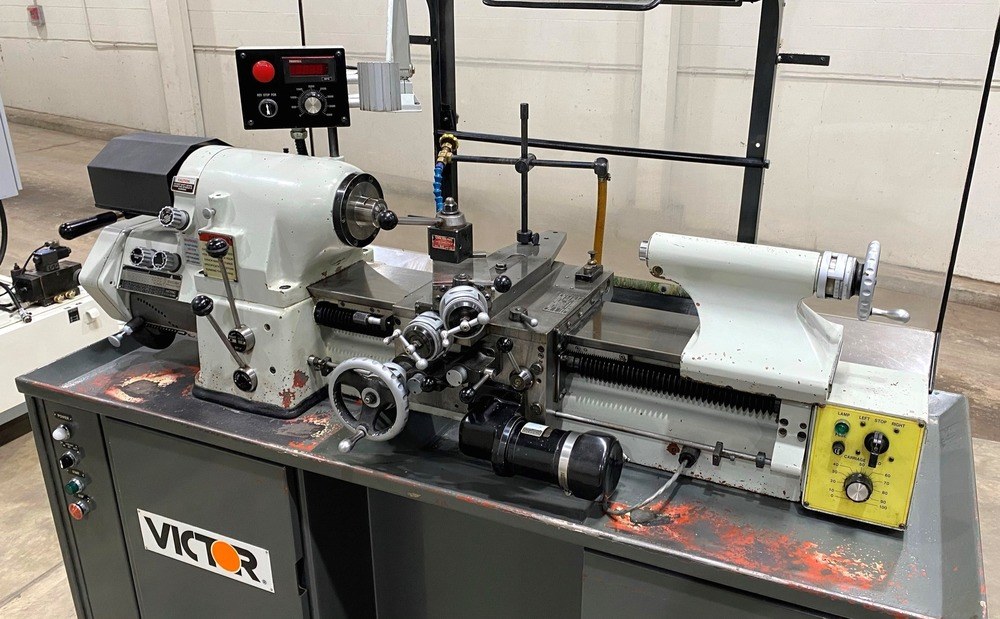

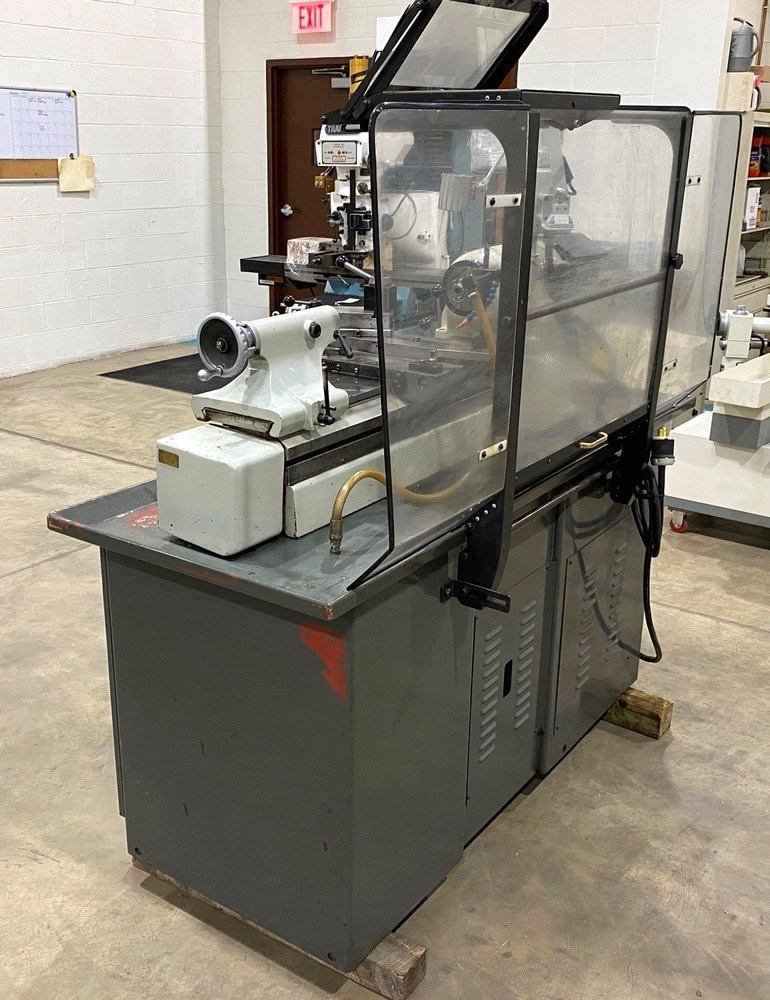

Victor 618 EVS Precision Toolmakers Lathe | 11" x 18", In-mm, Rests - #50333

Liberty Machine # 50333 Category Make

New - 2010
Serial No. 8906423

SPECIFICATIONS:
Spindle Capacity 5C Collets - Round............1-1/16"
Spindle Capacity 5C Collets - Hex............7/8"
Step Chucks............1-1/16" to 6"
Variable Spindle Speed:
- With 5C Collet............0 - 4,000 RPM
- With 6" 3-Jaw Chuck............0 - 3,000 RPM
Swing Over Bed............11"
Swing Over Cross Slide............6"
Swing Over Carriage............9"
Distance Between Centers............18"
Hole thru Spindle............1-1/4"
Compound Slide Travel............3"
Carriage Power Feed Range............5/16" - 7 IPM
Cross Slide Power Feed Range............3/16" - 4 IPM
Tailstock Spindle Travel............3-3/4"
Tailstock Spindle Taper............No. 2 MT
Lead Screw Diameter............1" - 8" Thread
Range of Threads (36) - Inch............11" - 108" TPI
Electrics............220V/3Ph/60Hz
Dimensions - Approximate............73"L x 30"W x 67"H
Weight - Approximate............2,530 Lbs.

EQUIPPED WITH:

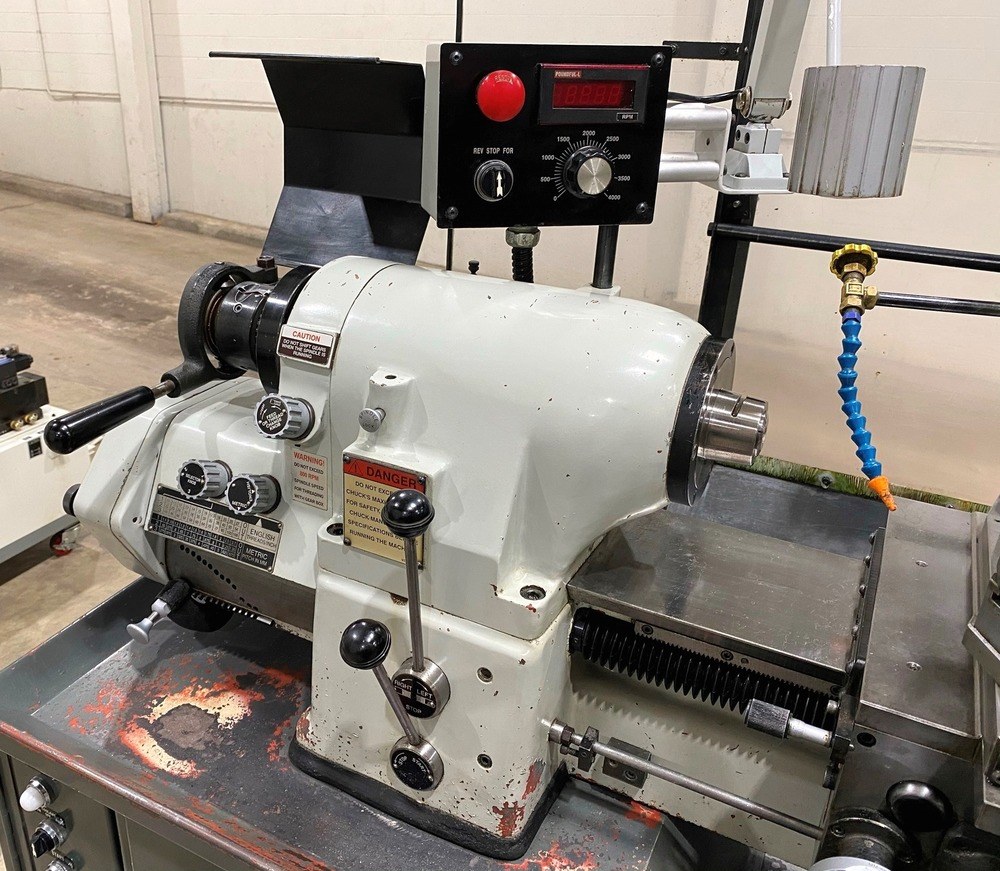

Variable Frequency Drive (Spindle)

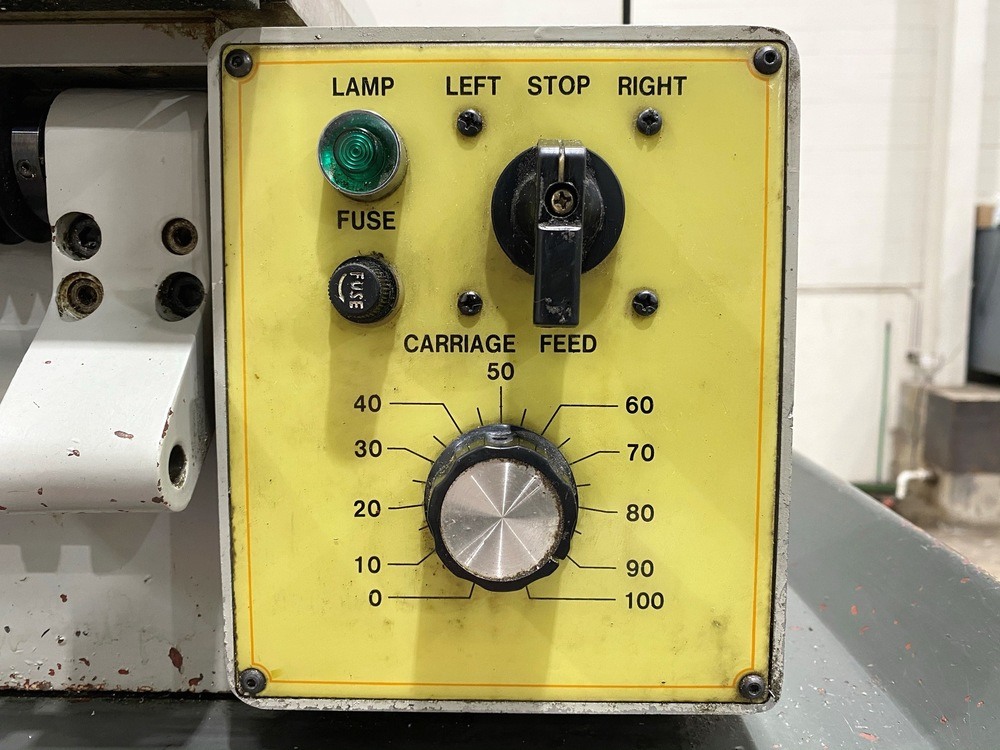

Electric Variable Feed Control on Carriage and Cross Slide

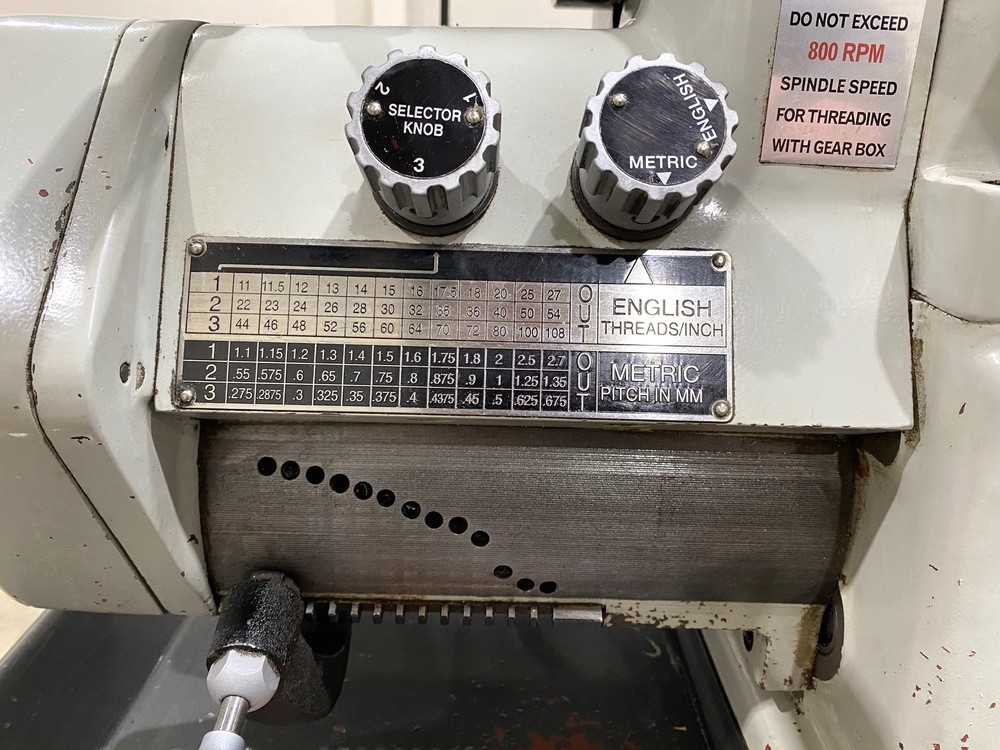

Inch Metric Threading Package
Inch and Metric Quick ReadingDial Handwheels

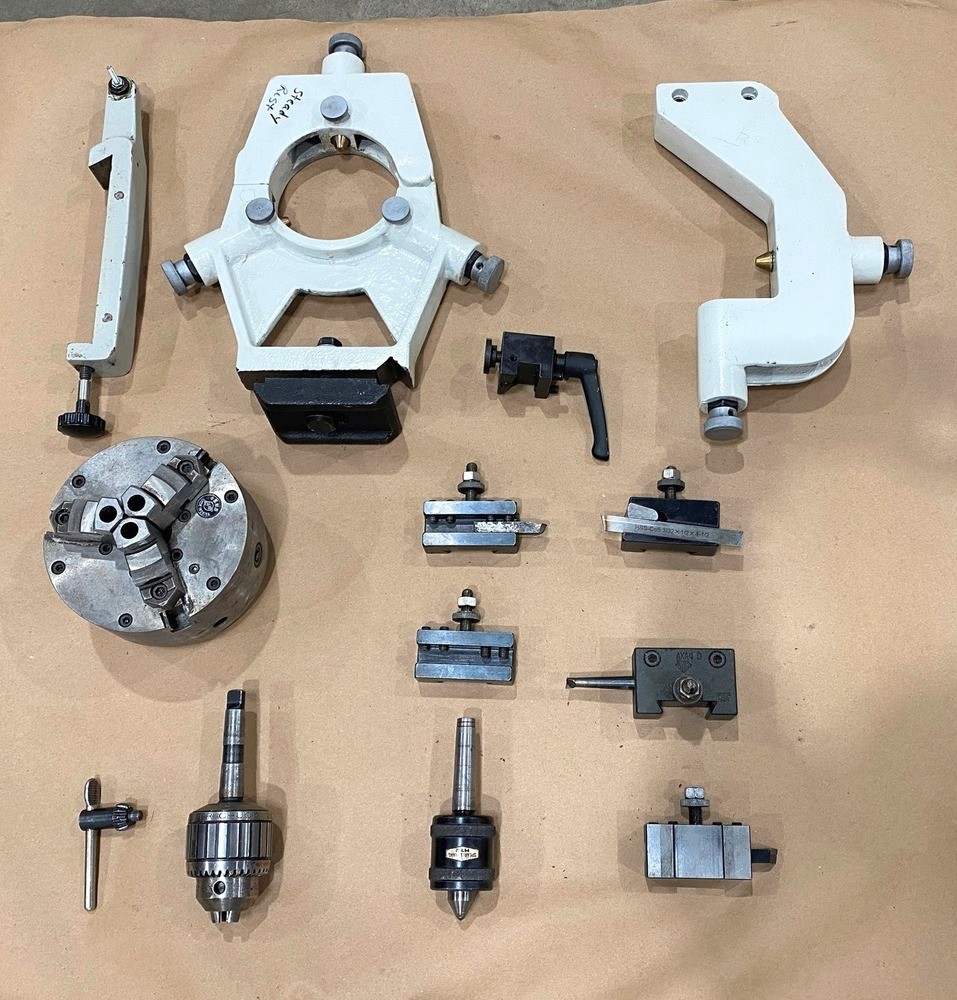

Steady Rest, Follow Rest
6" 3-Jaw Chuck (Zero-Set w/Back Plate)
Turning and Facing Tool Holders
Quick Change Tool Post

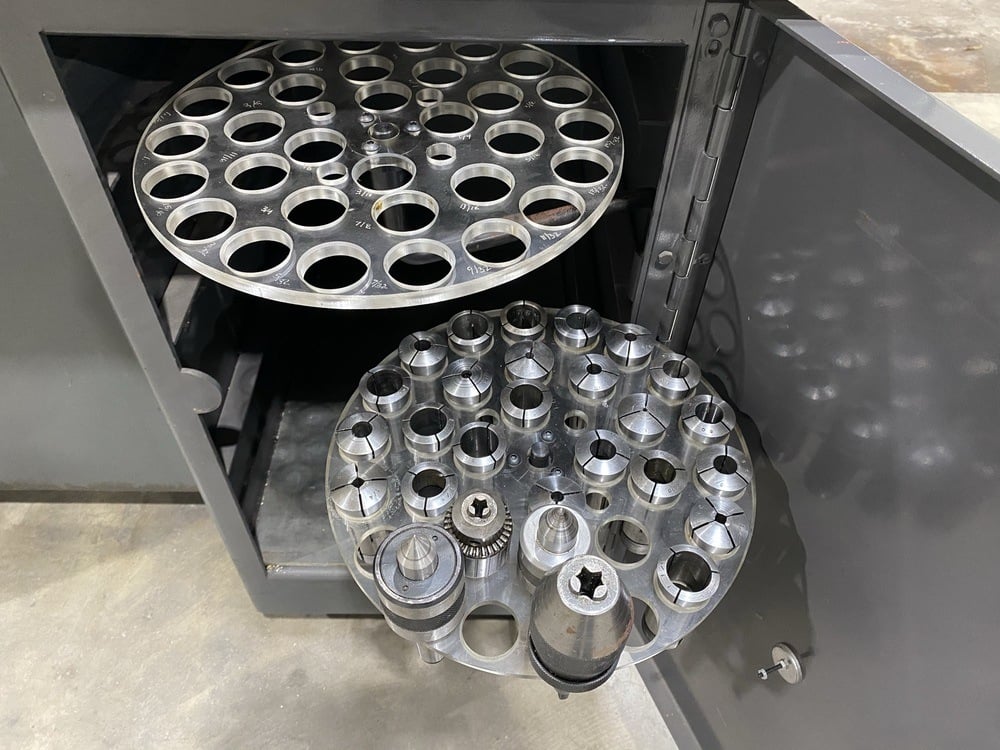

5C Collets, 5C Collet Closer
Coolant System
Halogen Work Light

*Preliminary Specifications Subject to Verification
