3/4" x 30" Eldorado Gun Drill Machine | Swing Away End Clamp, Step Pulleys - #50399

Liberty Machine # 50399 Category Make

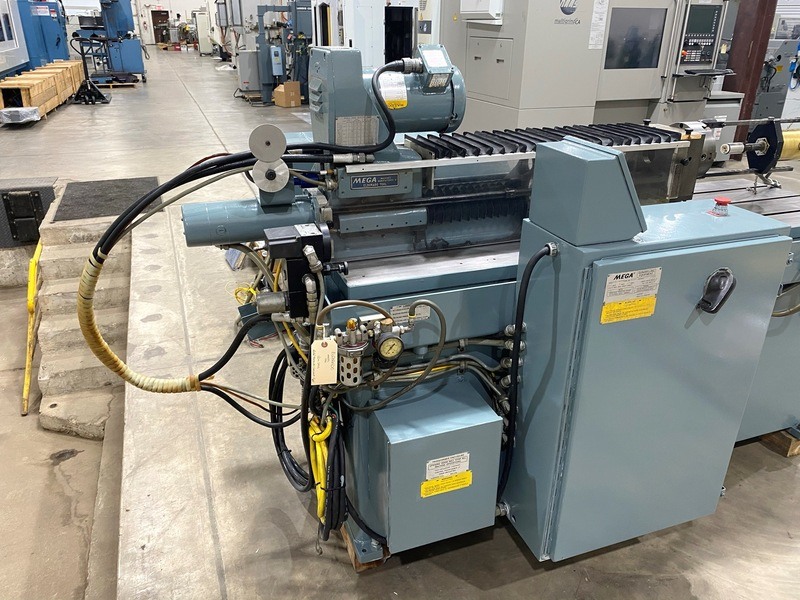

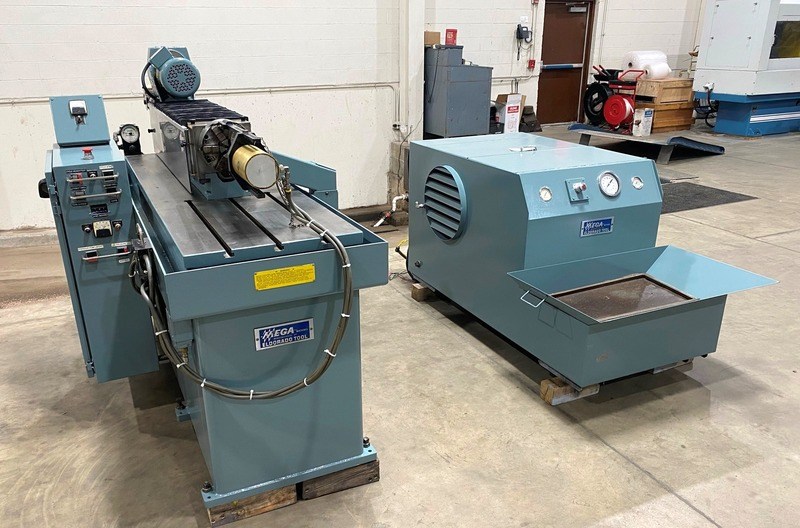

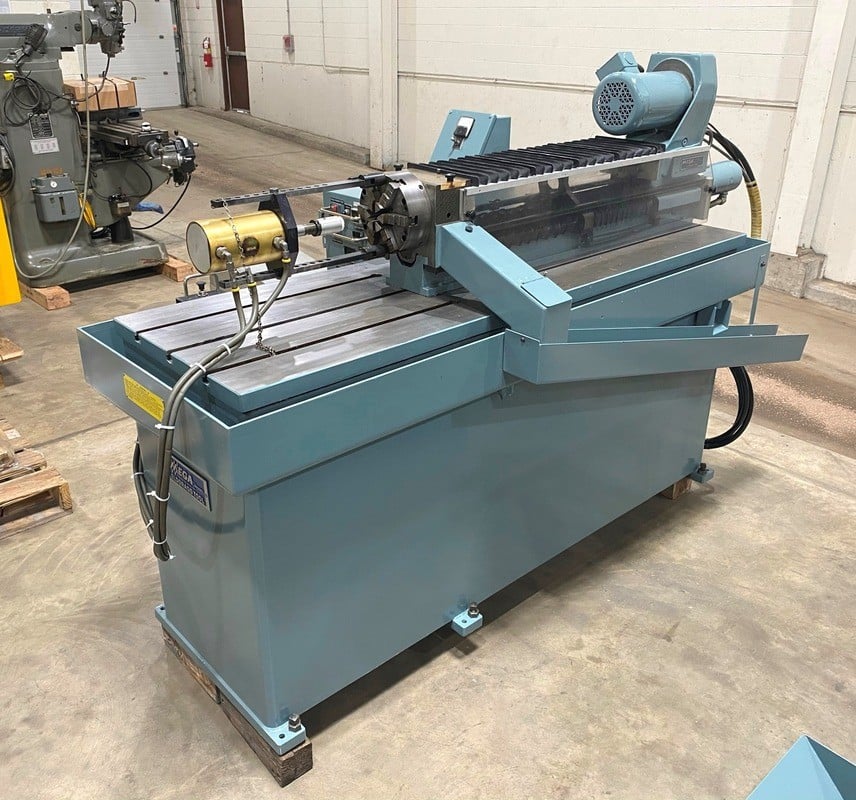

3/4" x 30" Eldorado Gun Drill Machine
New - 1990
Serial No. 1229

MACHINE SPECIFICATIONS:
Gundrilling Diameter Capacity - Mild Steel............0.055" - 0.75"
Ball Screw Stroke Length............30"
Fixture Table Area............26" x 22.25"
Center Line of Spindle to Table............8"
Spindle Speeds (18)............1,445 - 11,740 RPM
Ball Screw Feed Rate (DC Torque Motor w/Integral Tachometer)............0.1 - 99.9 IPM
Jog Reverse & Forward Feed Rate............200 IPM
Motor............2.0 HP

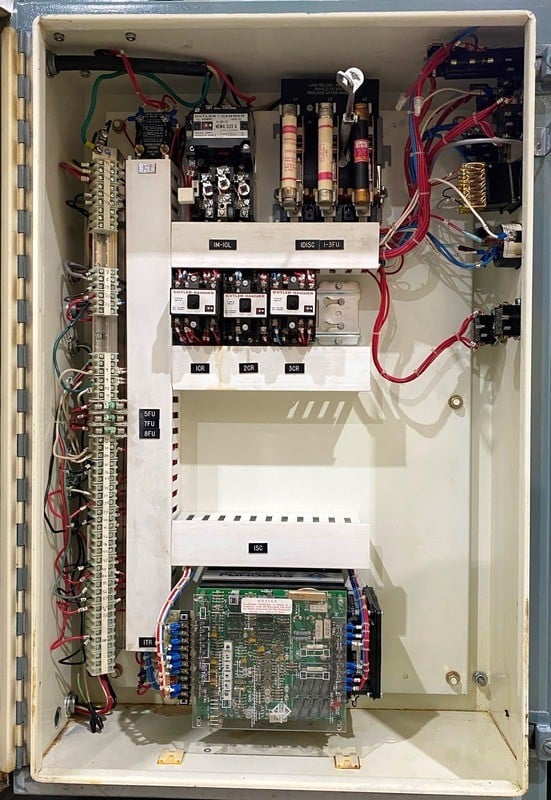

Electrics - Currently Configured............480/3/60
Gun Drill Machine:
- Dimensions - Actual............91" x 44" x 60" (H)
- Weight - Approximate............4,000 Lbs.

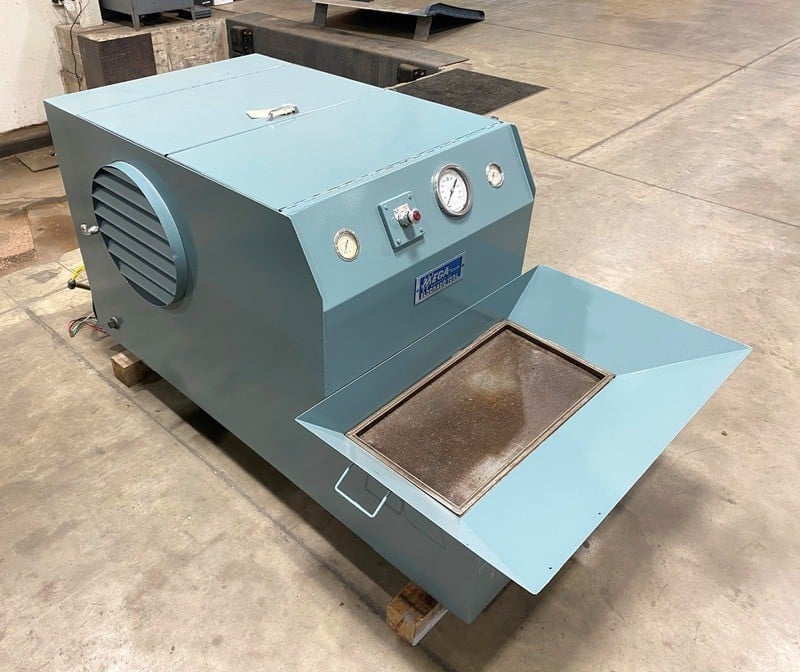

ELDORADO MEGA F-18 HIGH-PRESSURE COOLANT SPECIFICATIONS:
Coolant Pressure, Variable............200 – 2,000 PSI
Coolant Volume, Variable............0 - 18 GPM
Coolant Reservoir Capacity............90 Gallons
Dimensions - Actual............75" x 39.5" x 35" (H)
Approximate Dry Weight............1,000 Lbs.

FEATURES AND ACCESSORIES:
Eldorado Model #F-18 High-Pressure Coolant System
Mega Flo-Minder flow rate monitor
Spindle Load-Minder
Feed Thrust Meter

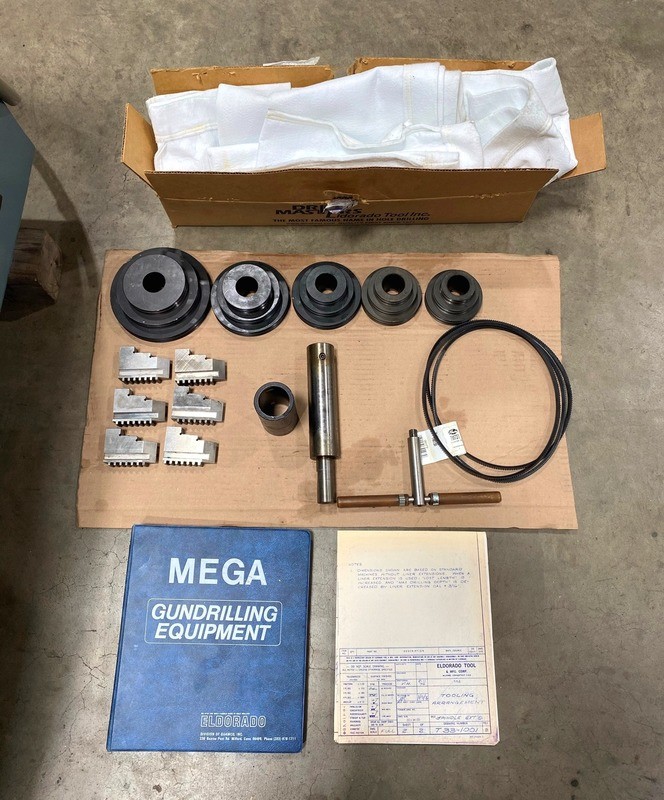

Buck, Key Adjustable 8" Scroll Type 6-Jaw Chuck w/(2) Jaw sets

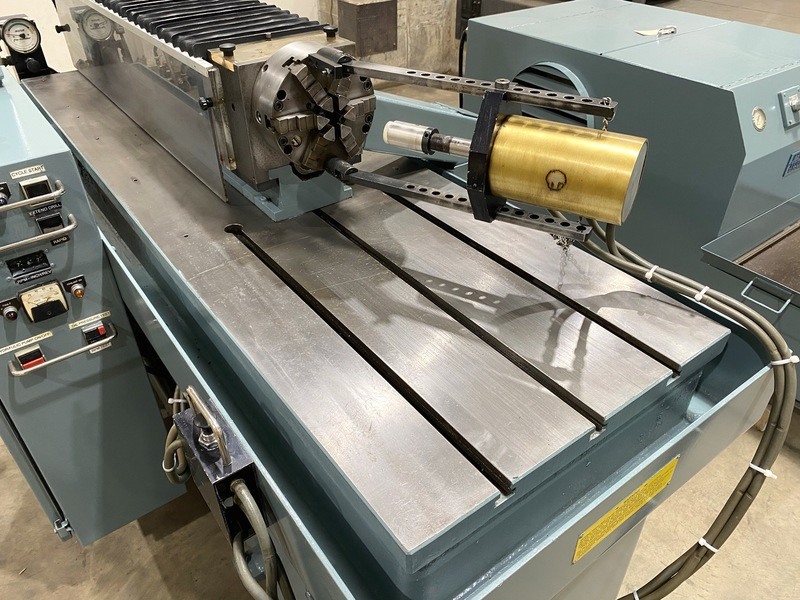

Air Actuated Precision Swing Away End Clamp
Automatic Lubrication System
Whip Guide

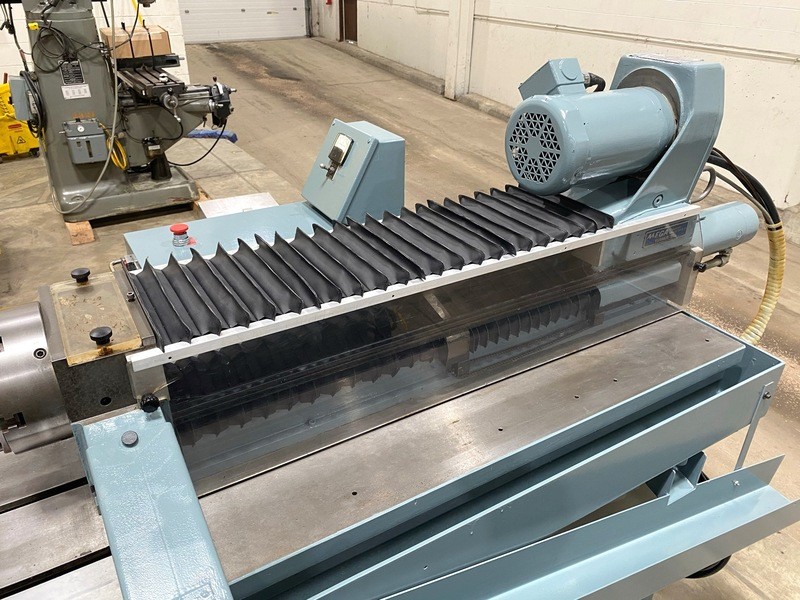

(5) Step Pulleys for Spindle Speed Changes
Books, Manuals, and Drawings

*Preliminary Specifications Subject to Verification
