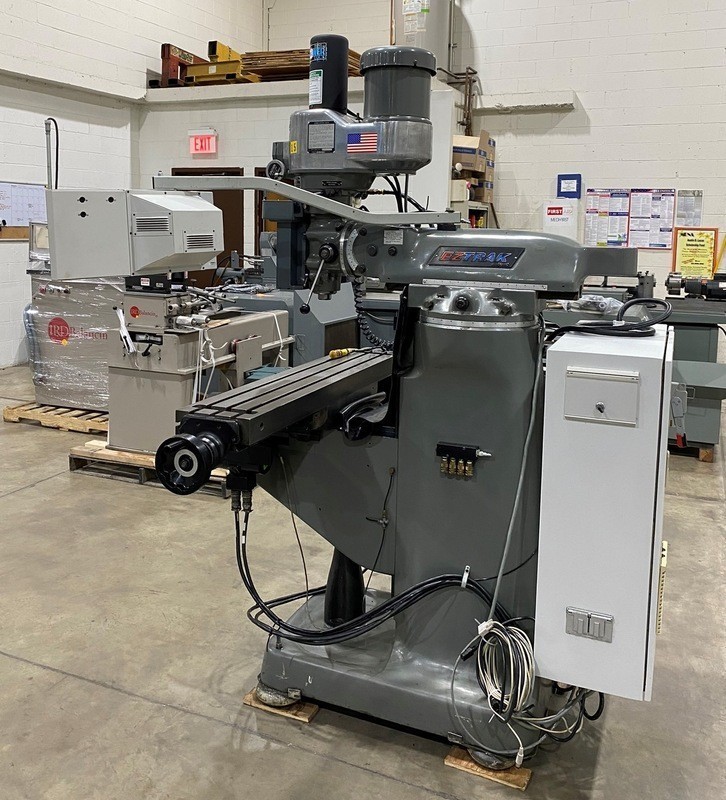

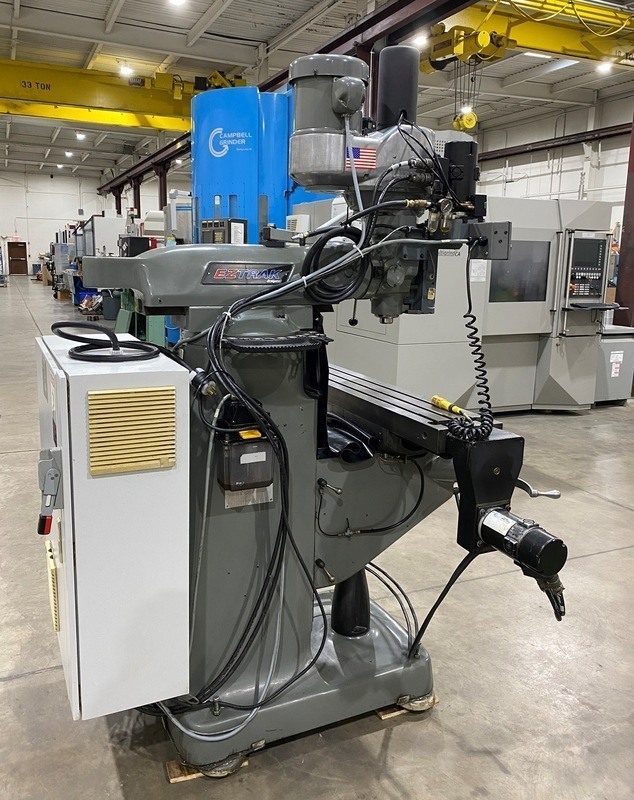

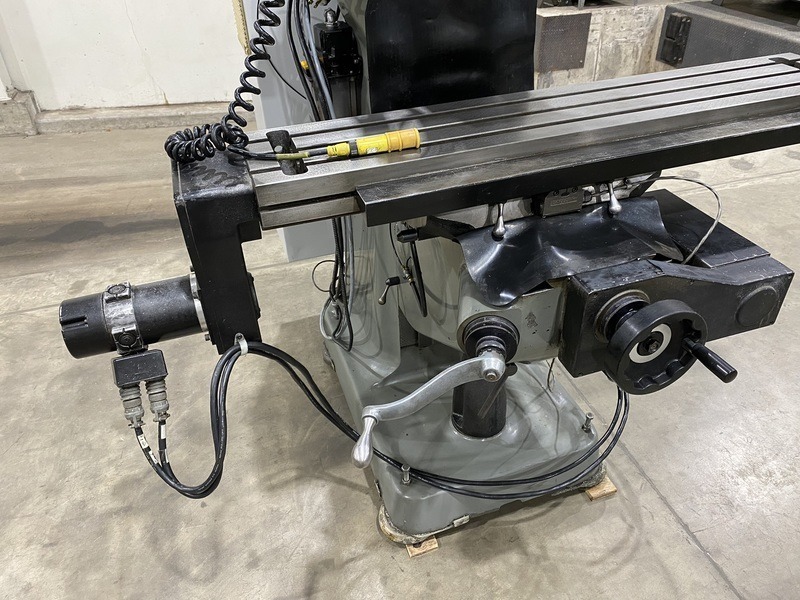

Bridgeport EZ Trak I | 9″ x 48″ Tbl, 30″X, 12″Y, 16″Z(Knee), 3-Axis CNC, ’04 – #50869

Year Built - 2004
Serial No. BR281945E

SPECIFICATIONS:

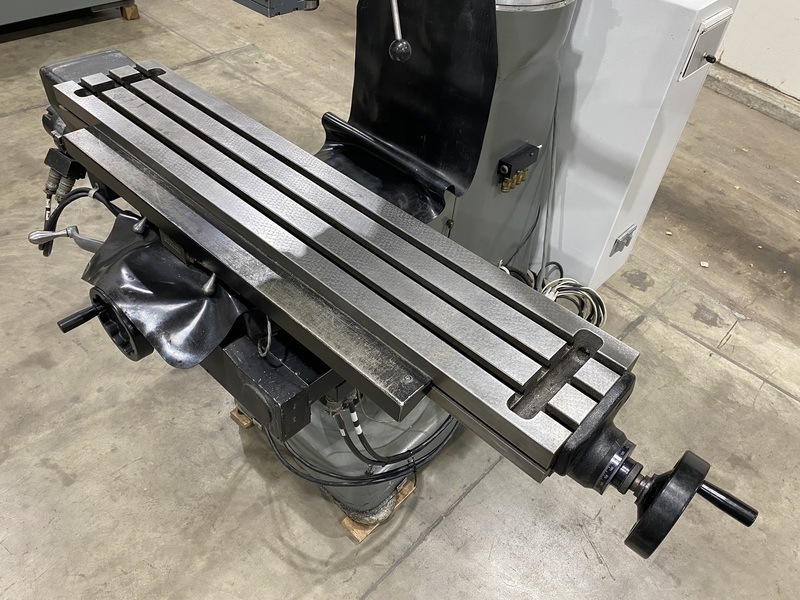

Table Size............9" x 48"
T-Slots............3 @ 2.5" (0.625" size)
Table Travel - X Axis............30"
Saddle Travel - Y Axis............12"
Quill Travel............5"
Quill Travel w/3rd Axis............4.5"
Ram Travel............12"
Knee Travel - Z Axis............16"
Throat Distance............6.75" - 18.75"
Table To Spindle Nose Gage Line............2.5" - 18.25"
Spindle Speeds:
- Hi............500 - 4200 RPM
- Low............60 - 500 RPM
Spindle Diameter............1.875"
Quill Diameter............3.375"
Spindle Taper............R-8
Spindle Motor............3 HP (2HP Continuous)
Positioning - Auto or Manual (X,Y)............100 IPM
Feedrate Range (X,Y)............0.1 - 100 IPM
Increments - Minimum............0.0001 in.
Positioning:
- Accuracy............±0.001"
- Repeatability............±0.0008"
Resolution - Input/Servo/Display............0.0001"
Dimensions - Approximate............96"L x 86"W x 90"H
Weight - Approximate............2900 Lbs.

OVERVIEW BRIDGEPORT EZ-TRAK "DX" NEWER STYLE CONTROL:
This machine can be operated in a fully programmable 3-Axis mode. It may be
operated utilizing 2-Axis CNC control (X, Y) and Manual Quill Operation or it
may be operated in a fully manual mode.

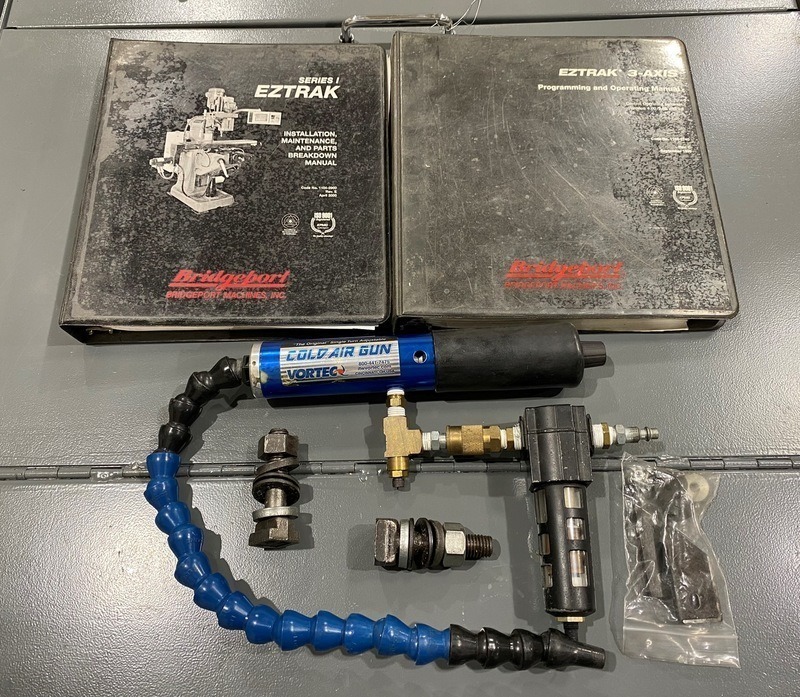

EQUIPPED WITH:
E-Z Trak Model DX 3-Axis (New Style) CNC Controller

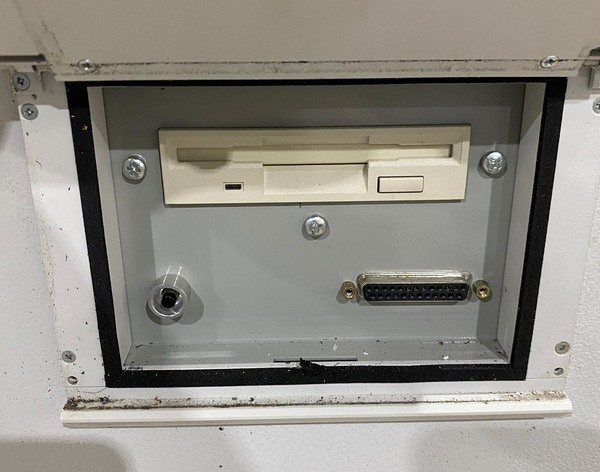

RS 232 Bi-Directional communication port
Simultaneous 2 Axis Linear or 2 Axis Circular Interpolation
Absolute and Incremental programming
BPC2M PC Control system manufactured by Bridgeport Machines

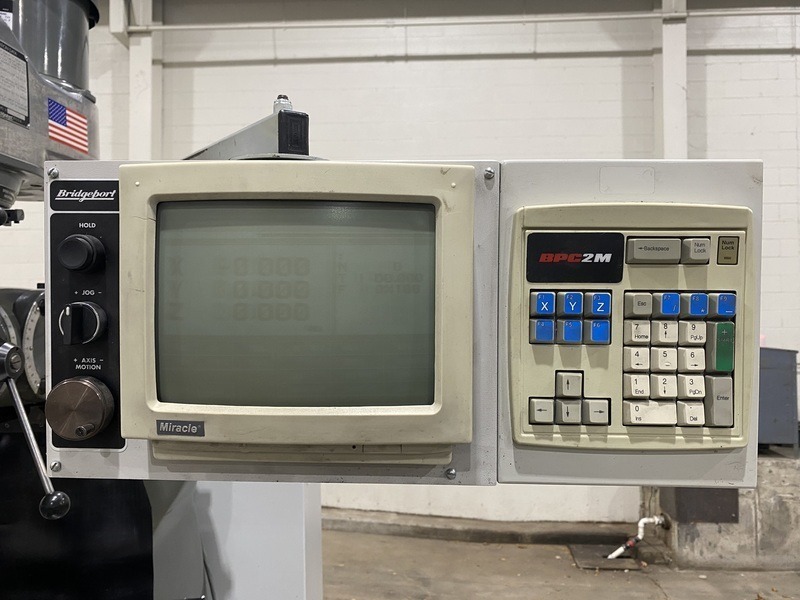

9 inch monochrome conversational display
Automatic corner rounding
Mathematical help modes
Powerful canned cycles for machining arcs, diagonals, circles, bolt hole patterns, pocket milling, and more
Cutter diameter compensation
English/metric conversion
1000 block program storage
Kurt Power Draw Bar

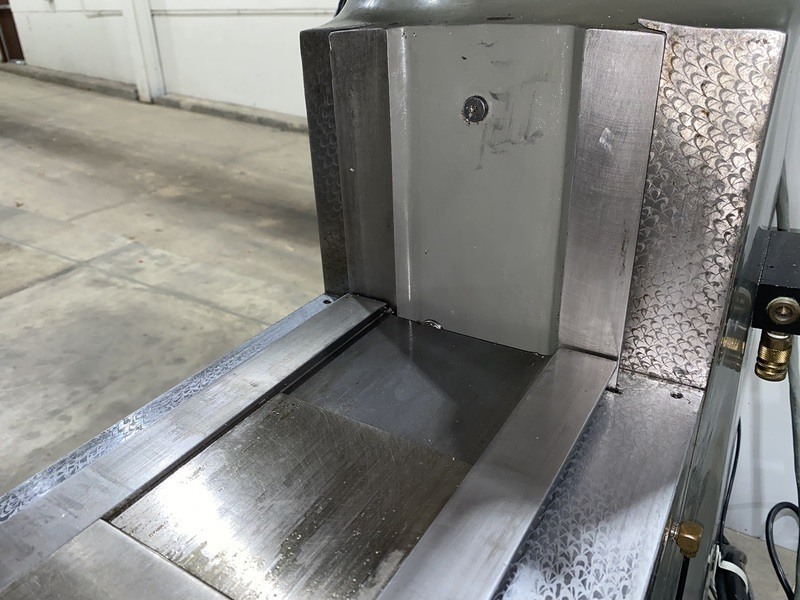

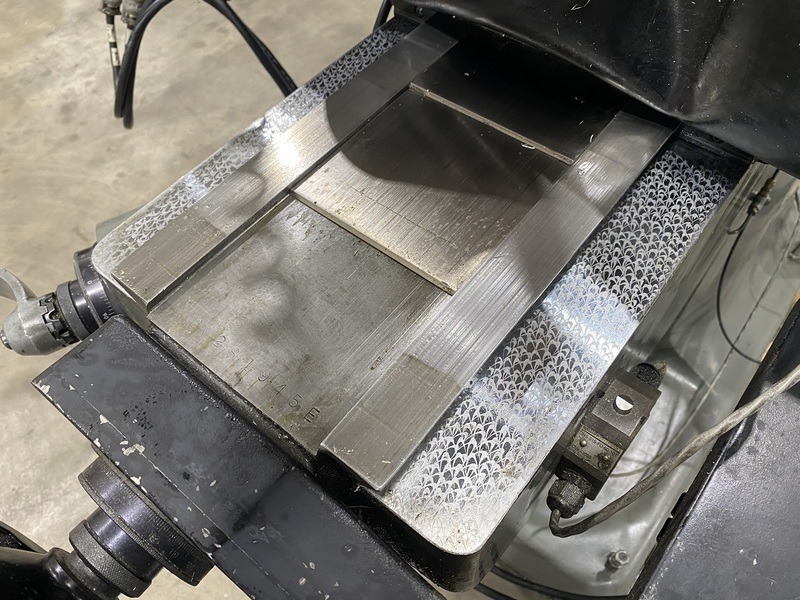

Chrome Ways

*Preliminary Specifications Subject to Verification.
