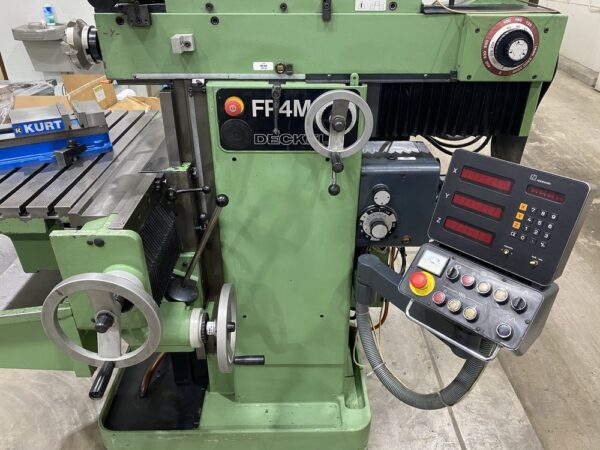

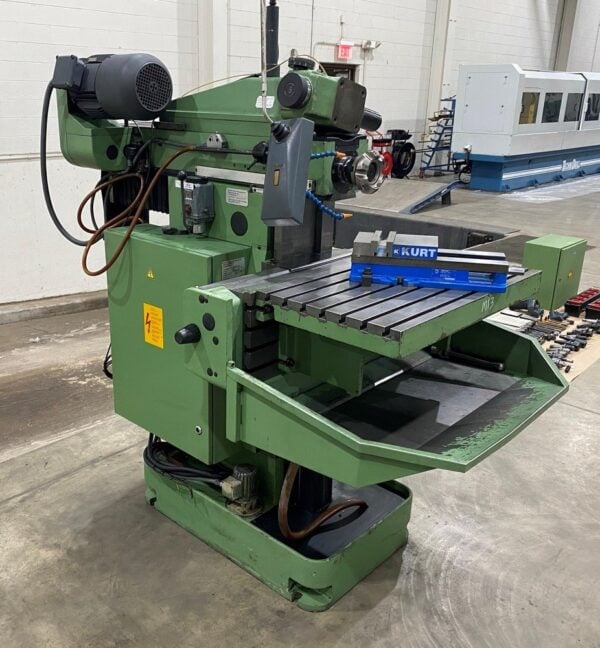

Deckel FP4M Toolmakers Universal Milling Machine
New – 1986
Serial No. 2203-1458
SPECIFICATIONS:
Longitudinal Travel (X-Axis)…………19.7″
Transverse Travel (Y-Axis)…………15.7″
Vertical Travel (Z-Axis)…………15.7″
Quill Stroke (Z-Axis)…………3.5″
Vertical Cutter Head Adjustment Range on Headstock…………5.9″
Work Surface…………31.6″ x 18″
Number of T-Slots…………7
Distance Between Slots…………2.5″
Maximum Table Load – Approximate…………880 Lbs.
Main Spindle Drive…………6 HP
Spindle Speed Range (18)…………50 – 2500 RPM
Speed Progression Factor…………1.25
Spindle Size…………NST 40
Feed Range (18)…………0.3 to 24.8 IPM
Rapid Traverse…………51.2 IPM
Dimensions – Approximate…………75″ x 48″ x 70″(H)
Weight – Approximate…………3,200 Lbs.
Deckel FP4M EQUIPPED WITH:
Convertible Vertical/Horizontal Application
Vertical spindle head w/axially adjustable quill (may be tilted to any angular position)

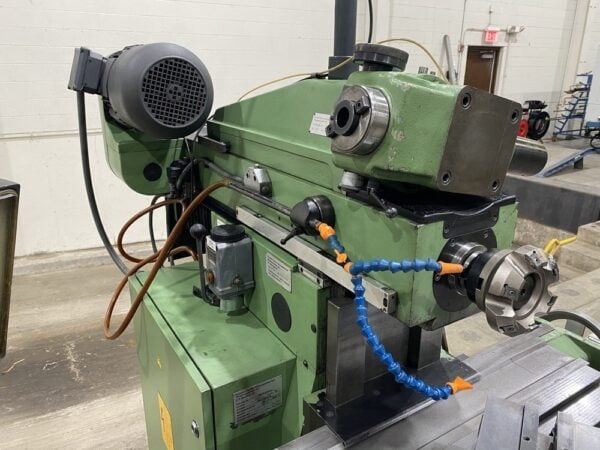

Dedicated horizontal spindle
Arbor support bearing
Main drive motor w/brake
Centralize lubrication of slideways
Electric coolant pump
Angular table

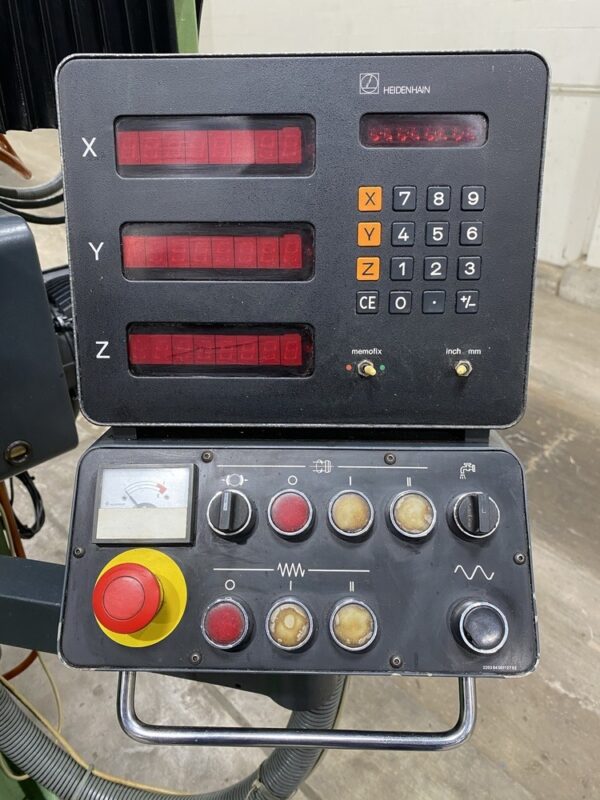

Heidenhain 3-Axis DRO (Glass Scales, In/mm)

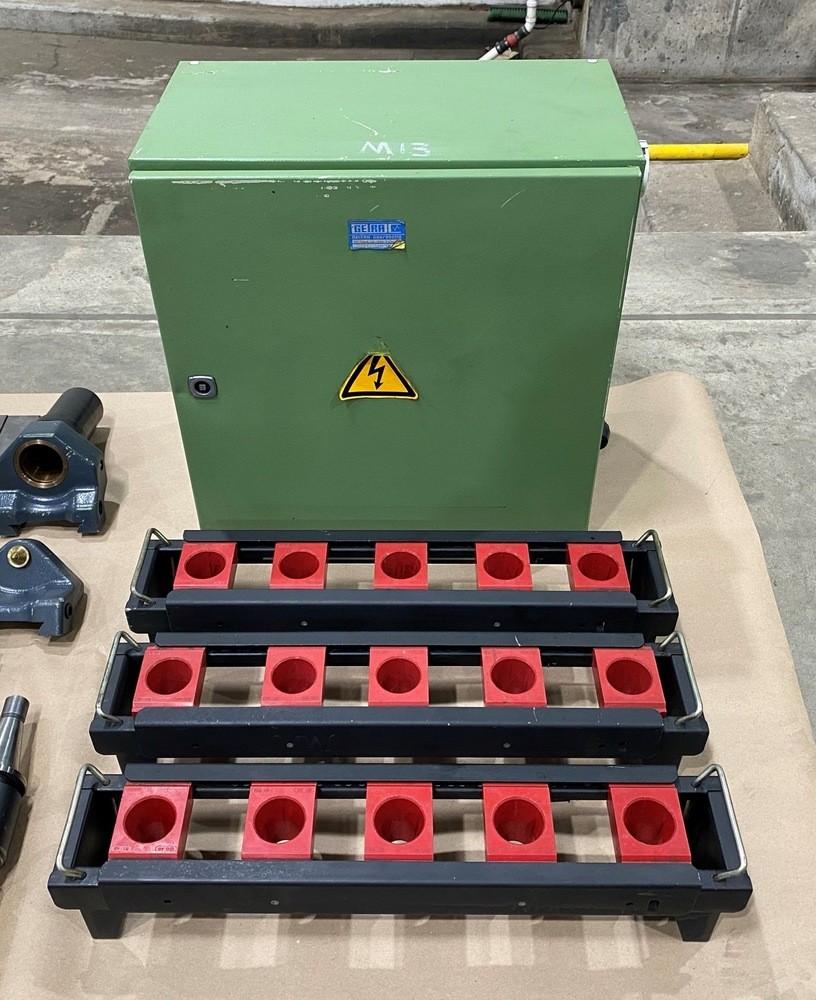

Deckel OEM Transformer

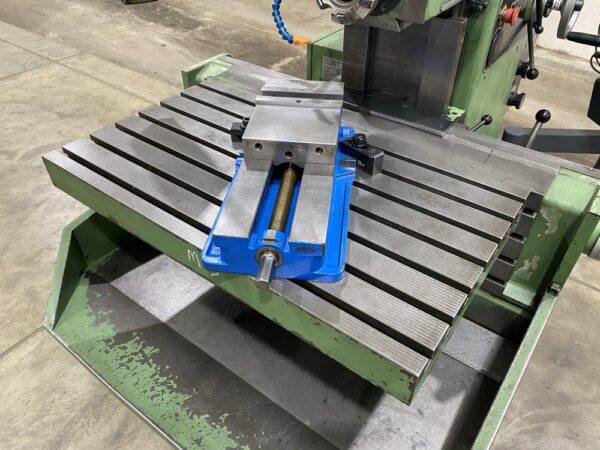

Kurt 6″ model D688 Anglock Vise

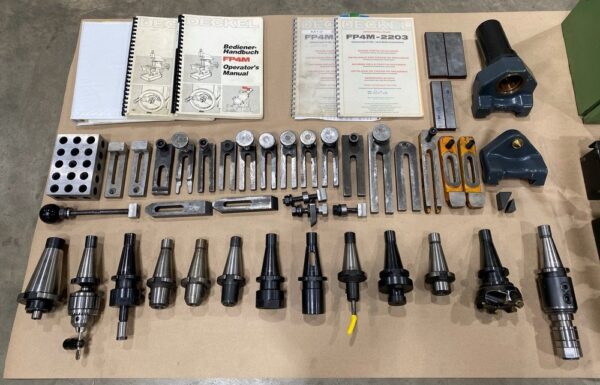

Miscellaneous hold downs and tool holders
Documentation:
– Operator’s Manual
– Spare Parts Catalogue
– Electrical Schematics
*Preliminary Specifications Subject to Verification
The Deckel FP4M toolmaker’s mill is a highly regarded milling machine known for its exceptional precision and advanced features. Manufactured by Deckel Maho, a renowned German company, the FP4M is a versatile machine that finds its place in tool and die making, prototyping, and small-scale production.
The FP4M boasts a solid construction, high-quality components, and precise engineering. It offers a wide range of milling operations, including vertical and horizontal milling, drilling, and tapping. With its advanced control system, the machine enables intricate and complex machining tasks with remarkable accuracy and repeatability.
Equipped with a tilting and rotating headstock, the Deckel FP4M facilitates multi-axis machining, allowing for the creation of complex contours and profiles. It also features a high-speed spindle and rapid tool changes, enhancing productivity and efficiency.
The Deckel FP4M toolmaker’s mill remains highly sought after by professionals in the machining industry who prioritize precision, versatility, and reliability. Its reputation as a top-notch milling machine speaks to its enduring value and continued relevance in modern manufacturing processes.
