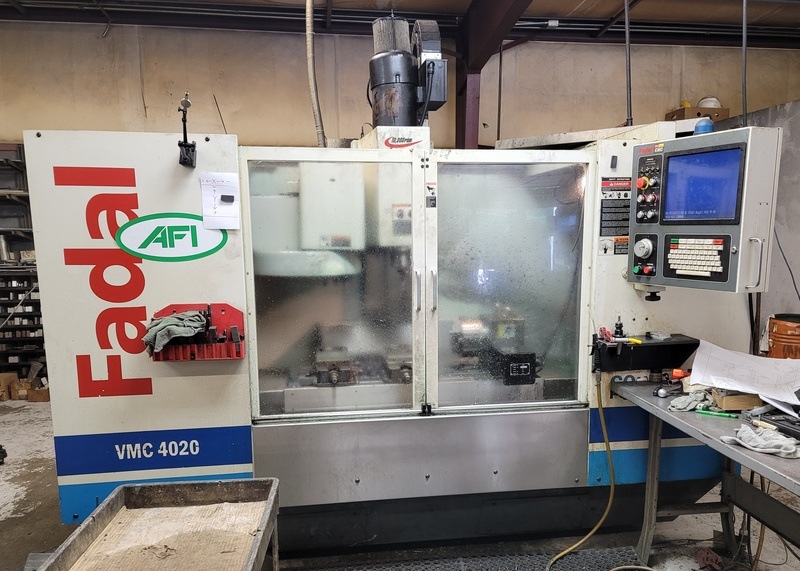

Fadal 4020 AHT | 40″X, 20″Y, 20″Z, Vertical Machining Center w/4th Axis – #48281

Liberty Machine # 48281 Category Make

Fadal 4020 AHT

New – 1997
SPECIFICATIONS:
Travels:
– X-Axis…………40″
– Y-Axis…………20″
– Z-Axis…………20″
Rapid Traverse Rates…………900 IPM
Spindle Nose to Table – Minimum to Maximum…………4″ – 24″
Table:
– Length…………48″
– Width…………20″
– Number of standard T-Slots…………5
– T-Slot Width…………5/8″
– Weight on Table – Maximum…………3500 Lbs.
Spindle:
– Taper Size…………CAT 40
– Speed Range…………0 – 10,000 RPM
– Power…………20 HP
– Torque – Maximum…………230 Ft-Lb @ 500 RPM
Automatic Tool Changer:
– Capacity…………30+1
– Tool Weight – Maximum…………15 Lbs.
– Tool Diameter – Maximum…………6″
– Tool Length – Maximum…………15″
– Tool Changing Time…………4.2 sec.
Air Requirement…………100 PSI, 4 scfm
Electrics…………480V/1 kVA/3PH
Overall Dimensions – Approximate…………122″ x 100″ x 100″ H
Weight – Approximate…………12,500 Lbs.

Fadal 4020 EQUIPPED WITH:
Fadal Control
4th-Axis Ready
Thru Spindle Coolant
21 Station Automatic tool changer
Floppy Drive
Rigid Tapping
User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
Brushless Type Servo Drive Motors on all axes
Programmable Coolant
Telescopic Way Covers
Chip Auger
Flood Coolant system

Preliminary Specifications Subject to Verification*

Vertical machining centers (VMCs) like the Fadal 4020 are versatile and widely used machine tools in the manufacturing industry. They are designed to perform various machining operations on metal, plastic, and other materials with high precision and efficiency.

VMCs feature a vertically oriented spindle that holds the cutting tool, which moves along multiple axes to shape and cut the workpiece. The workpiece is typically held in place on a table that can be moved in different directions, allowing for precise positioning and machining. VMCs are equipped with computer numerical control (CNC) systems, enabling automation and precise control over the machining process.

One of the key advantages of VMCs like the Fadal 4020 is their ability to perform a wide range of machining operations, including milling, drilling, tapping, and boring. They can handle complex geometries, intricate designs, and tight tolerances, making them suitable for applications in industries such as aerospace, automotive, medical, and mold making.

VMCs like the Fadal 4020 offer high productivity and efficiency due to their ability to perform multiple operations in a single setup. The vertical orientation of the spindle allows for easy chip removal, reducing downtime and improving machining speed. Additionally, VMCs often have tool changers that can automatically swap out tools, further enhancing productivity.

To find out more about vertical machining centers click HERE and HERE.
