Fadal VMC 4020 HT | 40"X, 20"Y, 20"Z, 48" x 20" Tbl, 10K RPM, 4th Ready, 2005 - #50452

Liberty Machine # 50452 Category Make

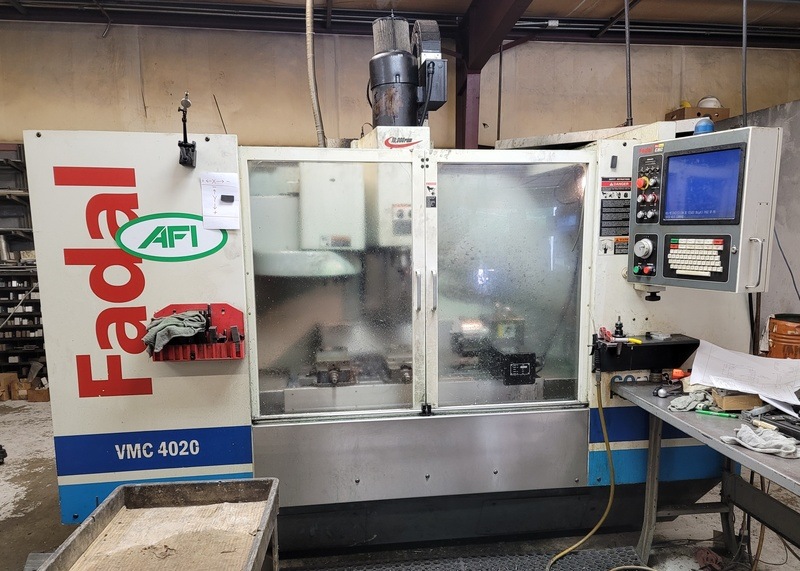

Fadal VMC 4020 HT
New - 2005

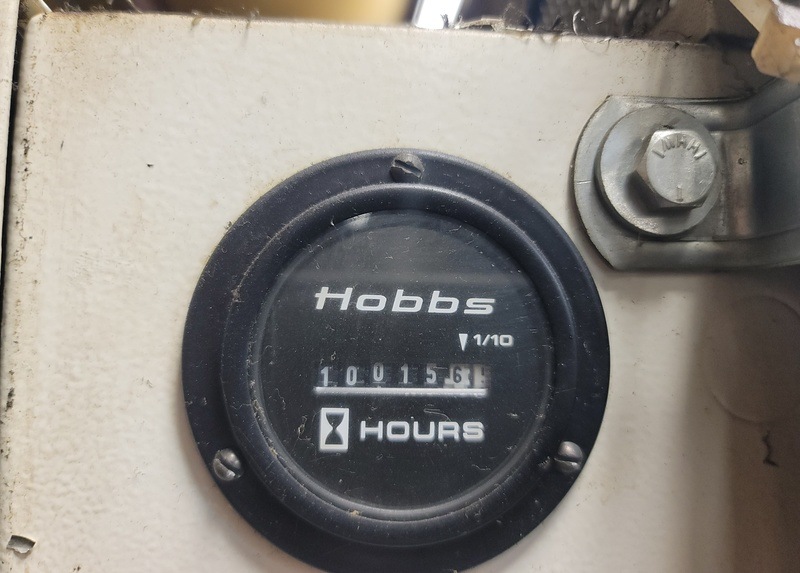

Runtime - 10,015 Hours

SPECIFICATIONS (Fadal VMC 4020 HT Catalog):
Travels:
- X-Axis............40"
- Y-Axis............20"
- Z-Axis............20"
Rapid Traverse Rates............900 IPM
Spindle Nose to Table - Minimum to Maximum............4" - 24"
Table:
- Length............48"
- Width............20"
- Number of standard T-Slots............5
- T-Slot Width............5/8"
- Weight on Table - Maximum............3500 Lbs.
Spindle:
- Taper Size............CAT 40
- Speed Range............0 - 10,000 RPM
- Power............20 HP
- Torque - Maximum............230 Ft-Lb @ 500 RPM
Automatic Tool Changer:
- Capacity............30+1
- Tool Weight - Maximum............15 Lbs.
- Tool Diameter - Maximum............6"
- Tool Length - Maximum............15"
- Tool Changing Time............4.2 sec.
Air Requirement............100 PSI, 4 scfm
Electrics............480V/1 kVA/3PH
Overall Dimensions - Approximate............122" x 100" x 100" H
Weight - Approximate............12,500 Lbs.

EQUIPPED WITH:
Fadal Control

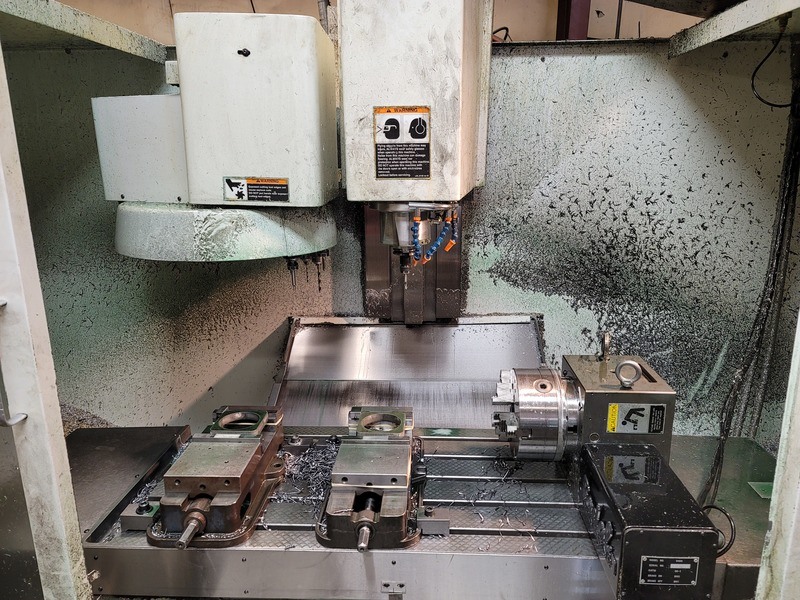

4th-Axis Ready
Thru Spindle Coolant
21 Station Automatic tool changer
Floppy Drive
Rigid Tapping
User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
Brushless Type Servo Drive Motors on all axes
Programmable Coolant
Telescopic Way Covers
Chip Auger
Flood Coolant system

Preliminary Specifications Subject to Verification*
