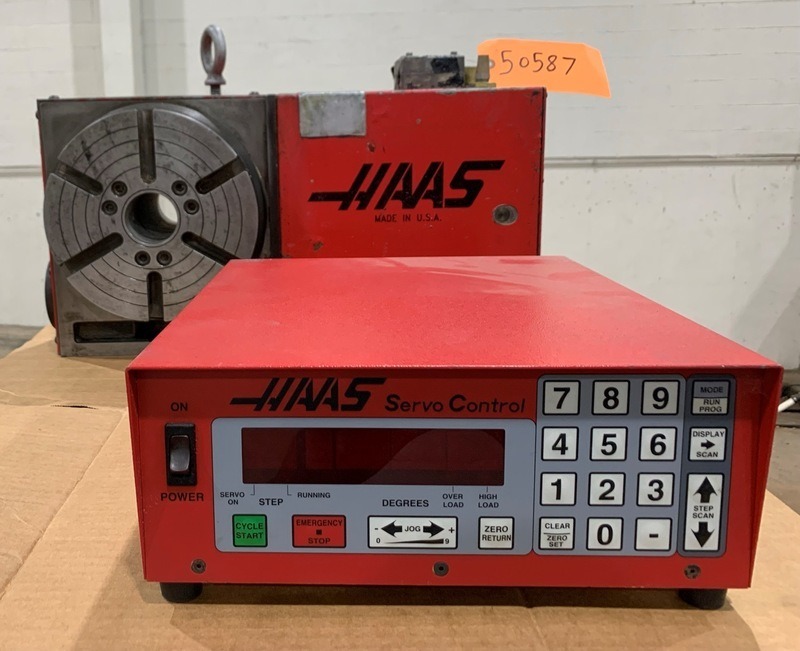

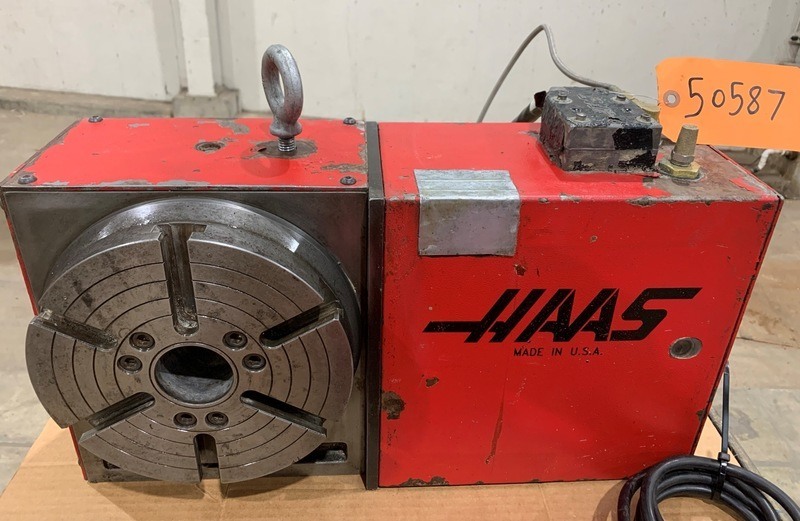

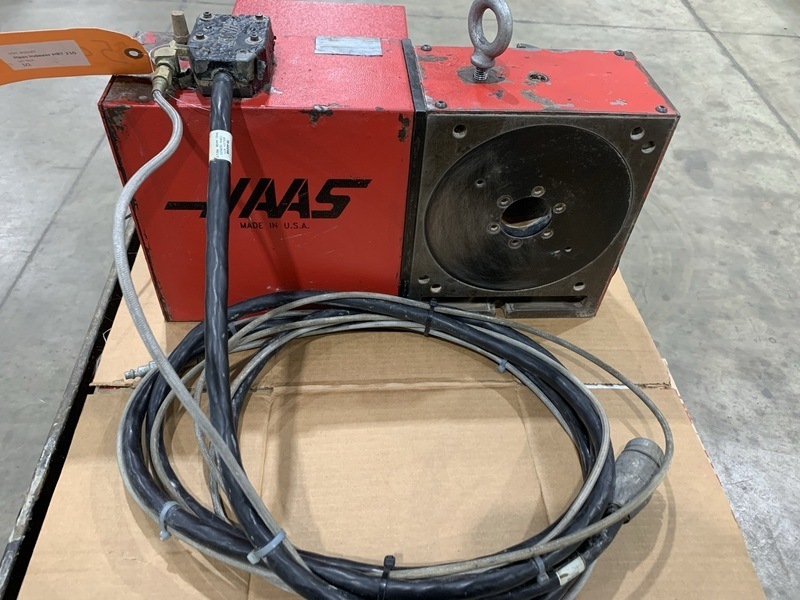

Haas HRT210 Indexer
Serial No. 211390
SPECIFICATIONS:
Platter:
– Diameter…………8.30″
– Number of Standard T-Slots…………6 at 60 Degrees
Weight on Platter – Maximum:
– With Support…………165 Lbs.
– Unsupported…………83 Lbs.
Spindle:
– Speed…………100 Deg/Sec
– Torque – Maximum…………210 Ft.-lbf
– Runout – Maximum…………0.0005″
– Center Height…………6″
– Backlash…………30 arc-sec
– Gear Ratio…………90:1
– Timing…………2:1
Indexing:
– Accuracy…………+-15 arc-sec
– Repeatability…………10 arc-sec
– Resolution…………0.001 Deg
– Worm Gear Diameter…………6.3″
Electrics…………115 VAC +- 10% at 15 A
Operating Temperature…………100 F
Air Pressure – Maximum…………150 psi
Dimensions – Actual…………21″ (L-R) x 7″ (F-B) x 12 1/4″ (H)
Weight – Catalog…………205 Lbs.
Haas Servo Control SCO1M s/n 991079:
– Axes…………1
– Encoder Lines…………2,000
– Software Version…………37
*Preliminary Specifications Subject to Verification.
Indexers for vertical machining centers (VMCs) like the Haas HRT210 are valuable accessories that enable multi-sided machining by rotating the workpiece around its axis. They provide the ability to perform multiple operations without the need for manual repositioning, increasing productivity and efficiency.
Indexers like the Haas HRT210 are typically mounted on the VMC’s table or integrated into its design. They consist of a rotary mechanism that can rotate the workpiece to precise positions at predefined intervals. The indexing can be performed in fixed increments (e.g., 90 degrees, 180 degrees) or in continuous motion, depending on the indexer type and application requirements.
The use of indexers like the Haas HRT210 offers several advantages. They allow for machining multiple sides or features of a workpiece without the need for complex setups or multiple machine operations. This eliminates the need for manual repositioning and reduces setup time, contributing to improved productivity and reduced machining costs.
Indexers like the Haas HRT210 enable the VMC to perform machining operations on different faces of the workpiece with high accuracy and repeatability. This is particularly beneficial for machining complex parts, such as those used in aerospace, automotive, and medical industries, where precise alignment and positioning are critical.
To find out more about vertical machining centers click HERE and HERE.
