Haas VF3SS | 5-Axis, 48"x18"Tbl, 40"X, 20"Y, 25"Z, 12K RPM, Trunnion - #50575

Liberty Machine # 50575 Category Make

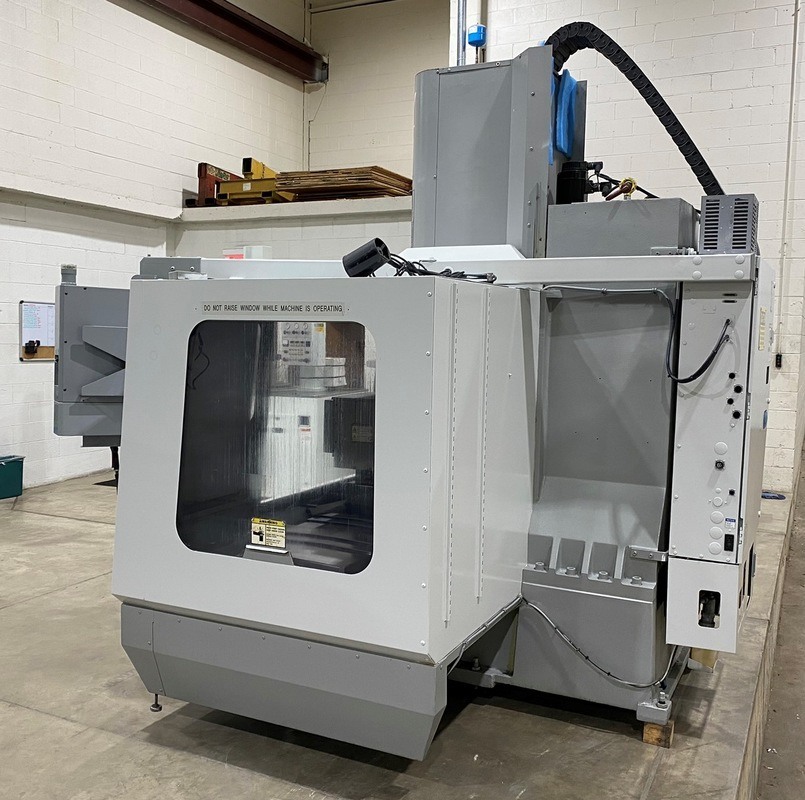

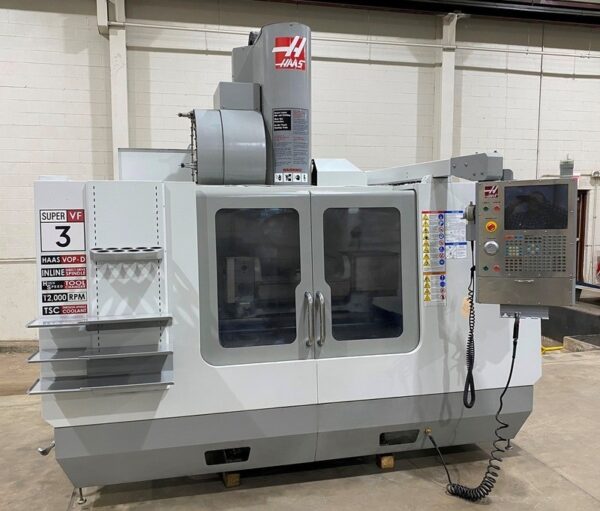

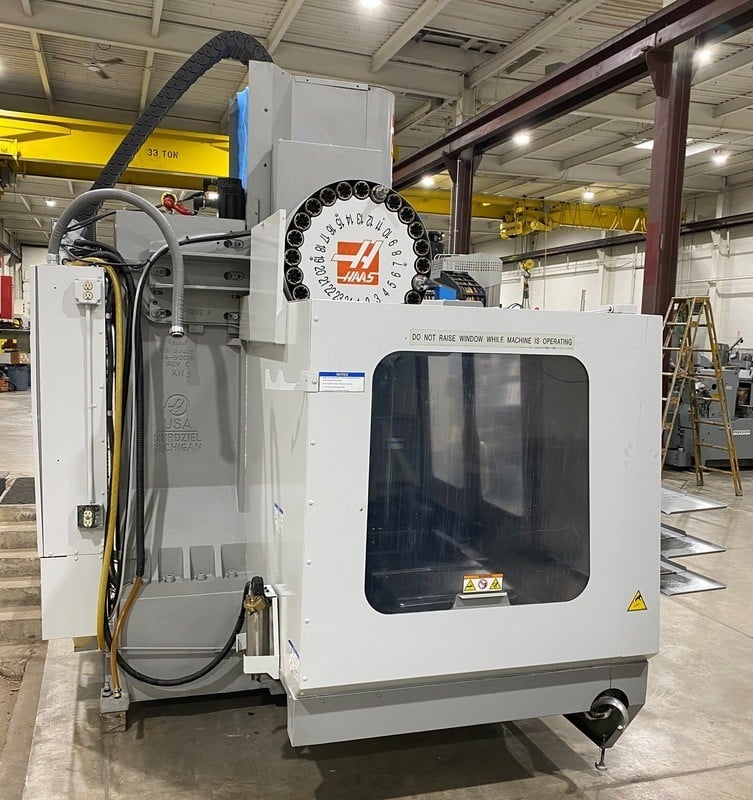

Haas VF3SS Vertical Machining Center
Machine Serial No. 1057124
New - 2007
Power on Time - 520:51:27
Cycle Start Time - 20316:07
Feed Cutting Time - 14796:57

SPECIFICATIONS:
Travels:
- X-Axis............40"
- Y-Axis............20"
- Z-Axis............25"
Rapid Traverse Rates............ 1400 IPM
Cutting Feed Rates............833 IPM
Spindle Nose to Table - Minimum to Maximum............4" - 24"
Table:
- Length............48"
- Width............18"
- Number of standard T-Slots............5
- T-Slot Width............5/8"
- Weight on Table - Maximum............1750 Lbs.
Spindle:
- Taper Size............40
- Speed Range............0 - 12000 RPM
- Type............Geared Head
- Power............30 HP Vector Dual Drive
- Torque - Maximum............90 Ft-Lb @ 2000 RPM
Automatic Tool Changer:
- Capacity............24+1
- Tool Weight - Maximum............12 Lbs.
- Tool Diameter - Maximum............5"
- Tool Length - Maximum............11"
- Tool Changing Time............1.6 Sec.
Air Required............100 PSI, 4 scfm
Electrics............220V, 66FLA, 3PH
Overall Dimensions - Approximate............118" x 96" x 100" (H)
Weight - Approximate............12,500 Lbs.

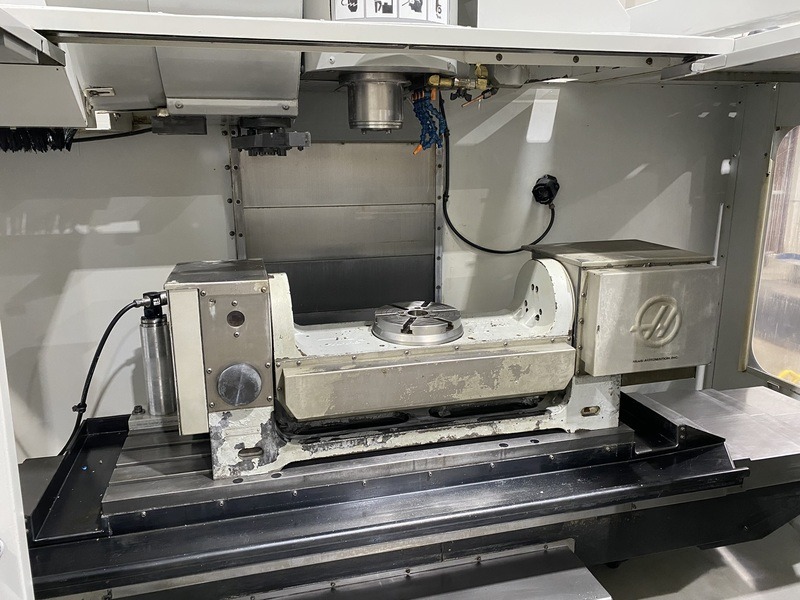

Model TR-210H Dual Axis Trunnion Rotary Table (4th-5th Axis):
Trunnion Serial No. 902405
- Platter Diameter............8.3"
- Weight on Platter - Maximum............200 Lbs.
- Part Swing - Maximum............23.5"
- Speed - Maximum............0.001 to 60 deg./sec.
- Torque - Maximum............210 Ft. Lbs.
- Indexing A Tilt............+ / - 120 Deg.
- Resolution.............0.001 Deg.
- Indexing B Rot............999.999 Deg.
- Weight of Unit - Approximate............815 Lbs.

EQUIPPED WITH:

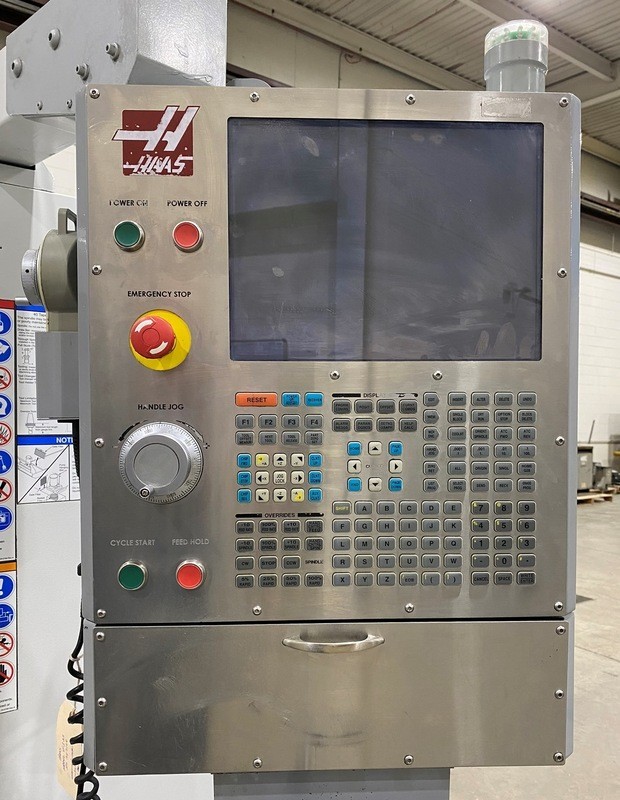

Super Speed Haas VOP-D
Model TR-210H Dual Axis Trunnion Rotary Table (4th-5th-Axis)

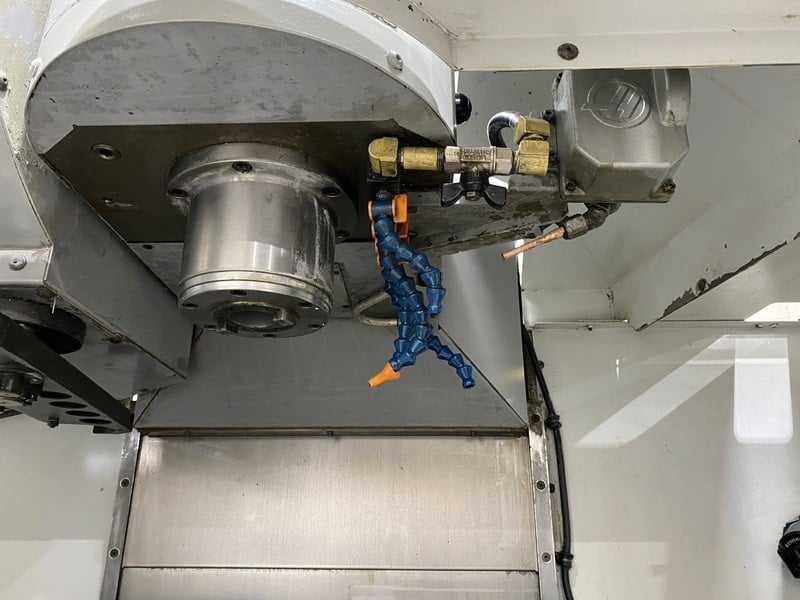

Inline Direct Drive Spindle (12,000 RPM)
High Speed Tool Changer (24 +1)
Programmable Coolant
TSC Through Spindle Coolant
Rigid Tapping

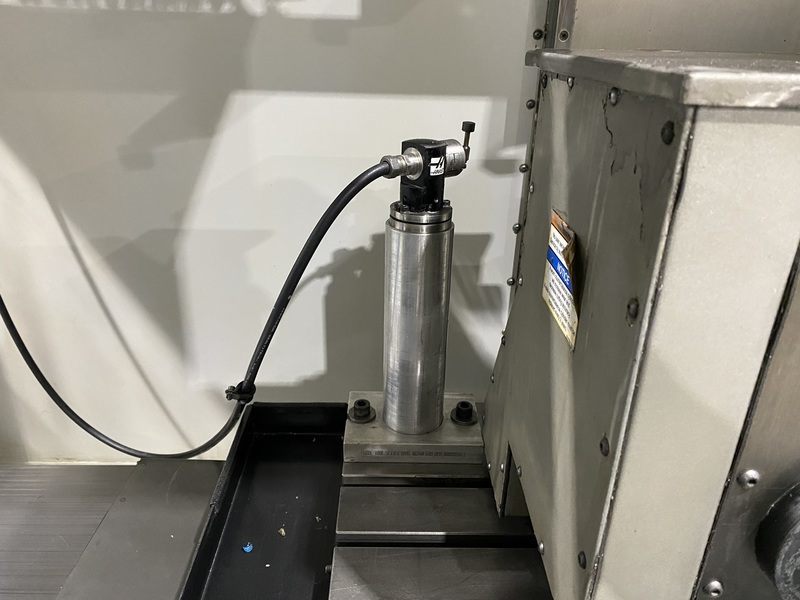

WIPS Probes (Renishaw) for Coordinate Rotation & Scaling
User Definable Macros, Spindle Orientation and Coordinate Scaling
USB Drive, Remote Jog Handle

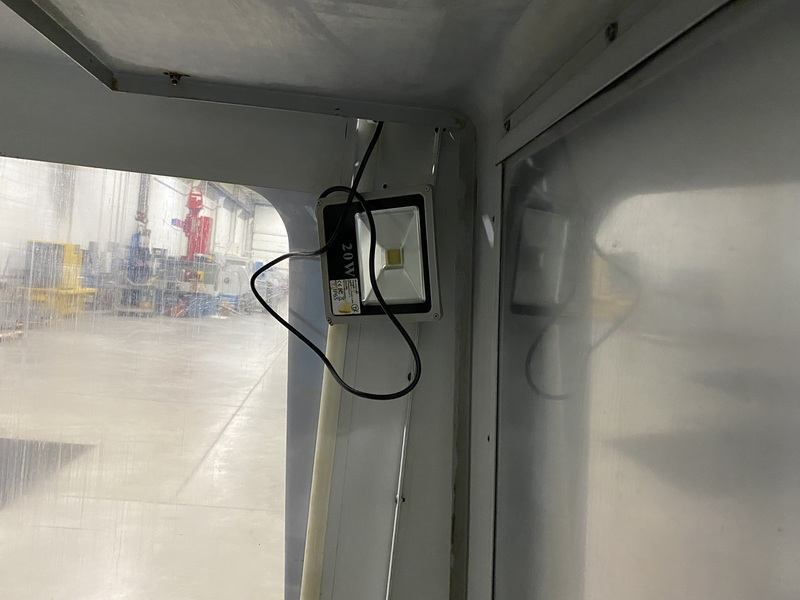

High Intensity Lighting
Brushless servo drive motors on all axes
Telescopic Way Covers

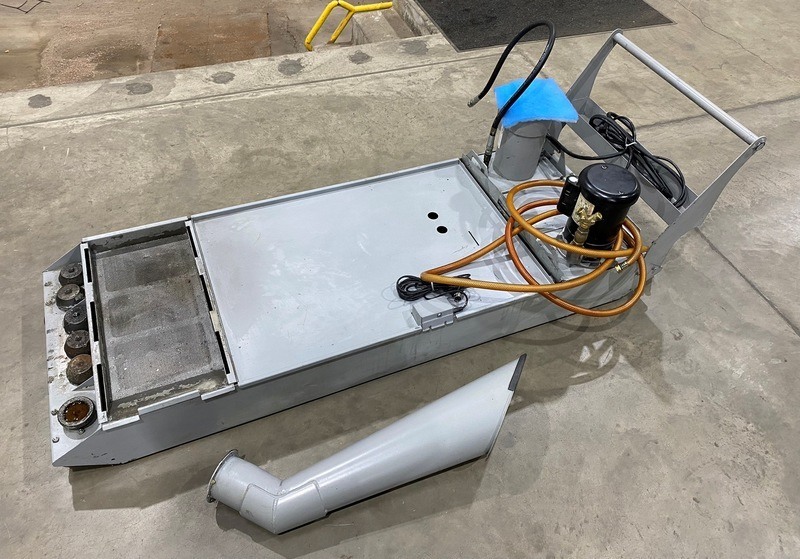

Chip Auger

Preliminary Specifications Subject to Verification*
