Click HERE if you have a Bridgeport CNC Vertical Mill to sell.
New – 2013
Serial No. HDNG2341FX
SPECIFICATIONS:
X-Axis Table Travel………………………………………………30″
Y-Axis Saddle Travel……………………………………………..12″
Quill Travel……………………………………………………..5″
Z-Axis Knee Travel……………………………………………….16″
Ram Travel………………………………………………………12″
Throat Distance………………………………………..6.75″ – 18.75″
Table to Spindle Nose Gauge Line………………………….2.5″ – 18.25″
Table………………………………………………………48″ x 9″
T-slot Centers………………………………………………3 @ 2.5″
T-slot Size…………………………………………………..0.625″
Weight of Workpiece – Maximum…………………………………750 Lbs.
Spindle Power…………………………………………………..2 HP
Spindle Taper……………………………………………………R-8
High Speed Range – Infinitely Variable…………………..500 – 4,200 RPM
Low Speed Range………………………………………….60 – 500 RPM
Milling Capacity – Mild Steel………………………………..2 CI/Min.
Boring Range – Mild Steel……………………………………..6″ Dia.
Electrics………………………………………………220V/3Ph/60Hz
Floorspace – Catalog……………………………………….100″ x 95″
Dimensions – Actual………………………………..69″(L-R) x 64″(F-B)
Height – Actual………………………………………………….86″
Weight – Approximate……………………………………….2,500 Lbs.

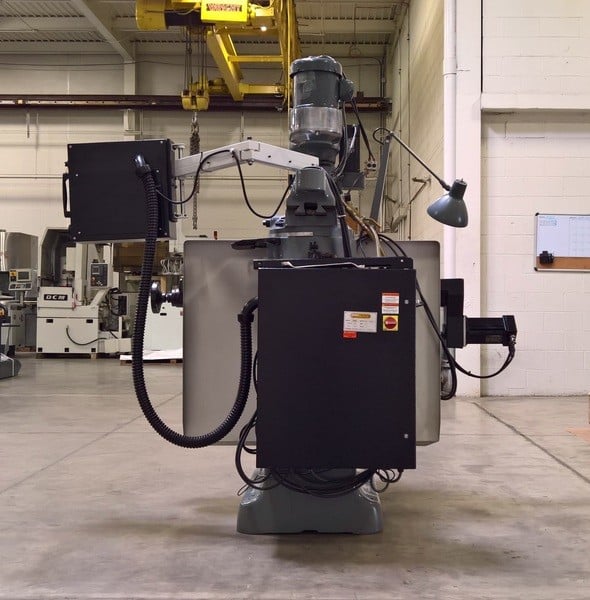

Bridgeport CNC Vertical Mill EQUIPPED WITH:
Fagor CNC 8055 MC Controller
Power Draw Bar
Chrome Ways
Bijur Electric Lubrication
Air Blow Off
Work Light
Fagor Training & Operations Manuals
*Catalog Specifications Subject to Verification
Vertical knee mills like the Bridgeport CNC vertical mill, also known as vertical milling machines or knee-type milling machines, are widely used in the metalworking industry for various milling operations. These machines are equipped with a vertically oriented spindle that is mounted on a knee, allowing the spindle to move up and down along the Z-axis.
Vertical knee mills offer versatility and flexibility in milling operations. They can perform tasks such as face milling, end milling, drilling, and boring on a variety of workpieces. The knee mechanism on a Bridgeport CNC vertical mill provides precise vertical movement, allowing for accurate positioning of the milling cutter.
One of the key features of vertical knee mills is their ability to accommodate large workpieces due to their robust construction and wide work tables. They can handle both small and large-scale projects, making them suitable for diverse applications.
Vertical knee mills like the Bridgeport CNC vertical mill are often equipped with digital readouts (DROs) or CNC control systems, enhancing precision and productivity. The DROs provide accurate measurement and positioning feedback, while CNC controls automate the milling process, allowing for complex operations and improved efficiency.
