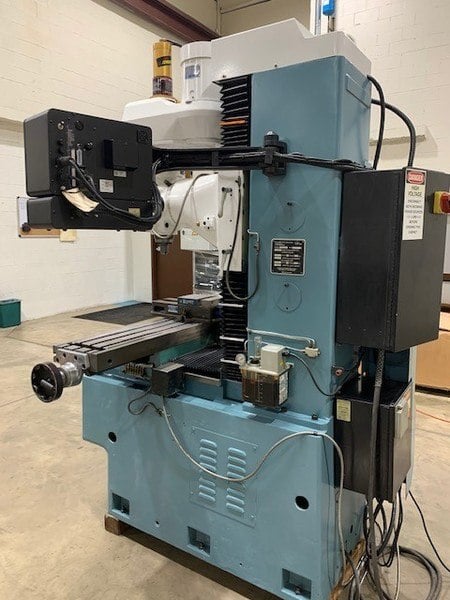

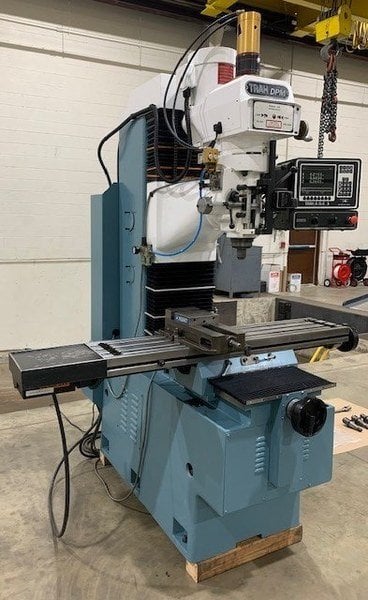

Trak Bed Mill | Southwestern Industries DPM – #50048

Click HERE if you have a Trak bed mill to sell.

Serial No. 99-4694
Year Built – 1999

SPECIFICATION:
Table Size…………10″ x 50″
X-Axis Table Travel…………31″
Y-Axis Saddle Travel…………17″
Z-Axis Vertical Head Travel…………23.5″
Quill Travel…………5″
Spindle Motor Drive…………3 HP
Spindle Taper…………#40 NST
Spindle Nose to Table…………0 – 24″
Spindle Center to Column Face…………17.3″
Head Swivel Left & Right…………90 Degrees
Spindle Speed Range…………70 – 4,200 RPM
(3) Quill Feed…………0.002, 0.004, 0.006 IPR
Workpiece Weight – Maximum…………1,320 Lbs.
Machine Dimensions – Approximate…………68″ x 64″ x 95″ (H)
Machine Weight – Approximate…………4,100 Lbs.

Trak bed millEQUIPPED WITH:

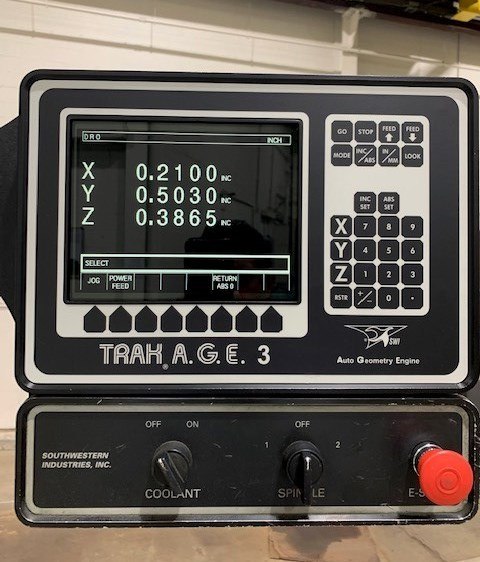

Trak A.G.E.3 Control – X,Y & Z CNC Control
Three-Axis Simultaneous Circular Interpolation Including Helical Interpolation, Linear Interpotation
Canned Cycles
In Manual Mode / 3-Axis DRO
RS232 Port & Floppy Disk Drive
Quill Digital Readout (Z is Head Up & Down Not Quill)
Square Box Ways, Automatic Lubrication System

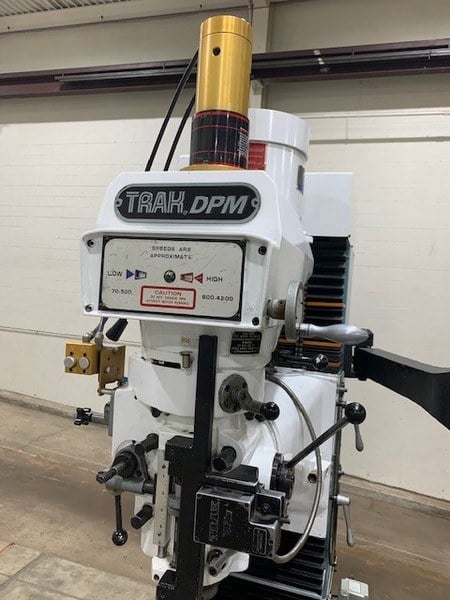

Maxi Torque-Rite Power Draw Bar

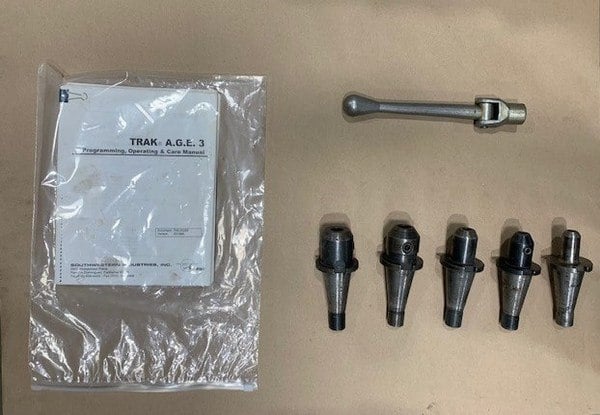

Manuals

*Preliminary Specifications Subject to Verification

Vertical knee mills like the Trak bed mill, also known as vertical milling machines or knee-type milling machines, are widely used in the metalworking industry for various milling operations. These machines are equipped with a vertically oriented spindle that is mounted on a knee, allowing the spindle to move up and down along the Z-axis.

Vertical knee mills offer versatility and flexibility in milling operations. They can perform tasks such as face milling, end milling, drilling, and boring on a variety of workpieces. The knee mechanism on a Trak bed mill provides precise vertical movement, allowing for accurate positioning of the milling cutter.

One of the key features of vertical knee mills is their ability to accommodate large workpieces due to their robust construction and wide work tables. They can handle both small and large-scale projects, making them suitable for diverse applications.

Vertical knee mills like the Trak bed mill are often equipped with digital readouts (DROs) or CNC control systems, enhancing precision and productivity. The DROs provide accurate measurement and positioning feedback, while CNC controls automate the milling process, allowing for complex operations and improved efficiency.
