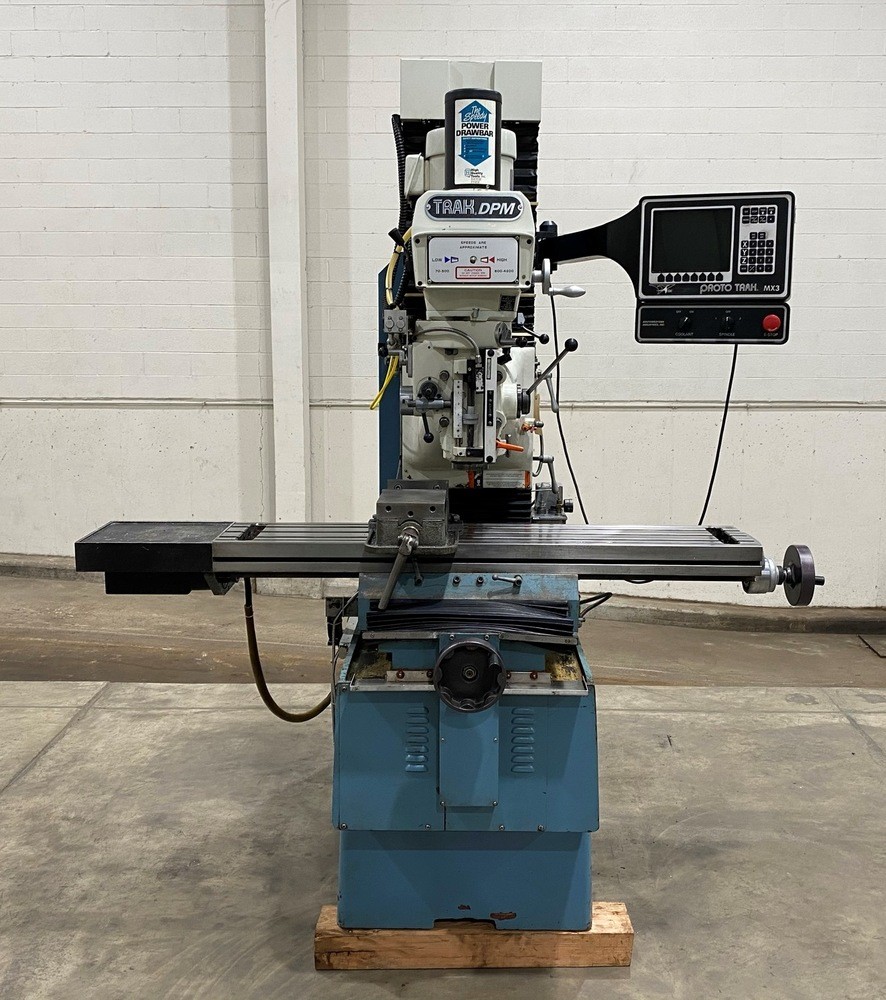

Southwestern Industries ProtoTRAK Mill - #50246

Serial No. 95-2061
Year Built - 1995/2015
(SWI Retrofit 2015 with New MX3 Controller and Glass Scales)

SPECIFICATION:
Table Size............10" x 50"
X-Axis Table Travel............31"
Y-Axis Saddle Travel............17"
Z-Axis Vertical Head Travel............23.5"
Quill Travel............5"
Spindle Motor Drive............3 HP
Spindle Taper............#40 NST
Spindle Nose to Table............0 - 24"
Spindle Center to Column Face............17.3"
Head Swivel Left & Right............90 Degrees
Spindle Speed Range............70 - 4,200 RPM
(3) Quill Feed............0.002, 0.004, 0.006 IPR
Electrics............220/3/60
Workpiece Weight - Maximum............1,320 Lbs.
Machine Dimensions - Approximate............68" x 64" x 95" (H)
Machine Weight - Approximate............4,100 Lbs.

EQUIPPED WITH:
Proto Trak MX3 (New 2015) - X,Y & Z CNC Control
Glass Scales
Three-Axis Simultaneous Circular Interpolation Including Helical
Interpolation, Linear Interpotation
Canned Cycles
Capable of Running in 2D Mode
In Manual Mode / 3-Axis DRO
DC Motors, Ball Screws
RS232 Port & Floppy Disk Drive
Quill Digital Readout (Z is Head Up & Down Not Quill)
Square Box Ways, Automatic Lubrication System

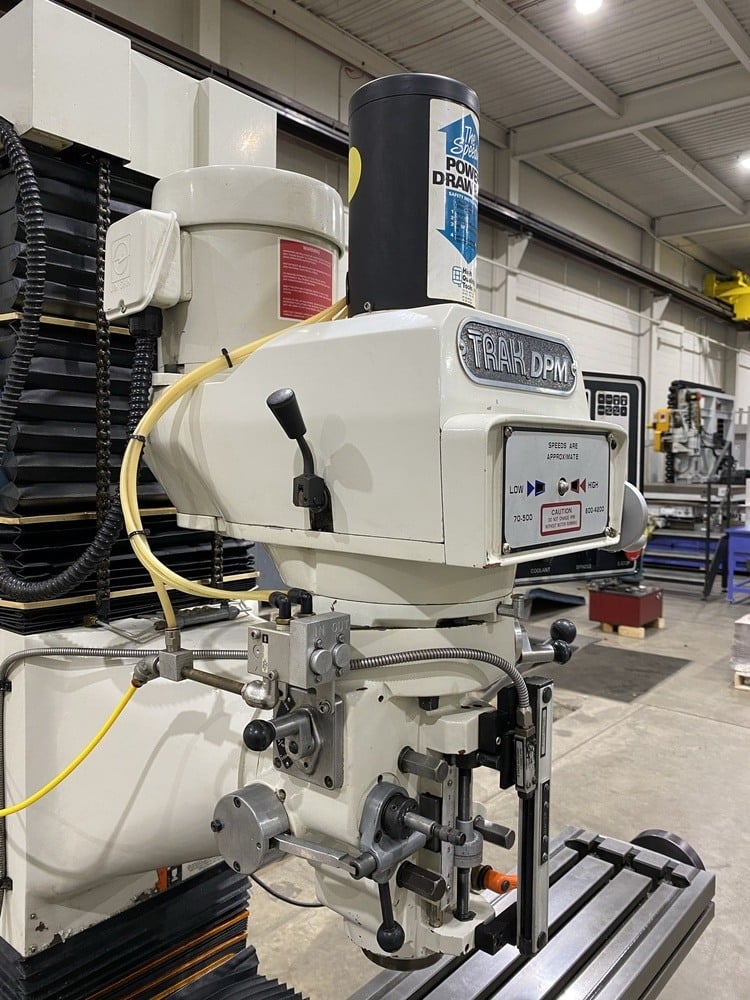

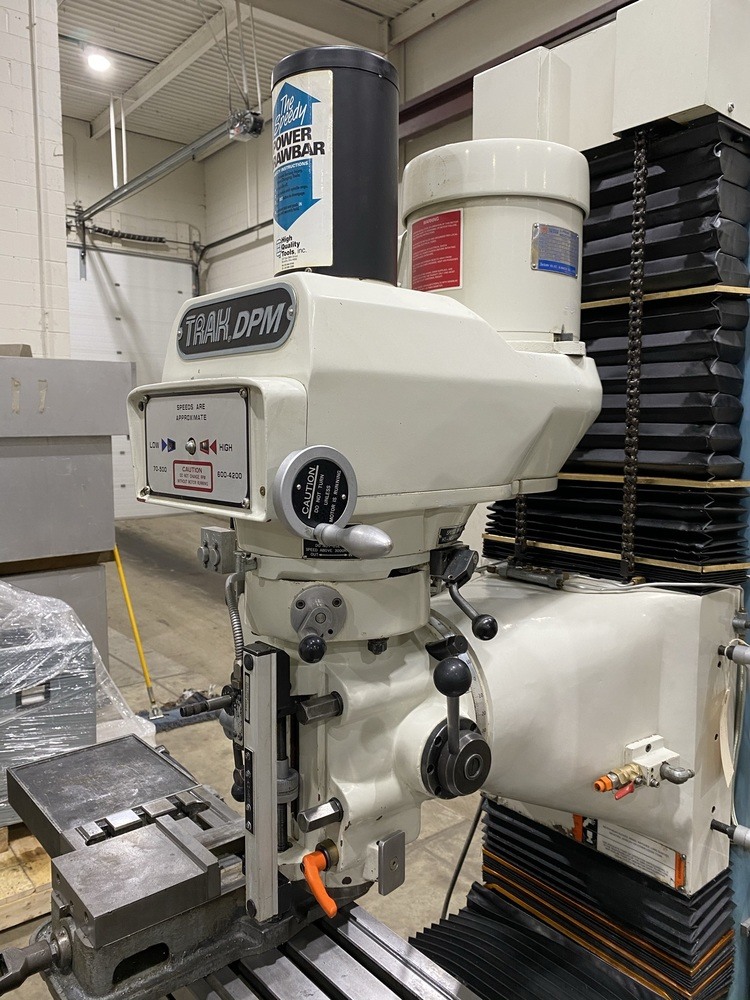

High-Quality Tools Inc. "The Speedy" Power Brawbar
Kurt Machining Vise
Uni-Mist Coolant and Lubrication System
Manuals

*Preliminary Specifications Subject to Verification
