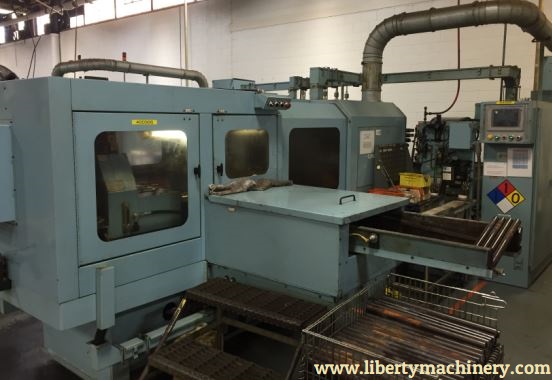

If you have a Unisig Entrust M-1146 Uni 12-6 Deep Hole Gundrill for sale, we hope you’ll follow this LINK and fill out a quick for sale form and we’ll contact you with a free quote.
Click HERE to check our current inventory for similar machines.
Serial No. M1146/1720
New – 2006
SPECIFICATIONS:
Drilling Diameter – Maximum…………1/2″
Length Of Stroke – Maximum…………30″
Drilling Work Envelope Utilizing Counter Rotational Spindles…………25″
Max. Part Length as Currently Configured (door opening/walking beam)…………19-1/2″
Number of Drilling Spindles…………6
Drilling Spindles (3) – Constant Torque…………7-1/2 HP
Spindle Speeds – Infinitely Variable…………Up to 4500 RPM Continuos
Number of Counter-Rotating Sub Spindles…………6
Number of Hydraulically Actuated Work Holding Heads…………6
Number of Positions on Whip Guide…………6
Floor Space…………22′(L-R) x 15′(F-B)
EQUIPPED WITH:
Counter-Rotation, Hydraulic Clamping, 6-Position Whip Guide.
Walking Beam, Currently Configured for 21″ Long Part.
Full Machine Enclosure.
Allen Bradley Control Logix 5560 M035E Sercos Interface PLC, Panel View Plus
1000 HMI Touch Screen Operators Interface, and Ethernet Hub.
Main Menu Drop Down Screens for: Drilling Parameters, Drilling Process
Control, Drilling Process Display, Set-up Drill Zero, Set-up Part Zero,
Set-up Coolant, Tool Life Management Screen, Part Programs, Jog Screen
Automation Screen, Cycle Time, Part Count, Auto Mode, Manual Mode and
Diagnostics.
PowerFlex Communications Control Net Adapters
Allen Bradley Ultra 3000 Servo Drive
(3) Allen Bradley PowerFlex 700 Spindle Drives
(3) Marathon Electric BlackMax Inverter Duty Spindle Drive Motors
(1) Allen Bradley PowerFlex 700S Counter Rotation Spindle Drive
Flow Monitors and Cooland Flow Digital Controllers for each Spindle.
(6) Oil Gear High Pressure Pumps.
Hi-Pressure Coolant System with Separate Reservoir for Clean & Dirty Coolant.
Duplex Bag Type Filters, Koolant Koolers Heat Exchanger for Coolant and
Magnetic Chip Conveyor. Donaldson Torit Mist Collector
Walking Beam Transfer:
Hydraulically Activated, Mechanically Synchronized Carriage Lifts Parts from
Stationary Vees and Indexes Workpiece through Machine. Walking Beam Conveyor
Door Configured For 19-1/2″ Part Length. However, Door may be Modified,
Allowing For Longer Parts. Banner Safety Light Curtains.
Books, Manuals and Drawings.
*Preliminary Specifications Unisig Entrust M-1146 Subject to Verifications.
Learn more about Gundrills HERE.
